A Comprehensive Guide to Scion xB Fuel Injectors (2004-2015)
Address rough idles, poor fuel economy, and misfires by understanding your xB's fuel injectors.
- You must identify your engine (1.5L for 2004-2006, 2.4L for 2008-2015) to get the correct injectors.
- Symptoms like rough idle, misfire codes (P030X), and a fuel smell often point to injector issues.
- Replacing injectors as a full set is recommended for balanced engine performance.
- Always replace the rubber O-rings and seals when installing new or cleaned injectors to prevent fuel leaks.
Understanding Your Scion xB's Fuel Injectors
The Scion xB was built with two different engines across its lifespan, and it's critical to know which one you have before buying parts. The first generation (2004-2006) uses a 1.5L 1NZ-FE engine, while the second generation (2008-2015) has a larger 2.4L 2AZ-FE engine. While both are known for reliability, their fuel injectors are not interchangeable.
First Generation (2004-2006) vs. Second Generation (2008-2015)
2004-2006 Scion xB (1.5L 1NZ-FE Engine): These injectors are generally very reliable. Most issues that arise are due to high mileage, leading to internal wear or clogging from fuel deposits. Symptoms often start as a subtle rough idle or a slight drop in fuel economy before progressing. 🎬 See how to diagnose symptoms and clean clogged fuel injectors. The OEM part number is typically 23250-21020.
🎬 Watch: Step-by-step fuel injector replacement for first-gen Scion xB models.2008-2015 Scion xB (2.4L 2AZ-FE Engine): This engine is also found in many other Toyota models like the Camry and RAV4. While the fuel injectors are robust, the 2AZ-FE engine itself is known for potential oil consumption issues. Over time, burning oil can lead to increased carbon deposits, which may foul the injector nozzles and affect their spray pattern. A common OEM part number for this generation is 23209-0H030 (which supersedes 23209-28080 and 23209-0H060).
Common Ordering Mistake
The most common mistake is ordering injectors for the wrong engine. Always confirm your vehicle's year and engine size (1.5L or 2.4L) before purchasing. The parts are physically different and will not work if mixed up.
Choosing the Right Aftermarket Fuel Injector
When replacing fuel injectors, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket parts. For the Scion xB, the original injectors are made by Denso.
- OEM (Denso): These are the highest quality and most expensive option, guaranteed to fit and perform exactly like the originals.

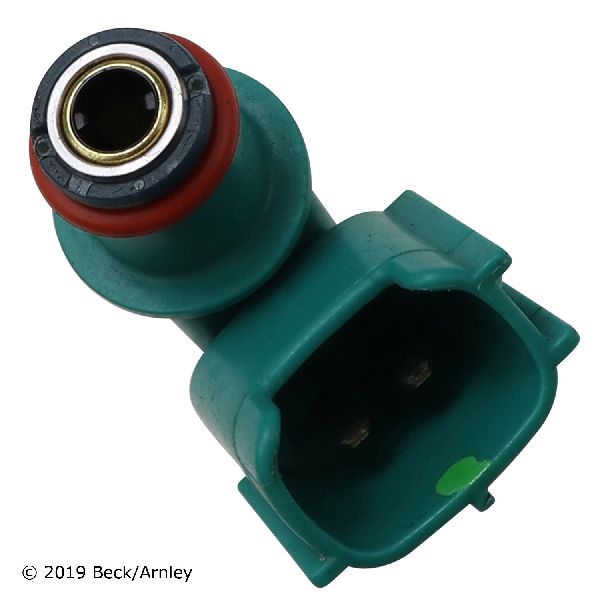

- Premium Aftermarket (e.g., Beck Arnley, Standard Motor Products): These brands offer a strong alternative. Beck Arnley is known for sourcing parts from OEM suppliers, so you might get a Denso injector in a Beck Arnley box. Standard Motor Products (SMP) is a reputable manufacturer that performs extensive testing on their components.

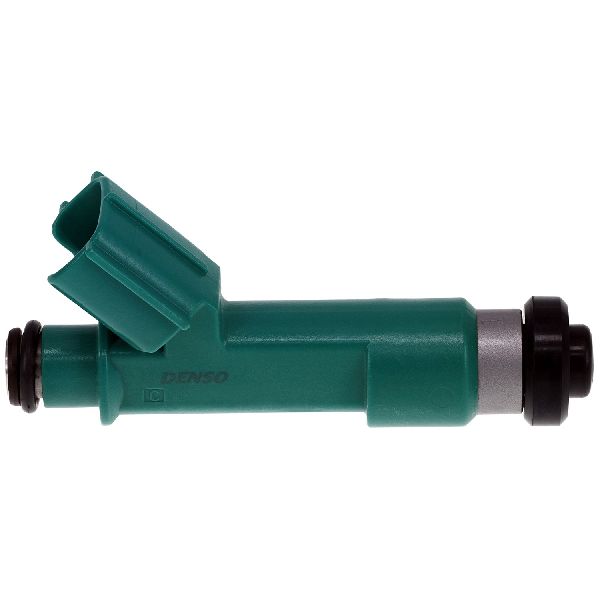

- Budget-Friendly (e.g., GBR Fuel Injection, store brands): These are often remanufactured units or new injectors from less-known manufacturers. While the price is attractive, quality can be inconsistent. Some owners have had success with remanufactured sets from reputable sellers, but others caution against it for long-term reliability.
Pro Tip: Replace as a Set
If one injector has failed due to age or clogging, the others are likely not far behind. To ensure balanced fuel delivery and a smooth-running engine, it is highly recommended to replace all four injectors at the same time. At a minimum, consider having your old injectors professionally cleaned and flow-tested.
| Part Type | Estimated Cost (Per Injector) | Notes |
|---|---|---|
| New OEM (Denso) | $160 - $235 | Highest quality and perfect fit. |
| New Aftermarket (Premium) | $56 - $176 | Brands like Beck Arnley and Standard Ignition offer good quality. |
| Remanufactured OEM | $25 - $70 | A cost-effective option if professionally cleaned and tested. |
| Shop Labor | $140 - $250 | Labor to replace all four injectors. |
Frequently Asked Questions
Are there any recalls for Scion xB fuel injectors?
No, there are no specific recalls issued by the NHTSA for fuel injector failure on the 2004-2015 Scion xB. There was a TSB (Technical Service Bulletin) in 2005 that mentioned a procedure for cleaning clogged injectors due to fuel quality concerns, but it was not a recall.
Can I clean my fuel injectors instead of replacing them?
Yes. For issues related to clogging, you can try using a high-quality fuel system cleaner additive first. For a more thorough solution, you can remove the injectors and send them to a specialist for ultrasonic cleaning and flow testing. This is often cheaper than buying new OEM injectors and can restore them to like-new performance.
Is replacing the fuel injectors a DIY job?
For a moderately skilled DIY mechanic, yes. The process involves depressurizing the fuel system, removing the fuel rail, swapping the injectors, and reassembling. It's crucial to work on a cold engine and have a fire extinguisher nearby as you will be working with gasoline. Always use new, lubricated O-rings to prevent dangerous fuel leaks.
Do I need to replace the O-rings and seals?
Absolutely. Every time an injector is removed, the rubber O-rings and seals should be replaced. These create a critical seal to prevent fuel from leaking out and air from leaking in. New injectors often come with them, but seal kits are also sold separately.
🎬 Watch: How to properly replace injector seals on your Scion.Helpful Videos
Technical Specifications
OEM Part Numbers: 23250-21020 23209-21020 23209-0H060 23209-0H030 23209-28080
Both generations use a multi-port fuel injection (MFI) system with a top-feed, Denso-style injector. The 1st Gen (1.5L) uses a 12-hole nozzle injector. The 2nd Gen (2.4L) uses a different style specific to the 2AZ-FE engine family.
