Scion xB Serpentine Belt Replacement Guide (2004-2015)
Stop the squealing and prevent a breakdown by choosing the right serpentine belt for your Scion xB.
- First, confirm if you have a 1st Gen (2004-2006, 1.5L, two belts) or 2nd Gen (2008-2015, 2.4L, one belt) xB.
- On 2nd Gen models, listen for rattling noises, which indicate the automatic tensioner should be replaced with the belt.
- On 1st Gen models, achieving the correct manual tension is key to preventing squeaks; consider replacing both drive belts at once.
- Premium aftermarket brands like Gates, Continental, and Dayco offer OEM quality and are a reliable choice for this part.
Is Your Scion xB a First or Second Generation?
Before buying a serpentine belt, you must know which Scion xB you have. The 2004-2015 model years cover two completely different engine and belt systems.
- 1st Generation (2004-2006): These models have a 1.5L 1NZ-FE engine. This system uses two separate belts: a main serpentine belt for the alternator, A/C, and water pump, and a smaller V-belt for the power steering pump. It has a manual tensioner, meaning the alternator must be physically moved to tighten the belt.
- 2nd Generation (2008-2015): These models have a larger 2.4L 2AZ-FE engine. This system uses a single serpentine belt for all accessories and has a modern, spring-loaded automatic tensioner that keeps the belt tight.
Mixing these up is the most common ordering mistake. Always confirm your vehicle's year and engine size before purchasing.
Signs of a Failing Serpentine Belt
A worn-out belt will give you several warning signs. Ignoring them can leave you stranded.
- Squealing or Chirping Noises: This is the most common symptom. The noise may be constant or happen only on cold starts, during sharp turns, or when you turn on the A/C.
- Visible Wear: Look at the belt. If you see cracks, splits, fraying, or missing ribs, it needs to be replaced immediately.
- Accessory Malfunctions: If your battery isn't charging (alternator), your power steering feels heavy, or the engine temperature rises quickly (water pump), the belt may have slipped or broken.
- Rattling or Grinding Sounds: On 2nd gen models, a rattling sound from the belt area often points to a failing automatic tensioner, not just the belt.
Known Issue: 1st Gen (2004-2006) Belt Squeal
The manual tensioning system on the 1.5L engine is known for being difficult to adjust correctly. This often leads to chronic belt squeal even with a new belt. The cause is usually improper tension or the alternator not sitting perfectly straight. Some owners install an aftermarket adjustable tensioner rod to make tightening the belt easier and more precise.
Known Issue: 2nd Gen (2008-2015) Tensioner Failure
The automatic belt tensioner on the 2.4L engine is a common failure point. If you hear a rattling or grinding noise, the tensioner assembly likely needs to be replaced along with the belt. Replacing the tensioner is a difficult job that often requires removing a motor mount and jacking up the engine for clearance.
Choosing the Right Aftermarket Serpentine Belt
For the Scion xB, a high-quality aftermarket belt offers the same performance as the OEM part for a better price. Premature belt failure is almost always caused by a bad tensioner or pulley, not the belt itself. Here’s how the available brands generally stack up.

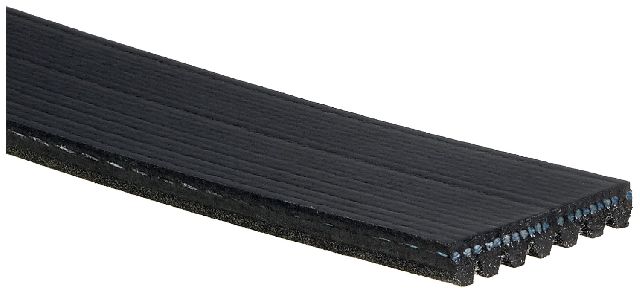

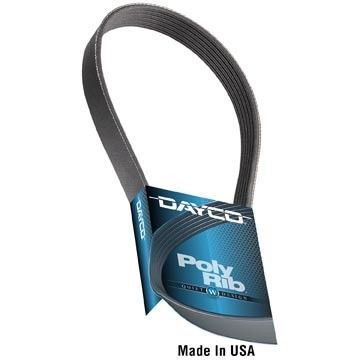

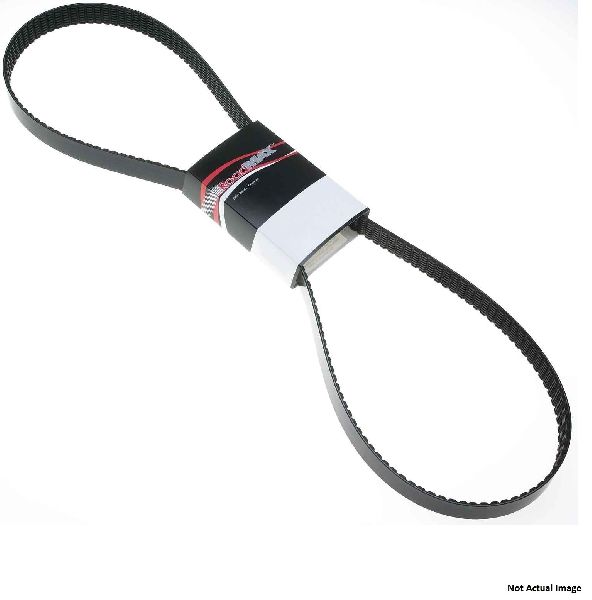

- Premium Brands (OEM Quality): Gates, Continental, Dayco, and INA are all excellent choices. They are often the original equipment manufacturers for many car brands. These belts are made from modern EPDM rubber that resists cracking and heat for a long service life.
- Value Brands: Brands like Skyward offer a budget-friendly option for replacement. While functional, they may not have the same longevity or noise-resistance as premium brands. They are a good choice for a low-cost repair, but a premium belt is recommended for long-term reliability.
Pro Tip: When replacing the belt, it's a good idea to also replace the tensioner and any idler pulleys, especially if your xB has over 80,000 miles or if you hear any rattling or grinding. On 2nd gen models, buying a kit that includes the belt, tensioner, and pulleys can save money and prevent future problems.
Serpentine Belt Replacement Cost for Scion xB
| Part | Estimated Cost |
|---|---|
| New Aftermarket Serpentine Belt | $14 - $68 |
| New OEM Serpentine Belt | $30 - $60 |
| Shop Labor (Belt Only) | $75 - $150 |
| Shop Labor (Belt & Tensioner - 2nd Gen) | $300 - $500+ |
Frequently Asked Questions
How often should I replace the serpentine belt on my Scion xB?
You should inspect the belt during every oil change. As a general rule, plan to replace it every 60,000 to 100,000 miles, or as soon as you notice any signs of wear like cracking, glazing, or fraying.
Can I replace the Scion xB serpentine belt myself?
1st Gen (2004-2006): Yes, this is a feasible DIY job but can be tricky. You will need basic hand tools, including wrenches and a pry bar to apply tension to the alternator. Getting the tension just right to avoid squealing is the hardest part.
2nd Gen (2008-2015): Yes, if you are only replacing the belt. You will need a serpentine belt tensioner tool to release the spring-loaded tensioner. 🎬 See how to use the tensioner tool on 2008-2015 models. If you need to replace the tensioner assembly itself, it is a much more difficult job that requires lifting the engine and is not recommended for beginners.
My 1st gen xB has two belts. Should I replace both?
Yes. The 2004-2006 xB has a main serpentine belt and a separate power steering belt. Since they are the same age and you already have access, it is highly recommended to replace both at the same time to save on future labor.

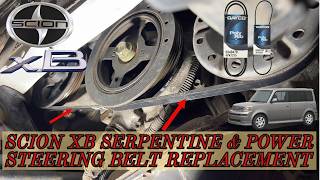

🎬 Watch: Step-by-step guide to replacing both belts on your 1st Gen.I replaced the belt on my 1st gen xB and it still squeaks. What's wrong?
This is a very common problem. The cause is almost always incorrect belt tension or a misaligned alternator. The belt might be too loose, or when you tightened it, the alternator may have twisted slightly, causing the belt to rub against the side of a pulley. Try re-tensioning the belt. If the problem persists, consider an aftermarket adjustable tensioner rod.
🎬 Watch this video to diagnose and fix persistent belt squealing.Helpful Videos
Technical Specifications
OEM Part Numbers: 90916-02556 90916-02599 90916-A2005 90916-02653
First Generation (2004-2006) uses a 4-rib main serpentine belt and a separate power steering V-belt. Second Generation (2008-2015) uses a single 7-rib serpentine belt.
