Scion xB Steering Tie Rod End Guide (2004-2015)
Everything Scion xB owners need to know about replacing worn steering tie rod ends.
- A bad tie rod end is a critical safety issue; do not drive if you suspect a failure.
- Symptoms include clunking noises, a loose steering wheel, and uneven tire wear.
- Always replace tie rod ends in pairs and get a professional wheel alignment immediately after.
- For 2008-2015 models, aftermarket inner tie rods are available, avoiding the need to replace the entire steering rack.
Is Your Scion xB's Steering Feeling Loose?
If your Scion xB has a lot of miles, you might notice the steering isn't as sharp as it used to be. A common cause for this is a worn-out outer steering tie rod end. This part takes a lot of abuse and is a normal wear-and-tear item. When the internal joint wears down, it creates play in the steering system, which you can feel in the steering wheel and see in your tire wear.
Symptoms of a Bad Tie Rod End on a Scion xB
A failing tie rod end gives several warnings. Ignoring them is not recommended, as a complete failure means a total loss of steering control on that wheel. Listen and feel for these signs:
- Clunking or Popping Sounds: You may hear a distinct clunk, pop, or knocking sound from the front of the car, especially when turning at low speeds. This is the sound of the worn joint moving around excessively.
- Loose or Vibrating Steering Wheel: The steering wheel might feel loose, have too much play, or vibrate. The vibration often gets worse as you speed up or turn.
- Vehicle Pulling or Wandering: A worn tie rod can throw off your wheel alignment, causing the car to pull to one side. You might find yourself constantly correcting the steering wheel to drive straight.
- Uneven Tire Wear: Check your front tires. If the inside or outside edge of a tire is wearing down much faster than the rest, it's a classic sign of a bad tie rod end causing an alignment problem.
Generation Note: Inner vs. Outer Tie Rods
This guide focuses on the outer tie rod end, which is easily replaceable on all 2004-2015 Scion xB models. 🎬 See this step-by-step outer tie rod replacement walkthrough There is also an inner tie rod. For the second-generation xB (2008-2015), Toyota does not sell the inner tie rod as a separate part; they only sell the entire steering rack assembly. However, aftermarket brands do offer replacement inner tie rods, making the repair much cheaper than buying a whole new rack.
Choosing the Right Aftermarket Tie Rod End
You don't need to buy a genuine Toyota part for this repair. The aftermarket offers a wide range of quality options. They generally fall into a few tiers.
| Brand Tier | Brands | Quality & Notes |
|---|---|---|
| Premium Brands | Moog, Delphi, Beck Arnley | These brands are often considered OE-quality or better. Moog is well-known for features like grease fittings that can extend the part's life if serviced. Delphi and Beck Arnley have strong reputations for reliability and fitting correctly. You can't go wrong choosing from this group. |
| Value Brands | ACDelco, QuickSteer, Suspensia | These brands provide a good balance of quality and price. ACDelco is GM's official parts brand but makes quality parts for many other vehicles. They are a solid choice for a daily driver without the premium price tag. |
| Economy Brands | Dorman, Mevotech | These brands are budget-friendly. While they can be a cost-effective solution, quality can sometimes be inconsistent compared to premium brands. They are a viable option if budget is the main concern. |
Pro Tip: It is highly recommended to replace tie rod ends in pairs. If the one on the driver's side has failed, the passenger's side has seen the same amount of wear and is likely not far behind. Replacing both at the same time saves you from doing the job twice and paying for a second wheel alignment.
Frequently Asked Questions (FAQ)
Do I need a wheel alignment after replacing a tie rod end?
Yes, absolutely. Replacing a tie rod end will always change your vehicle's wheel alignment. You must get a professional alignment done immediately after the repair. Failing to do so will cause poor handling and rapid, uneven tire wear.
Can I replace a Scion xB tie rod end myself?
Yes, this is a DIY-friendly job for someone with the right tools and mechanical experience. You will need a good socket set, wrenches, a jack and jack stands, and possibly a tie rod separator tool (or a large hammer) to break the old part free. Remember to count the number of turns it takes to remove the old tie rod end to get the new one close for the drive to the alignment shop.
Are there any recalls for the Scion xB tie rod ends?
No. There are no specific recalls or technical service bulletins (TSBs) from Toyota or the NHTSA for steering tie rod end failure on the 2004-2015 Scion xB. There have been recalls for other items like airbags and optional brake kits.

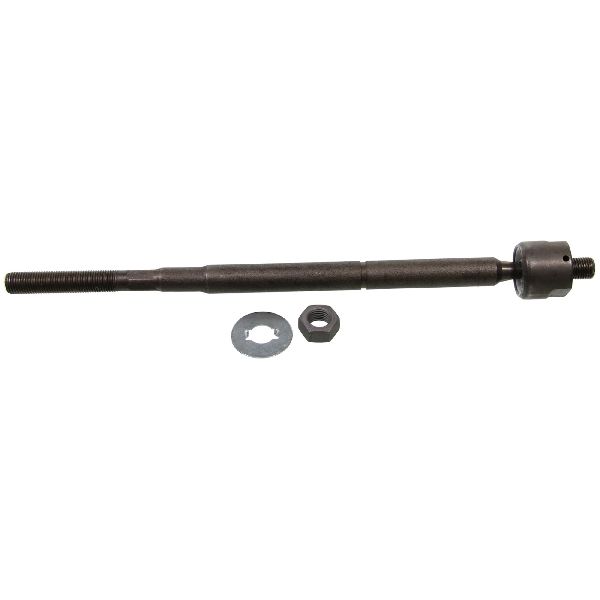

What's the difference between an inner and outer tie rod?
The outer tie rod connects to the steering knuckle at the wheel. The inner tie rod connects to the steering rack, hidden under a rubber boot. Both work together to turn the wheels. The outer tie rod end fails more frequently as it is more exposed to the elements and has a wider range of motion.
Helpful Videos
Technical Specifications
OEM Part Numbers: 45046-19415 45047-19215 45046-19175
The Scion xB uses a standard ball-and-socket outer tie rod end. The first generation (2004-2006) and second generation (2008-2015) use different part numbers. An alignment is mandatory after replacement.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
