Cadillac SRX (2004-2016) Engine Intake Manifold Gasket Replacement Guide
Leaking gaskets can cause rough idling and engine overheating—here’s how to choose the right replacement for your SRX.
- You must identify your SRX's specific engine (e.g., 3.6L V6, 4.6L V8) before ordering, as gaskets vary significantly by engine and year.
- A rough idle and hissing sound are classic signs of a vacuum leak, while coolant loss and overheating point to a more critical gasket failure.
- Premium aftermarket brands like Fel-Pro and Victor Reinz are trusted by professionals and can be an upgrade over the original parts.
- This is a moderately difficult job for a DIYer; if you are not comfortable, expect to pay a shop for 3-4 hours of labor.
Is This Guide For My SRX?
This guide covers all Cadillac SRX models from 2004 to 2016. It is very important to know which engine your SRX has before buying parts. The gaskets are not interchangeable.
- First Generation (2004-2009): These models came with a 3.6L V6 (LY7) or a 4.6L Northstar V8 (LH2). Gaskets for these engines often seal both air and engine coolant.
- Second Generation (2010-2016): These models used a 3.0L V6 (LF1), a 2.8L Turbo V6 (LP9), or a 3.6L V6 (LFX). The intake gaskets on these engines primarily seal air, as coolant does not always pass through the intake manifold.
Pro Tip: Your vehicle's 8th VIN digit can help identify the engine. For example, on many GM vehicles, the 3.6L LY7 V6 is VIN code '7', while the 4.6L Northstar V8 is VIN code 'A'. Always confirm with your vehicle's specifications.
Signs of a Failing Intake Manifold Gasket
When an intake gasket fails, it can create several noticeable problems. The symptoms depend on whether it's a vacuum leak, a coolant leak, or both.
- Rough or Unstable Idle: This is the most common symptom of a vacuum leak. Your engine may shake or vibrate at a stoplight because extra, unmeasured air is throwing off the engine's computer.
- Hissing or Sucking Noises: You may hear a distinct hissing sound coming from the engine bay, which is air being sucked through a break in the gasket.
- Engine Overheating: On SRX models with coolant running through the intake, a gasket leak can cause a loss of coolant, leading to overheating. This is a serious symptom that requires immediate attention.
- Visible Coolant Leaks: You might see coolant (typically orange or green) dripping from the top of the engine, near where the intake manifold meets the cylinder heads.
- Check Engine Light: A vacuum leak will eventually trigger a Check Engine Light. Common codes include P0171 (System Too Lean Bank 1), P0174 (System Too Lean Bank 2), and P0300 (Random/Multiple Cylinder Misfire).
Choosing the Right Aftermarket Gasket Set
You do not need to buy parts from a dealer to get a quality seal. Aftermarket brands often provide excellent quality, and some have even improved on the original factory designs. Here’s a breakdown of common brands.
| Brand Tier | Brands | Quality & Notes |
|---|---|---|
| OEM / Premium Aftermarket | ACDelco, Fel-Pro, Victor Reinz | ACDelco is the original GM parts supplier, offering a direct fit and factory performance. Fel-Pro is a top-tier aftermarket brand, highly respected by mechanics. Their PermaDryPlus gaskets often feature a steel carrier, which is an upgrade over some original plastic designs. Victor Reinz is another OEM-quality supplier known for excellent materials that resist modern coolants and heat. |
| Value Aftermarket | Apex Gaskets | Apex is a budget-friendly option. While some users report success with these gaskets for less critical jobs, most professional mechanics prefer to use premium brands for a job like this to ensure a long-lasting seal and avoid repeat labor. |
Known Issues, Recalls, and Service Bulletins
As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from GM or the NHTSA for failing intake manifold gaskets on the 2004-2016 Cadillac SRX. Failures are typically due to normal wear and tear from age, heat cycles, and exposure to fluids.
Frequently Asked Questions (FAQ)
Can I reuse my old intake manifold gaskets?
No. Intake manifold gaskets are a one-time-use part. They are designed to crush and deform to create a perfect seal. Once removed, they will not seal properly again and will cause immediate leaks.
What else should I replace during this job?
Since you'll already have the intake manifold off, it's a good time to inspect and replace other related parts. Consider replacing the throttle body gasket and any other small plenum gaskets. It's also a great time to clean the throttle body and intake ports of carbon buildup. If your SRX has high mileage, replacing spark plugs and ignition coils might be convenient while you have easier access.
Is a coolant leak from the intake gasket serious?
Yes, it is very serious. An external leak can lead to overheating and leave you stranded. An internal leak can allow coolant to mix with your engine oil, creating a milky sludge that destroys engine bearings and can lead to complete engine failure. If you suspect a coolant leak, address it immediately.
What is the difference between upper and lower intake gaskets?

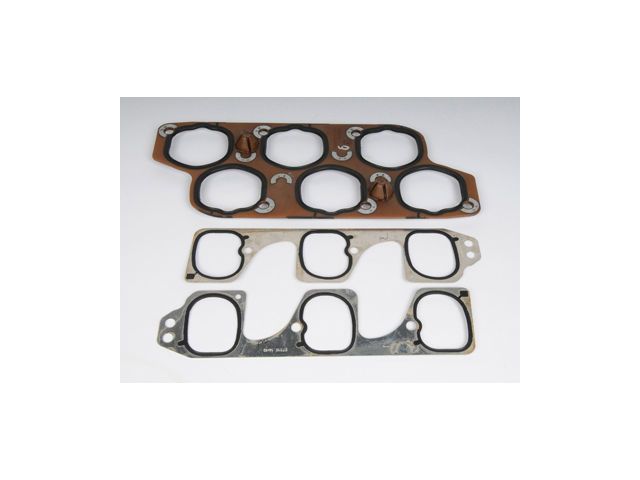

Many V-style engines, like those in the SRX, have a two-piece intake manifold. The 'lower' gaskets seal the manifold to the cylinder heads. The 'upper' or 'plenum' gasket seals the two halves of the intake manifold together. If you are only replacing the lower gaskets, you will still need to remove the upper plenum, so it is best practice to replace the plenum gasket at the same time. Gasket sets often include both.
Technical Specifications
OEM Part Numbers: 12673301 12603028 12598447
Gasket material varies by brand and application, including multi-layered steel (MLS), rubber molded on a plastic or steel carrier, and composite paper. Premium aftermarket gaskets often feature improved materials to resist modern coolants and heat degradation.
