Cadillac SRX 2004-2016 Oxygen Sensor: A Mechanic's Guide to Replacement
Address check engine lights and restore fuel economy by understanding how to choose the right oxygen sensor for your specific SRX.
- Verify the exact sensor needed for your SRX's year and engine (V6/V8, Gen 1/Gen 2).
- A P0420 code is often caused by a bad downstream O2 sensor, not a failed catalytic converter.
- For reliability, stick with OEM/OES brands like ACDelco or Denso.
- Be prepared for a difficult replacement on sensors located at the rear of the engine near the firewall.
Is Your SRX Oxygen Sensor Failing?
A bad oxygen sensor is a common issue that will trigger your check engine light. Ignoring it can lead to poor engine performance, bad gas mileage, and eventually, damage to more expensive parts like the catalytic converter. Common signs of failure include a noticeable drop in fuel economy, a rough idle, engine hesitation, and a check engine light with codes like P0420, P0171, or P0174. In some cases, you might smell rotten eggs or see black smoke from the exhaust.
Two Generations: Getting the Right Part is Critical
The 2004-2016 model years cover two different generations of the Cadillac SRX, and they do not use the same parts. It is essential to buy the sensor that matches your specific year and engine.
- First Generation (2004-2009): These models were offered with a V6 or a Northstar V8 engine. The sensors are specific to each engine.
- Second Generation (2010-2016): These models used different V6 engines (3.0L or 3.6L). The sensors for these are not interchangeable with the first generation.
Always verify the part fitment for your exact year, model, and engine before ordering. Using the wrong sensor can cause continued performance issues and check engine lights.
A Note on Replacement Difficulty
While some oxygen sensors on the SRX are easy to access, others are notoriously difficult. The upstream sensor on the rear cylinder bank (Bank 1), near the firewall, is especially challenging to reach and often requires working blindly. Rust can make these sensors extremely difficult to remove. While a DIY replacement is possible, be prepared for a tough job on the harder-to-reach sensors. Some owners have had to take their vehicle to a shop after failing to remove a seized sensor.
Choosing the Right Aftermarket Oxygen Sensor
Not all aftermarket brands are created equal. For a critical part like an oxygen sensor, quality matters. Here’s a breakdown of available brands to help you decide.
Tier 1: OEM and OES Brands
These brands are either the original part manufacturer for GM or are known for equivalent quality. They are the most reliable and recommended choice.
- ACDelco: This is GM's own parts brand and the original equipment in your SRX. Choosing ACDelco guarantees a perfect fit and original performance.
- Denso: A top-tier OEM supplier for many carmakers, Denso sensors are highly respected for their quality and reliability, often considered equal to or even better than other OEM brands by enthusiasts.
Tier 2: Reputable Aftermarket Brands
These are well-known brands with a long history of making quality parts. They offer a good balance of performance and price.
- Bosch: As the inventor of the automotive oxygen sensor, Bosch has a strong reputation for quality and innovation. They are a leading supplier and a solid choice for replacement.
- NGK (NTK): NTK is the sensor division of NGK, a trusted name in ignition systems and a supplier to many automakers.
- Delphi: Another major OEM supplier that produces reliable aftermarket parts.
Tier 3: Budget-Friendly Brands
These brands offer a more affordable solution. They can be a good option if budget is the primary concern, but may not offer the same longevity as premium brands.
- Walker Products, Spectra, DriveWire: These brands provide direct-fit replacements at a lower cost.
Pro Tip: Use the Right Tools
A special tool called an oxygen sensor socket is essential for this job. It has a slot for the wire to pass through, allowing you to fit the socket over the sensor. These sockets typically come in a 22mm or 7/8" size. Soaking the old sensor with penetrating oil before trying to remove it can also make the job much easier, especially on high-mileage vehicles with rust.
Frequently Asked Questions (FAQ)
How many oxygen sensors does a Cadillac SRX have?
All 2004-2016 Cadillac SRX models with V6 or V8 engines have four oxygen sensors: two upstream (before the catalytic converter) and two downstream (after the catalytic converter).
My scanner shows code P0420. Is my catalytic converter bad?
Not necessarily. A P0420 code (Catalyst System Efficiency Below Threshold) is often caused by a failing downstream (Bank 1, Sensor 2) oxygen sensor, not the converter itself. Since the sensor is much cheaper than the converter, it is common practice to replace the downstream O2 sensor first, clear the codes, and see if the problem returns.
Can I replace just one bad oxygen sensor?
Yes, you can replace only the sensor that has failed. However, oxygen sensors age over time. If your vehicle has high mileage, the other sensors may not be far from failing. Some mechanics recommend replacing them in pairs (both upstream or both downstream) to ensure balanced performance.
Is there a recall on the Cadillac SRX oxygen sensor?
No, there are no specific recalls issued by the NHTSA for oxygen sensor failure on the 2004-2016 Cadillac SRX. While many TSBs exist for the SRX, none point to a universal, known defect with the O2 sensors themselves outside of normal wear and tear.

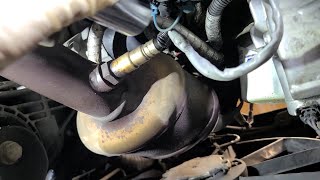

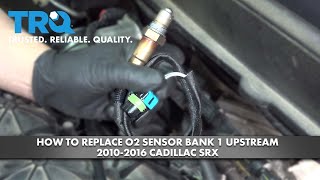

Helpful Videos
Technical Specifications
Your SRX has four heated oxygen sensors. Two are upstream (air/fuel ratio) and two are downstream (catalyst monitoring). Part numbers vary significantly by year, engine, and sensor location. Always confirm fitment with your vehicle's VIN.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
