BMW X3 (2004-2017) Engine Oil Pressure Switch: Symptoms and Replacement Guide
A red oil light on your dash is serious; here’s how to know if it’s a simple switch or a major engine problem.
- Always treat a red oil pressure light as a critical emergency. Stop driving immediately.
- A common failure is the switch itself leaking oil or sending false signals; check this before assuming a major engine issue.
- On many X3s, the switch is easy to access on the oil filter housing and is a simple DIY replacement.
- Choosing a quality aftermarket brand like Hella, Vemo, or Febi is a reliable and cost-effective alternative to a Genuine BMW part.
Understanding the Red Oil Light in Your X3
Seeing the red oil pressure warning light illuminate on your dashboard is a cause for immediate concern. It means one of two things: either your engine has dangerously low oil pressure, or the sensor that detects the pressure has failed. You must stop the car in a safe place immediately and turn off the engine to prevent potential catastrophic damage. Continuing to drive with genuine low oil pressure can destroy an engine in minutes.
Stop Driving Immediately
An illuminated red oil pressure light is not a suggestion. Always treat it as a critical warning. Pull over safely, shut off the engine, and investigate the cause. Never assume it's just a faulty sensor without verification.
Common Symptoms of a Failing Oil Pressure Switch
A faulty oil pressure switch can mimic the signs of a major engine problem, making diagnosis key. Here are the most common symptoms:
🎬 Watch: Don't ignore these 9 warning signs of a bad sensor.- Red Oil Light On, But Oil Level is Full: This is the most common sign of a failed switch. After safely stopping and letting the engine cool, you check the oil level and find it's correct. This points to the sensor giving a false reading.
- Flickering Oil Light: The oil light may flicker, especially at idle or as engine RPMs change. This can indicate the switch is failing intermittently.
- Visible Oil Leak from the Sensor: The switch itself can develop leaks. You may see oil seeping from the sensor's body or its electrical connector. This is a common failure mode and a clear sign the switch needs replacement.
- Inability to Check Oil Level Electronically: On F25 generation X3s without a physical dipstick, a faulty oil pressure sensor can prevent the electronic oil level measurement system from working, leaving you blind to your actual oil level.
Choosing the Right Aftermarket Oil Pressure Switch
When replacing the oil pressure switch, you don't necessarily need to buy a Genuine BMW part. Several reputable aftermarket brands produce quality replacements. They can be grouped into tiers based on quality and price.
Pro Tip: Many aftermarket brands are also Original Equipment Manufacturers (OEMs), meaning they supply parts to BMW directly. These parts are often identical to the Genuine BMW part, just without the BMW logo and at a lower price.
Brand Quality Tiers
Tier 1: OEM & Premium Aftermarket
- Hella, Vemo: These brands are often OEM suppliers to BMW and other German manufacturers. Their quality is generally considered on par with Genuine parts and they are a trusted choice for critical sensors.
- Febi Bilstein: Generally a reliable brand for many BMW parts, offering a good balance of quality and price. However, for simple electronic parts like switches, some forum users suggest quality can be inconsistent compared to their mechanical components.
Tier 2: Standard Aftermarket
- Beck Arnley, Standard Ignition (SMP): These are well-known aftermarket brands that source parts from various manufacturers. They generally offer reliable, OE-form-and-function parts that meet or exceed original specifications.
Tier 3: Value Brands
- URO Parts, Global Parts, True Tech: These brands offer the most budget-friendly options. While URO Parts has improved its quality over the years and even offers a "URO Premium" line for some parts, their standard components are sometimes viewed as a gamble. For a low-cost, non-critical sensor, they can be an acceptable choice, but for a part that can cause this much worry, sticking to a higher-tier brand is often recommended by enthusiasts.
Cost of Replacing an Engine Oil Pressure Switch
The oil pressure switch is an inexpensive part, and the replacement is straightforward, making this a relatively low-cost repair.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pressure Switch | $7 - $66 |
| Shop Labor | $75 - $150 |
| Total Estimated Cost (DIY) | $7 - $66 |
| Total Estimated Cost (Shop) | $82 - $216 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on a BMW X3?

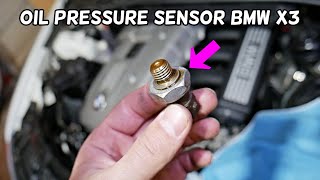

On most 6-cylinder engines used in the 2004-2017 X3 (like the N52), the oil pressure switch is located on the oil filter housing, which is at the front-left side of the engine. It is a single sensor screwed into the housing with an electrical connector attached.
🎬 See this walkthrough for the X3 sensor location and replacement.Is it difficult to replace the oil pressure switch myself?
No, this is a very feasible DIY job for most owners. Access is generally good after removing the top engine cover. The job requires disconnecting the electrical plug, and then unscrewing the old sensor with a 24mm deep socket or wrench. Be prepared for a small amount of oil to spill out when you remove the old sensor. Always use a new sealing ring with the new switch.
🎬 Watch: How to replace the switch on N52 and N55 engines.Are there any recalls for the oil pressure switch on the 2004-2017 X3?
Searches of the NHTSA database did not find any specific recalls for the oil pressure switch itself within this model year range. There have been BMW recalls related to oil pumps or engine software that could affect oil pressure, but these do not target the switch as the failing component.
Should I use an OEM or aftermarket switch?
For a simple switch like this, a high-quality aftermarket part from an OEM supplier like Hella or Vemo, or a reputable brand like Febi or Standard Ignition, is a perfectly acceptable and cost-effective choice. Given the low cost of even the best aftermarket options, there is little reason to opt for the cheapest value brands where quality can be inconsistent.
What if the new switch doesn't fix the oil light?
If you replace the switch and the red oil light remains on, you may have a more serious problem. This could include a wiring issue to the sensor, a failing oil pump, clogged oil passages, or worn engine bearings causing a genuine loss of pressure. At this point, the vehicle should be professionally diagnosed by a qualified mechanic with a mechanical pressure gauge to confirm the actual engine oil pressure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12617568480 12618611273 12611710509 12617620512 12612367061
Typically a single-pin electrical connector, M12 or M10 thread, and requires a 24mm deep socket for removal/installation.
