Solving Freightliner Sprinter 3500 (2004-2018) Transmission Conductor Plate Failures
If your Sprinter is stuck in limp mode or shifting harshly, the automatic transmission conductor plate is a common cause.
- The most common symptom of failure is the transmission going into 'limp mode' and getting stuck in 2nd gear.
- Always replace the transmission filter, pan gasket, and the 13-pin electrical connector when replacing the conductor plate.
- Aftermarket parts are cheaper but carry a higher risk of failure; genuine OEM parts are recommended for reliability.
- You must clear the transmission fault codes with a scanner after installation, or the vehicle will remain in limp mode.
Is Your Sprinter 3500 Experiencing Transmission Problems?
For owners of the 2004-2018 Freightliner Sprinter 3500, which uses the robust Mercedes-Benz 5-speed automatic transmission, sudden shifting problems can bring your work to a halt. A common point of failure within this transmission is the conductor plate. This component, made of polymer, can become brittle over time, and the delicate electronic sensors embedded in it can fail, leading to a variety of frustrating symptoms.
Top 5 Symptoms of a Failing Conductor Plate
- Limp Mode: The most frequent symptom is the transmission entering "limp mode," where it gets stuck in second gear to prevent further damage. This is a protective measure triggered by the transmission controller when it detects a serious fault, often from a failed speed sensor on the conductor plate. 🎬 Watch: How to diagnose and repair a transmission in limp mode
- Harsh or Erratic Shifting: You may experience banging into gear, delayed shifts, or a jerky feeling as the transmission struggles to change gears smoothly.
- Transmission Slipping: The engine may rev up, but the van doesn't accelerate accordingly, as if the gear isn't fully engaged.
- Warning Lights: A Check Engine Light or a specific transmission warning light will likely illuminate on your dashboard.
- Fault Codes: A diagnostic scan will often show codes related to speed sensor failures, such as P0715 (Input/Turbine Speed Sensor Circuit Malfunction) or P2767.
The Leaking 13-Pin Connector
A very common issue on the 722.6 transmission is a leak from the 13-pin electrical connector where the wiring harness plugs into the transmission. The O-rings on this connector fail, allowing transmission fluid to seep out. This fluid can travel up the wiring harness and damage the main Transmission Control Module (TCM). It is critical to replace this connector and its O-rings whenever you replace the conductor plate.
Choosing the Right Aftermarket Conductor Plate
When shopping for a new conductor plate, you'll find OEM and several aftermarket options. The quality and price can vary significantly.
- OEM (Original Equipment Manufacturer): Made by Mercedes-Benz, this is the benchmark for quality and longevity. Forum members and mechanics often recommend sticking with OEM for this critical part to avoid having to do the job twice. You may find genuine parts online with the Mercedes logo scratched off to be sold through non-dealer channels.

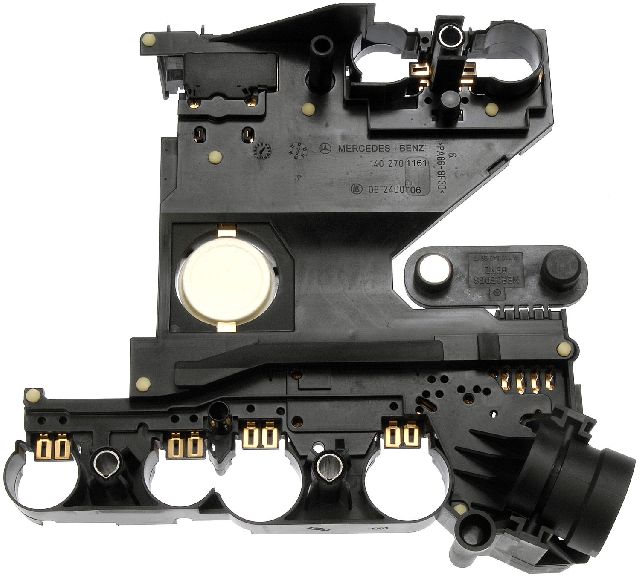

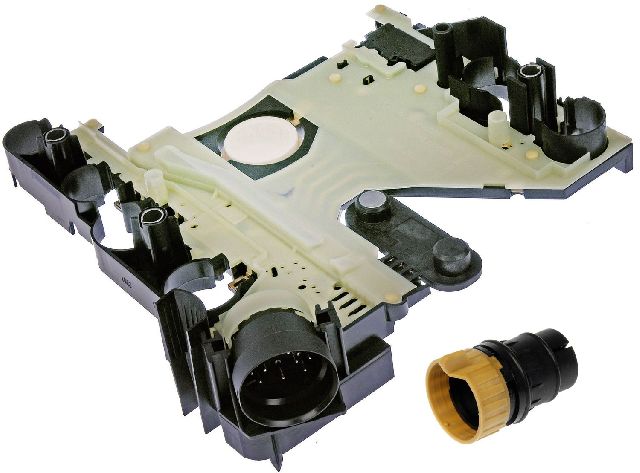

- Premium Aftermarket (e.g., Dorman): Brands like Dorman offer a more affordable alternative. However, owner experiences are mixed; some report perfect function, while others have seen these parts fail prematurely. It can be a gamble.

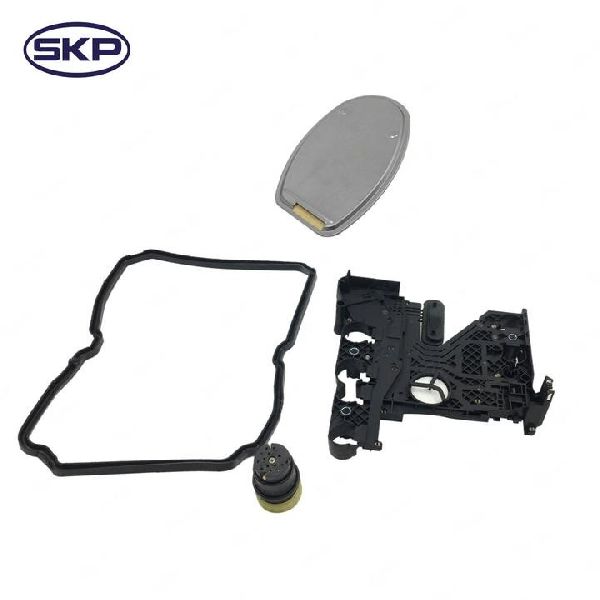

- Budget Aftermarket (e.g., Skyward, Replacement): These are the most cost-effective options. While they claim to meet original specifications, they are best suited for those on a tight budget who are willing to accept a higher risk of potential failure compared to OEM.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Conductor Plate | $300 - $550 |
| New Aftermarket Conductor Plate | $154 - $266 |
| Shop Labor | $450 - $700 |
Pro Tip: Service the Solenoids
While the valve body is out, it's a great time to remove, clean, and inspect the six shift solenoids that plug into the conductor plate. Debris can sometimes cause a solenoid to stick, leading to shifting issues that might be mistaken for a bad conductor plate. Cleaning them adds minimal time to the job.
🎬 See this walkthrough for conductor plate replacement and solenoid serviceFrequently Asked Questions (FAQ)
Is replacing the conductor plate a DIY job?

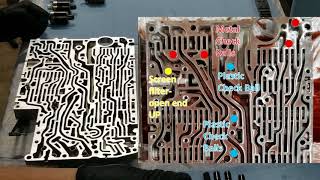

For an experienced DIY mechanic, this is a manageable job. It involves draining the fluid, dropping the pan and valve body, but not the entire transmission. However, it requires care, cleanliness, and a good torque wrench to avoid stripping the aluminum threads 🎬 Watch: A timelapse of a complete valve body rebuild and cleaning in the transmission case.
Are there any recalls for this part?
There are no specific NHTSA recalls for the automatic transmission conductor plate on the 2004-2018 Sprinter 3500. However, be aware that other issues, like wiring harness chafing, can sometimes cause similar shifting problems.
Do I need to program the new conductor plate?
No. For the 5-speed 722.6 transmission in this year range, the conductor plate itself does not require programming. However, after the new part is installed, you MUST use a compatible diagnostic scanner to clear the fault codes from the Transmission Control Module (TCM); otherwise, it will remain in limp mode.
What else should I replace at the same time?
You should always replace the transmission filter, pan gasket, and the 13-pin electrical connector plug as part of this job. You will also need to refill the transmission with the correct fluid (MB 236.14 specification).
Helpful Videos
Technical Specifications
OEM Part Numbers: 1402701161 1402700861 1402700761 1402700561
Fits 722.6 (NAG1) 5-Speed Automatic Transmission. Includes integrated input and output speed sensors.
