Chevrolet Aveo Windshield Washer Pump Replacement Guide (2004-2020)
If your Aveo's washers are weak or dead, this guide explains what you need to know before replacing the pump.
- A failed washer pump is a common issue, with symptoms like no spray or a silent motor.
- The replacement is DIY-friendly and can be done in about an hour by accessing the pump through the driver's side wheel well.
- For this part, a new aftermarket pump from a brand like Trico offers a reliable and cost-effective solution.
- Hatchback models have a separate pump/outlet for the rear window; if only one fails, you only need to replace that specific pump.
Is Your Windshield Washer Pump Failing?
A broken windshield washer pump on a Chevrolet Aveo is a common issue, especially as the car ages. The symptoms are usually straightforward. If you activate the washers and nothing happens, the pump is a likely suspect. 🎬 Learn how to troubleshoot a failing washer pump motor. This guide will help you diagnose the problem and choose the right replacement part.
Common Symptoms of a Bad Washer Pump
- No Fluid Spray: You pull the lever, the wipers move, but no fluid sprays on the glass.
- Weak Spray: The fluid barely reaches the windshield or just trickles out of the nozzles. This can indicate a dying pump or a clog in the system.
- Pump is Silent: You don't hear the familiar humming or buzzing sound of the pump motor when you try to use the washers.
- Only Front or Rear Works: On hatchback models, if only one set of washers (front or back) works, it points to a failure of that specific pump.
Pro Tip: Before buying a new pump, check the basics. Make sure your washer fluid reservoir is full. Also, check the fuse for the washer system. If the fuse is good and you hear no sound from the pump, it has likely failed. If you hear the pump humming but get no fluid, you could have a clog or a leak in the lines.
🎬 See how to diagnose your entire washer system for issues.Choosing a New Aftermarket Pump
For the 2004-2011 Chevrolet Aveo, the washer pump is a simple and accessible part. You have a choice between original equipment (OEM) parts from a dealer and new aftermarket parts.
- OEM Parts: These are the same parts your vehicle was built with, often branded as ACDelco for GM vehicles. They guarantee a perfect fit but typically cost more.
- New Aftermarket Parts: Brands like Trico produce replacement parts designed to meet or exceed original specifications. For a straightforward component like a washer pump, a quality aftermarket part offers excellent value and reliability without the high cost of an OEM part. Given the age of most Aveos, an aftermarket pump is the most common and practical repair choice.
Cost to Replace a Chevrolet Aveo Washer Pump
The cost is low, especially if you do it yourself. The pump is located behind the front driver's side wheel well liner.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Trico) | $35.01 |
| New OEM | $44 - $70 |
| Shop Labor | $61 - $90 |
| Total Professional Replacement | $105 - $160 |
Cost estimates are based on national averages and may vary by location and supplier.
Warning: Before you remove the old pump from the reservoir, be prepared to catch the remaining washer fluid. It will drain out of the pump opening once it's removed. Have a bucket or container ready.
Frequently Asked Questions
Is it hard to replace the Aveo's washer pump?
No, it is a job most DIYers can handle. The main steps involve safely jacking up the car, removing the driver's side front wheel, and taking off part of the plastic fender liner to get access. The pump itself just pulls out and the new one pushes in. The total time is about an hour.

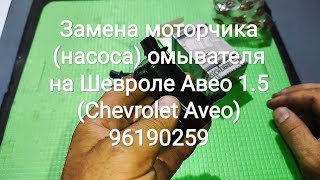

🎬 Watch this step-by-step walkthrough of the pump replacement process.Where is the windshield washer pump on a Chevy Aveo?
It is mounted to the bottom of the windshield washer fluid reservoir. The reservoir is located in the engine bay, but the pump is accessed from the driver's side front wheel well.
Why does only my rear (or front) washer work on my Aveo hatchback?
Hatchback models use a separate pump or outlet for the rear window. If one stops working, it means that specific pump has failed. You will need to identify and replace the correct pump (they are usually mounted next to each other on the reservoir).
Is there a recall on the Chevrolet Aveo washer pump?
No, there are no known recalls or widespread technical service bulletins (TSBs) for the windshield washer pump on the 2004-2011 Chevrolet Aveo. A recall existed for the 2012 Chevrolet Sonic (the Aveo's successor) for a washer hose that could detach, but this did not involve the pump itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: 95991492
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
