A Guide to the 2005-2006 Pontiac Pursuit Engine Timing Chain Kit
Understand the common timing chain issues in your Pursuit's Ecotec engine and how to choose the right replacement kit.
- Your Pursuit has an interference engine; a broken timing chain will cause severe engine damage.
- A rattling noise on cold startup is the most common early warning sign of a problem.
- There is no recall for this issue, but problems are well-documented. Regular oil changes are critical for prevention.
- Always replace the chain, tensioners, and guides together as a complete kit. Cloyes is a highly-rated aftermarket brand.
Is Your Pontiac Pursuit's Timing Chain Failing?
The 2005-2006 Pontiac Pursuit uses one of two Ecotec engines: a 2.2L L61 or a 2.4L LE5. While these engines have no official maintenance schedule for timing chain replacement, problems are known to occur, often related to worn plastic guides or a faulty tensioner. Ignoring the warning signs can lead to a very expensive engine failure. Listen and watch for these common symptoms.
Symptoms of a Bad Timing Chain
Key Warning Signs
- Engine Rattle on Startup: A short, rattling or buzzing sound from the passenger side of the engine when you first start it cold 🎬 Watch: Hear what a failing timing chain sounds like on startup. is a classic sign of a loose chain or bad tensioner.
- Rough Idle or Misfiring: As the chain stretches, it can throw off your engine's timing, causing it to run poorly, shake at idle, or lose power.
- Check Engine Light: Camshaft and crankshaft position sensor error codes (like P0016 or P0017) often point directly to a timing chain issue. 🎬 See how to diagnose and fix P0016 and P0017 correlation codes.
- Metal Shavings in Oil: When changing your oil, finding small, glitter-like metal particles in the drained oil is a serious red flag that internal parts, like the chain guides, are breaking apart.
Known Issues: Recalls and Technical Service Bulletins (TSBs)
There have been no official safety recalls from the NHTSA for timing chain failure on the 2005-2006 Pontiac Pursuit. Major recalls for this vehicle were for the ignition switch and power steering system, not the engine timing components.
However, an unofficial Technical Service Bulletin (AIP3252) was circulated for late 2006 models with the 2.2L or 2.4L engine. It warned that some engines built between April and November 2006 may have been assembled with non-heat-treated timing chain rollers, which could cause premature failure.
Choosing the Right Aftermarket Timing Chain Kit
When shopping for a replacement, it's critical to buy a complete kit. A full kit should include the primary timing chain, balance shaft chain, all tensioners, all plastic guides, and crankshaft/camshaft sprockets. For the 2.4L engine, ensure the kit is compatible with Variable Valve Timing (VVT).
Pro Tip: Since this is a labor-intensive job, it's wise to replace everything at once. Installing just a chain without new guides and tensioners is asking for trouble down the road.
Brand Quality Tiers
- High-Quality (Recommended): Cloyes is widely regarded as a top-tier aftermarket manufacturer for timing components. Their kits are known to meet or exceed OEM quality and are a trusted choice for domestic engines like the Ecotec.
- Standard-Quality: Dayco and Gates are reputable brands that also offer complete timing chain kits for the Pursuit. While more known for belts, their chain kits are a reliable option for a standard repair.
Estimated Cost of Replacement
Replacing the timing chain is a significant repair, with most of the cost coming from labor. The engine's front cover must be removed to access the components.
🎬 Watch: Professional tech tips for a successful Ecotec timing chain replacement.| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Kit | $87 - $331 |
| Shop Labor | $1,300 - $2,000+ |
| Total Estimated Cost | $1,400 - $2,300+ |
Frequently Asked Questions
Does my Pursuit have a timing chain or a timing belt?
All 2005-2006 Pontiac Pursuit models with the 2.2L and 2.4L Ecotec engines use a metal timing chain, not a rubber timing belt.
When should I replace the timing chain?
There is no set replacement interval. Chains are designed to last the life of the engine, but due to known issues, they can fail. Many mechanics recommend considering a replacement as a preventative measure between 100,000 and 150,000 miles, or immediately if you notice any symptoms.
What happens if the timing chain breaks while driving?
If the chain breaks, your engine will shut off immediately and will not restart. Because this is an interference engine, the pistons will likely collide with the valves, causing catastrophic and very expensive damage that may require a complete engine replacement.
How can I make my new timing chain last longer?
The single most important thing is regular oil changes with high-quality oil. The timing chain tensioner is fed by oil pressure, and dirty or low oil can cause it to fail, leading to chain slack and accelerated wear.

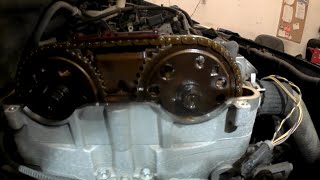

Helpful Videos
Technical Specifications
OEM Part Numbers: 12680750
Compatible with 2.2L L61 and 2.4L LE5 Ecotec engines. Kits for the 2.4L engine must be compatible with Variable Valve Timing (VVT).
