Guide to the 2005-2007 Buick Terraza Starter Motor
Understand the common failure points and replacement options for your Terraza's starter to avoid getting stranded.
- A single loud click with no crank is the most common failure symptom for the Terraza starter.
- Always test the battery and check its connections before deciding to replace the starter.
- The starter replacement is a manageable DIY job, typically taking 1-2 hours with basic tools.
- Ensure you buy the correct starter for your engine, as the 3.5L and 3.9L V6 models use different parts.
Symptoms of a Failing Starter
A starter motor rarely fails without giving some warning signs. If your Buick Terraza is experiencing starting issues, look for these common symptoms:
- Single Loud Click: This is a very common symptom for these vans. You turn the key, hear one loud click from the engine bay, but the engine does not crank. This often points to a problem with the starter solenoid.
- No Sound at All: When you turn the key, nothing happens. The dashboard lights may come on, but there is no cranking sound. This could indicate a dead starter or a problem in the electrical circuit.
- Slow or Labored Cranking: The engine turns over much slower than usual, sounding like the battery is weak. While this can be a battery issue, a failing starter can also draw too much power and cause this symptom.
- Grinding Noise: If you hear a grinding noise when trying to start the engine, or just after it starts, it could mean the starter gear is worn or not engaging properly with the engine's flexplate.
- Intermittent Starting: The van starts fine one day but refuses to start the next. This can be a sign of a developing electrical problem within the starter motor.
Choosing the Right Aftermarket Starter
When replacing the starter on your Terraza, you'll find several aftermarket options. The choice often comes down to balancing cost, quality, and warranty.
OEM vs. Aftermarket:
An OEM (Original Equipment Manufacturer) starter is what the vehicle was built with. For your Buick, this is a part made by or for General Motors. Aftermarket parts are made by other companies. For a vehicle like the 2005-2007 Terraza, high-quality aftermarket parts can offer the same performance as OEM for a lower price. ACDelco is GM's own parts brand and offers both original equipment and professional-grade aftermarket parts that are considered a reliable choice. MPA (Motor Parts of America) is a major aftermarket supplier that produces new and remanufactured parts, providing a cost-effective alternative.
Brand Tiers for Your Terraza:

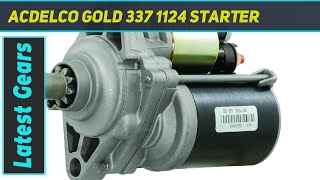

- ACDelco: Often considered a top-tier choice. They offer different lines, including their Gold (Professional) and OE series. 🎬 See a detailed review of the ACDelco Gold starter motor. These are engineered to meet or exceed original specifications and are a trusted option for fit and performance.
- MPA / Quality-Built: A well-regarded aftermarket brand. They offer new starters that provide a balance of quality and value. These parts are a good option for a daily driver where budget is a key consideration.
Estimated Replacement Costs
The cost to replace a starter motor can vary based on the part you choose and who does the labor. The prices below are estimates.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Starter | $56 - $192 |
| New OEM Starter | $250 - $400+ |
| Shop Labor | $120 - $250 |
| Total (DIY) | $56 - $192 |
| Total (Shop) | $176 - $442+ |
Frequently Asked Questions
Can I replace the starter myself on a Buick Terraza?
Yes, this is a DIY-feasible job for someone with moderate mechanical skill. The starter is located at the front of the engine where it meets the transmission. Access requires safely lifting the vehicle. You may need to remove a small bracket and a plastic cover to get to the two mounting bolts. The job typically takes 1 to 2 hours.
🎬 Follow this video walkthrough for replacing the 3.5L V6 starter.What tools are needed to replace the starter?
You will need basic hand tools, including a socket set (8mm, 10mm, 13mm, 15mm sockets are common), wrenches, a jack, and jack stands for safety. Always disconnect the negative battery terminal before starting any work.
How do I know it's the starter and not the starter relay or a fuse?
A single, sharp click when you turn the key often means the relay is working and sending power to the starter solenoid. If you hear nothing, you should check the "CRNK" fuse and relay 🎬 Watch this diagnostic guide for a Terraza that won't crank. in the under-hood fuse box before condemning the starter. Swapping the starter relay with a similar one (like for the horn) is a quick way to test it.
Is there a recall on the starter for the 2005-2007 Buick Terraza?
No, there are no specific recalls issued by the NHTSA for the starter motor on the 2005-2007 Buick Terraza. Searches for recalls only found issues related to parking brakes and incorrect labels for some model years.
Does the new starter need shims?
For this specific application on the GM 3.5L and 3.9L V6 engines, shims are generally not required. Shims are thin spacers used to adjust the starter's position. If no shims were present on the old starter, you do not need to install any with the new one.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12594441 89017761 8000063
Voltage: 12V, Rotation: Clockwise, Teeth: 9. The starter is a PMGR (Permanent Magnet Gear Reduction) type with a power rating typically between 1.2kW and 1.4kW.
