A Guide to the Automatic Transmission Oil Cooler for the 2005-2007 Ford Freestyle
Keeping your Freestyle's sensitive transmission cool is critical for avoiding expensive repairs.
- The transmission cooler is essential for protecting the Freestyle's sensitive CVT transmission from heat-related failure.
- Symptoms include reddish fluid leaks under the front of the car, a transmission warning light, a burnt smell, or poor shifting.
- Replacing the cooler will not fix a transmission that is already damaged internally.
- It is highly recommended to replace the transmission cooler lines at the same time as the cooler to prevent future leaks.
Is Your Transmission at Risk? Symptoms of a Failing Cooler
A bad transmission cooler can quickly lead to a dead transmission. If you notice any of these signs, you should get your vehicle checked right away. Ignoring them can lead to a repair bill that is thousands of dollars.
Key Symptoms of Failure
- Transmission Fluid Leaks: This is the most common sign. You may see puddles of reddish-brown fluid 🎬 Watch: How to diagnose transmission leaks under your vehicle under the front of your Freestyle. Leaks can come from cracks in the cooler itself or from the lines and fittings that connect to it.
- Overheating Transmission: The cooler might be clogged inside or the fins on the outside might be bent and blocked. This will cause the transmission to overheat. You might see a warning light on your dashboard, like "Check Transmission," or notice a distinct burning smell.
- Shifting Problems: When the fluid gets too hot, it breaks down and doesn't protect the transmission's moving parts. This can cause poor shifting, surging, or the car going into a "limp mode" where it barely moves.
Choosing the Right Aftermarket Cooler for Your Freestyle
The original Ford transmission cooler does its job, but when it fails, you have several aftermarket choices. Aftermarket parts are not all the same quality. Here’s how they generally stack up for your Freestyle.
Tier 1: Premium Aftermarket
These brands often meet or exceed the quality of the original part. They may use better materials, like all-aluminum construction, which can resist corrosion and damage better than the original parts that sometimes use plastic components.
- CSF Radiator: Known for high-quality cooling products, often with superior construction and rave reviews for fit and performance.
Tier 2: Standard Replacement
These brands are designed to be direct, affordable replacements that meet original specifications. They are a reliable choice for a daily driver under normal conditions.
- Dorman: A very common brand that offers direct-fit parts that are a cost-effective solution. Quality is generally considered good for the price, providing a dependable factory-style repair.
- Hayden: A long-standing, trusted name in transmission cooling. They offer reliable, standard replacements that get the job done.
- Four Seasons / Global Parts / Skyward: These brands provide functional, budget-friendly replacements that are designed to restore original performance.
Pro Tip: Replace the Lines Too
Your transmission cooler is connected by flexible lines that can also get old, brittle, and leak. Since you are already replacing the cooler, it is highly recommended to replace the transmission cooler lines at the same time to prevent future leaks. Dorman and other brands offer replacement lines.
Cost to Replace a Ford Freestyle Transmission Cooler
The cost depends on whether you do it yourself or have a shop do it, and which brand you choose. Here are some typical costs:
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $52 - $159 |
| New OEM Part | $150 - $250 |
| Used OEM Part | $70 - $95 |
| Shop Labor | $135 - $200 |
Frequently Asked Questions
Will a new cooler fix my failing transmission?
No. A new cooler is preventative maintenance. If your transmission is already slipping, making noise, or failing to engage, the internal damage is already done. Replacing a leaking or clogged cooler can prevent a good transmission from failing, but it cannot fix one that is already broken.
Is this a difficult job to do myself?
For an experienced DIY mechanic, this is a manageable job. It requires removing the upper radiator support to get access. The hardest part can be removing the cooler lines from their fittings without damaging them, so a special line wrench is recommended. 🎬 See how to remove cooler lines without special tools If you are not comfortable working on cars, it's best to leave this to a professional.
Are there any recalls on the Freestyle transmission cooler?
No, there are no specific recalls from the NHTSA for the automatic transmission oil cooler on the 2005-2007 Ford Freestyle. There are recalls for other items on the vehicle, but not the cooler itself.
What kind of transmission fluid do I need for my Freestyle?
The Ford Freestyle with the CVT requires a very specific fluid, typically labeled as CVT fluid. Using the wrong type of fluid can quickly destroy the transmission. Always check your owner's manual or consult a parts specialist for the exact fluid specification for your vehicle.

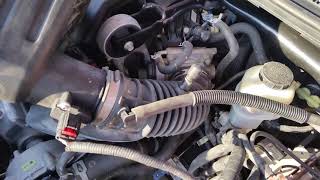

🎬 Watch: How to check and top up your CVT fluidHelpful Videos
Technical Specifications
OEM Part Numbers: 5F9Z-7A095-AC
The automatic transmission oil cooler is an external, air-to-oil cooler located between the A/C condenser and the engine radiator. It uses two lines to circulate fluid to and from the automatic transmission.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
