Ford Freestyle 2005-2007 Brake Light Switch: A Complete Guide
Fix brake light failures, shifting problems, and cruise control issues on your Freestyle with this guide.
- A bad brake light switch can cause brake light failure, prevent shifting out of park, and disable cruise control.
- This is a very easy and inexpensive DIY repair that takes less than 30 minutes and requires no special tools.
- Always check the 10-amp fuse in the interior fuse box before replacing the switch.
- For reliable performance, it is strongly recommended to use the OEM Motorcraft part (3M5Z-13480-AB) as the price is competitive with aftermarket options.
Is Your Ford Freestyle's Brake Light Switch Failing?
A faulty brake light switch is a common issue that can cause confusing problems. You might think you have a major transmission or electrical issue, but the fix is often simple and inexpensive. Because this switch controls more than just the lights, its failure can trigger several seemingly unrelated symptoms. Recognizing these signs is the first step to getting your Freestyle back in safe working order.
Key Failure Symptoms
- Brake Lights Don't Work: The most obvious and dangerous symptom is the brake lights not lighting up when you press the pedal.
- Brake Lights Stay On: The switch can get stuck, leaving the brake lights on constantly and draining your battery.
- Can't Shift Out of Park: A safety feature prevents you from shifting out of 'Park' unless the brake is applied. If the switch is bad, your vehicle won't get the signal and the shifter will be stuck. 🎬 Watch this video to see how to bypass a stuck shifter.
- Cruise Control Won't Engage: The cruise control system will not activate if it thinks the brakes are being pressed.
- ABS/Traction Control Lights: These safety systems rely on the brake switch signal and may light up a warning on your dash if the signal is lost.
Pro Tip: Before replacing the switch, always check the brake light fuse first. The fuse for the switch is a 10-amp fuse located in the interior fuse panel. 🎬 See this video for the exact fuse and switch locations. A blown fuse is cheaper and easier to replace than a switch.
Choosing the Right Aftermarket Switch: Motorcraft vs. Standard
For your 2005-2007 Freestyle, you have a choice between OEM-quality and standard aftermarket parts. Given the critical safety function of this switch, the brand you choose matters.
- Motorcraft (OEM): Motorcraft is Ford's official parts brand. Choosing Motorcraft guarantees a perfect fit, correct electrical tolerances, and original equipment performance. For electronic parts on a Ford, mechanics almost always recommend sticking with Motorcraft to avoid compatibility problems.
- Standard Ignition (SMP): Standard is a well-known aftermarket manufacturer. While often a reliable choice, some aftermarket electrical parts can have minor differences in fit or terminal connection quality that may cause issues down the road.
Verdict: The price difference between Motorcraft and a standard aftermarket switch is often minimal. For a part this critical to safety and vehicle function, Motorcraft is the highly recommended choice. The OEM part number is 3M5Z-13480-AB.
Brake Light Switch Replacement Cost
Replacing the brake light switch is an inexpensive repair, whether you do it yourself or take it to a shop.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $24 - $38 |
| New Aftermarket (Standard, etc.) | $21 - $39 |
| Shop Labor | $50 - $140 |
| Total Professional Repair | $75 - $180 |
Note: Prices are estimates and can vary based on your location and the specific repair shop.
Frequently Asked Questions (FAQ)
Is it hard to replace the brake light switch myself?
No, it is a very easy job for a DIYer. The switch is located on the brake pedal arm under the dash. You simply disconnect the electrical plug, twist the old switch about 45 degrees clockwise to remove it, and then install the new one by rotating it counter-clockwise. 🎬 Watch a step-by-step walkthrough of the switch replacement process. The most difficult part is the uncomfortable position you have to be in to reach it.
Do I need any special tools?
No special tools are required. You may need a small panel removal tool for the fuse box cover, but the switch itself can be removed and installed by hand.
I heard about a recall for a Ford brake switch that causes fires. Is this it?
No. That recall (05S28) was for a different part called the Speed Control Deactivation Switch, which is located on the brake master cylinder under the hood. The part discussed in this article is the brake light switch located on the pedal inside the cabin. They are two separate parts with different functions.
My brake lights work, but my cruise control doesn't. Could it still be the switch?
Yes. The brake light switch has multiple electrical contacts inside. It's possible for the contact that controls the brake lights to work while the one that sends a signal to the cruise control has failed. Given the low cost of the part, it's a good place to start your diagnosis.
Helpful Videos

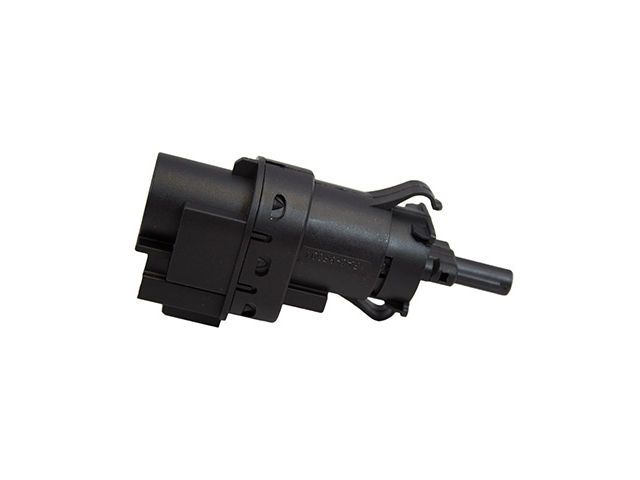

Technical Specifications
OEM Part Numbers: 3M5Z-13480-AB 3M5Z-13480-AA
Location: On brake pedal support bracket. Type: Mechanical plunger switch. Activation: Activated by brake pedal movement.
