Ford Freestyle Door Lock Actuator Guide (2005-2007)
Having trouble with your 2005-2007 Ford Freestyle's power locks? Here’s what you need to know before you buy a new door lock actuator.
- Erratic behavior like random unlocking is a key sign of actuator failure in the Freestyle.
- Always check the #3 fuse in the interior fuse box before assuming the actuator is bad.
- Aftermarket brands offer significant savings, but OEM (Motorcraft) will provide the best longevity.
- No recalls for this part apply to the 2005-2007 Freestyle; failure is due to normal wear.
Is Your Ford Freestyle's Door Lock Actuator Failing?
A failing door lock actuator in a 2005-2007 Ford Freestyle can be more than just an inconvenience; it can be a security issue. Symptoms often start small but can become significant problems. If you notice any of the following signs, your actuator is likely the culprit.
🎬 Watch: How to confirm if your door lock actuator is badCommon Failure Symptoms
- Doors Won't Lock or Unlock: The most obvious sign is when a single door stops responding to the power lock switch or the key fob, while the other doors still work.
- Erratic and Random Operation: This is a very common symptom reported by owners. The locks may cycle repeatedly, lock and unlock on their own while driving, or even unlock the vehicle while it's parked and unattended.
- Strange Noises from the Door: You might hear a buzzing, grinding, or whirring sound from inside the door when you try to lock or unlock it. This is the sound of the small motor inside the actuator struggling or its internal gears failing. 🎬 See how to fix that common Ford whirring sound
- Randomly Triggered Alarm: A faulty actuator can sometimes send incorrect signals, making the security system think a door is being tampered with, which can cause the alarm to go off unexpectedly.
Check This First: Fuses and Wiring
Before you buy a new part, check the power door lock fuse. On the 2005 Freestyle, the main fuse for the door locks is a 25-amp fuse (Fuse #3) located in the interior fuse panel by the driver's floorboard. Also, check the wiring harness that runs between the door and the vehicle body for any broken wires, as this is a common point of failure.
Choosing the Right Aftermarket Actuator for Your Freestyle
When shopping for a new door lock actuator, you'll find several brands. The original part in your vehicle is Motorcraft. While OEM is always an option, aftermarket parts offer significant savings. Here’s a breakdown of the available brands to help you choose.
Brand Quality Tiers
- OEM (Motorcraft): This is the original Ford part. It guarantees perfect fitment and the longest lifespan but comes at the highest cost. If you want a fix that is most likely to last as long as the original, this is your choice.
- OEM-Equivalent (Continental): Continental is a major manufacturer that often supplies parts directly to automakers. Their aftermarket parts are engineered to meet or exceed original specifications and are an excellent high-quality alternative to the dealer part, often at a lower price.
- Trusted Aftermarket (Standard Ignition): Brands like Standard Motor Products (SMP) have a long-standing reputation for producing reliable parts. They offer a good balance between cost and quality, making them a solid choice for most DIY repairs.
- Economy (Replacement, Skyward): These brands provide the most budget-friendly options. They are a practical choice if your main goal is to restore function at the lowest possible price. However, be aware that the trade-off for the lower cost might be a shorter service life compared to premium brands.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $15 - $93 |
| New OEM Part (Motorcraft) | $80 - $170 |
| Shop Labor Cost | $98 - $143 |
| Total Professional Replacement (Aftermarket) | $128 - $181 |
A Note on Recalls and TSBs
While Ford has issued recalls and Technical Service Bulletins (TSBs) for door latch problems on other models like the Focus and Escape, searches of the NHTSA database and other technical resources show no specific recalls or TSBs for the door lock actuators on the 2005-2007 Ford Freestyle. The issues seen on this vehicle are generally due to normal wear and tear of the part.
Frequently Asked Questions
Can I still drive my Freestyle with a bad door lock actuator?
Yes, but with caution. The primary issue is security. You may not be able to lock one or more doors, leaving your vehicle vulnerable. If the actuator is failing erratically, it could potentially unlock the doors while you are driving, which is a safety concern. It's best to get this repaired soon after symptoms appear.
Can I replace just the one broken actuator?
Yes. You only need to replace the actuator in the door that is malfunctioning. However, since all the actuators are the same age, it's not uncommon for another one to fail soon after the first. Some owners choose to replace them in pairs (e.g., both front doors) to save time on a future repair.
Is replacing a door lock actuator a difficult DIY job?
For someone with basic mechanical skills, it is a manageable job. The process involves removing the interior door panel, 🎬 Watch this video for a step-by-step door panel removal guide peeling back a weather barrier, and working inside the door to unbolt the actuator and disconnect its linkages and electrical plug. It requires patience, as space inside the door is tight. The estimated time is 1.5 to 2.5 hours.

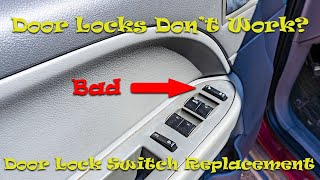

Why do my locks work with the key fob but not the door switch (or vice-versa)?
This can sometimes point to a problem with the door lock switch itself, not the actuator. However, it can also be a sign of an internal electrical failure within the actuator. A good troubleshooting step is to listen for any noise from the actuator when using both the switch and the fob. If you hear a noise but the lock doesn't move, the actuator's motor or gears are likely the problem.
Helpful Videos
Technical Specifications
This part is specific to each door (Front Left, Front Right, Rear Left, Rear Right). Ensure you order the correct actuator for the specific door you are repairing.
