Ford Freestyle HVAC Blower Motor Switch Guide for 2005-2007 Models
If your Ford Freestyle's fan controls are acting up or have stopped working, this guide will help you diagnose the problem.
- The most common fan issue—only working on high—is caused by the blower motor resistor, not the switch.
- A failing switch usually results in a completely dead control panel or unresponsive buttons.
- There are no recalls or TSBs from Ford for this part; it is a standard wear-and-tear item.
- Before replacing any parts, check the HVAC-related fuses in the interior and under-hood fuse boxes.
Is It Your Blower Motor Switch or the Resistor?
For the 2005-2007 Ford Freestyle, the most common HVAC fan problem is the fan only working on the highest speed setting. This issue is almost always caused by a failed blower motor resistor, not the switch itself. The highest fan setting bypasses the resistor, which is why it's the only speed that works when the resistor burns out. If your fan only works on high, you likely need a new blower motor resistor, which is a different part located behind the glove box.

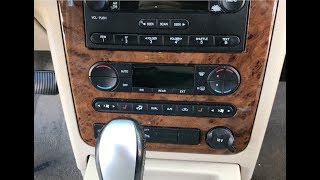

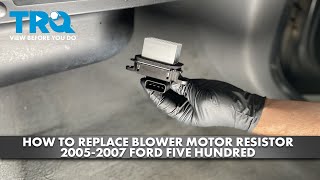

🎬 Watch: Step-by-step guide to replacing the blower motor resistor.A failing blower motor switch (the control unit in the dash) will have different symptoms. You are more likely looking at a bad switch if you experience the following:
- The entire climate control panel is dead (no lights, no display).
- None of the fan speed settings work at all, including high.
- The fan speed changes on its own or doesn't correspond to the setting 🎬 Watch: How to troubleshoot and fix blower motor issues. you've selected.
- Buttons on the control panel are unresponsive.
Choosing the Right Aftermarket Switch
When replacing the HVAC control switch on your Freestyle, you'll find options from the original equipment manufacturer (Motorcraft) and aftermarket brands like Standard Ignition.
Brand Quality: Standard Ignition
Standard Ignition (also known as Standard Motor Products) is a long-established aftermarket brand that produces a wide range of automotive parts. Their parts are designed to be direct-fit replacements that meet original equipment (OE) specifications. However, real-world feedback suggests that quality control can sometimes be inconsistent. Some users have reported receiving new switches or related components that were faulty out of the box. While many of their parts work without issue, it is a possibility to consider. It is generally considered a standard, affordable replacement option.
Pro Tip: Check for Melted Connectors
Before installing a new switch, inspect the wiring harness and connector that plugs into the back of it. A failing switch or a blower motor drawing too much power can create excess heat, potentially melting the plastic connector or damaging the wires. If you see any signs of melting or corrosion, the connector pigtail should be replaced along with the switch to ensure a solid connection and prevent a repeat failure.
Estimated Replacement Costs
The cost for a new HVAC Blower Motor Switch can vary depending on whether you choose an OEM part from the dealer or an aftermarket part.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $60 - $80 |
| New Aftermarket (Standard Ignition) | $65.43 |
| Shop Labor | $100 - $180 |
Frequently Asked Questions (FAQ)
My fan only works on high. Is this the switch?
No, this is the classic symptom of a failed blower motor resistor, not the switch. The resistor controls the lower fan speeds, and when it fails, only the high setting (which bypasses it) continues to work. The resistor is a separate, less expensive part located behind the glove compartment.
Can I replace the HVAC blower switch myself?
Yes, this is a feasible DIY project for someone with basic tools and patience. The process involves carefully removing the plastic trim around the radio and climate controls to access the switch module. It is held in by screws. Unlike the easily accessible blower motor resistor, this job requires some disassembly of the dashboard. Expect it to take around an hour.
Are there any recalls for the Freestyle's HVAC switch?
No, there are no recalls or specific Technical Service Bulletins (TSBs) from Ford for the HVAC blower motor switch or resistor on the 2005-2007 Freestyle. These failures are considered normal wear and tear.
What if I replace the switch and it doesn't fix the problem?

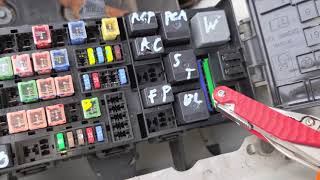

If a new switch doesn't solve the issue, check the fuses for the HVAC system first. There are fuses in both the interior fuse panel and the one under the hood that relate to the climate controls. 🎬 See this video to locate your HVAC fuses and relays. If the fuses are good, the problem could be with the wiring, the blower motor itself, or the blower motor resistor.
Helpful Videos
Technical Specifications
OEM Part Numbers: YH1670 (Motorcraft)
This part is the complete HVAC control module located in the center dashboard. It is available for both manual and automatic climate control systems; ensure you order the correct one for your vehicle.
