A Guide to the 2005-2007 Saturn Relay Automatic Transmission Control Solenoid
Fix harsh shifting and transmission error codes in your Saturn Relay by understanding its common solenoid failures.
- The most common issue is the failure of the Pressure Control Solenoid (EPC/PCS), which causes harsh shifts and often triggers a P1811 code.
- Replacement is a complex, labor-intensive job that requires lowering the engine subframe to access the transmission's side cover.
- Due to the high labor cost, it is highly recommended to replace all solenoids as a complete set, not just the single one that failed.
- There are no safety recalls for this issue, but it is a well-documented weak point of the 4T65-E transmission used in your Relay.
Is Your Saturn Relay Shifting Hard? It Could Be a Solenoid.
If you own a 2005-2007 Saturn Relay, you have the GM 4T65-E transmission, which is known for specific solenoid issues. The most common failure is the Electronic Pressure Control (EPC) solenoid, also called the Pressure Control Solenoid (PCS). This part is responsible for managing line pressure, and when it fails, 🎬 Watch a mechanic explain how the pressure control solenoid works. it often causes very harsh, sudden gear shifts. This problem is so common that it is documented in Technical Service Bulletins (TSBs). Other solenoids, like the shift solenoids or the torque converter clutch (TCC) solenoid, can also fail and cause different but related symptoms.
Symptoms of a Failing Transmission Solenoid
A bad solenoid sends clear signals that your transmission needs attention. Ignoring them can lead to more severe internal damage. Look out for these common signs:
- Harsh or Banging Shifts: The most frequent complaint, often caused by a failing EPC/PCS solenoid forcing maximum line pressure.
- Delayed Shifting: A noticeable pause before the transmission engages the next gear.
- Transmission Stuck in One Gear: The computer may force the transmission into "limp mode" (usually 2nd or 3rd gear) to prevent damage.
- Shuddering or Slipping: The van may shudder during acceleration, or the engine may rev up without a corresponding increase in speed.
- Check Engine Light: A failing solenoid will often trigger a Diagnostic Trouble Code (DTC), illuminating the check engine light. Common codes include P1811 (Maximum Adapt and Long Shift 🎬 See how to fix common P1811 problems and shift issues.), P0748 (Pressure Control Solenoid Electrical), and others related to specific shift circuits.
No Recalls, But Known Issues Exist
While there are no official safety recalls from the NHTSA for transmission solenoids on the 2005-2007 Saturn Relay, the failure of the pressure control solenoid is a widely recognized problem with the 4T65-E transmission.
Choosing the Right Aftermarket Solenoid
For a vehicle of this age, using a new aftermarket solenoid is a cost-effective and reliable repair strategy. OEM parts can be expensive or difficult to source. The key is to choose a quality replacement, as the labor to access the solenoids is significant. The available brands are generally standard-tier replacements suitable for daily driving.
- Standard Ignition (SMP): A well-regarded aftermarket manufacturer known for producing quality electronic parts that often meet or mimic OE design. They are a solid choice for reliability.
- ATP: A long-standing brand in the transmission parts industry. They offer a wide range of components, including individual solenoids and kits, that are designed to be direct-fit replacements.
- Pioneer Cable: While this brand is more known for transmission shift cables, they are listed by some retailers as offering solenoids. They serve as a standard replacement option.
Should I Replace One or All?
The solenoids are located behind the transmission's side cover, which is a labor-intensive part to access. Because of the high labor cost, many mechanics recommend replacing all the solenoids (shift solenoids, EPC, and TCC) at the same time as a set. This prevents you from having to pay for the same difficult job again if another original solenoid fails soon after.
Cost to Replace a Saturn Relay Transmission Solenoid
The cost is dominated by labor due to the job's complexity. The part itself is relatively inexpensive.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Solenoid(s) | $40 - $100 (for a single solenoid or up to $200+ for a master kit) |
| Shop Labor | $450 - $700 |
| Total Estimated Cost | $490 - $800+ |
Note: Prices are estimates and can vary based on your location and the specific repair shop.
Frequently Asked Questions
Can I replace the transmission solenoid myself?

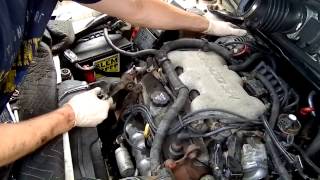

This is an advanced DIY job. Unlike a simple filter change, you cannot access the solenoids by just dropping the bottom pan. The procedure requires supporting the engine, lowering the subframe, and removing the driver's side wheel and axle shaft 🎬 Watch this walkthrough of the complex side cover removal process. to get the transmission's side cover off. It is recommended for experienced home mechanics or professionals. After replacement, the transmission's computer may need to have its adaptive learn values reset.
What is a P1811 code?
DTC P1811 is a very common code on 4T65-E transmissions that stands for "Maximum Adapt and Long Shift." It means the computer has detected excessive slipping during shifts and has ramped up hydraulic pressure to the maximum level to compensate. This results in harsh, banging shifts and is most often caused by a failing Pressure Control Solenoid (PCS/EPC).
Will changing the transmission fluid fix a bad solenoid?
In most cases, no. If the solenoid has failed electrically or is mechanically stuck, new fluid will not fix it. However, if the problem is caused by very old, dirty fluid that is clogging the solenoid's internal passages, a fluid and filter change might temporarily help. It is not a permanent solution for a faulty part.
Is it better to repair the solenoid or replace the whole transmission?
If your transmission problems are limited to solenoid-related codes and symptoms, and the fluid is not full of metal shavings, replacing the solenoids is a much cheaper option than replacing the entire transmission. A full rebuild or replacement is only necessary if there is extensive internal mechanical damage, such as burned clutches.
Helpful Videos
Technical Specifications
OEM Part Numbers: 24225825 10478146 24219819 24227747
Fits 4T65-E Automatic Transmission
