Saturn Relay 2005-2007 Power Steering Pump Replacement and Diagnosis
Addressing the common whining and stiff steering in your Saturn Relay minivan.
- A whining noise that gets louder when turning is the #1 symptom of a failing power steering pump.
- The plastic reservoir is a common failure point; buying a pump that includes a new reservoir is a smart choice.
- A special power steering pulley puller/installer tool is required for this job; a standard puller will damage the pulley.
- Quality of aftermarket pumps varies greatly; 100% new units from brands like PWR offer better reliability than many remanufactured options.
Is Your Saturn Relay's Power Steering Pump Failing?
If you own a 2005-2007 Saturn Relay, you might be familiar with a distinct whining noise from the engine bay. This is the most common sign of a failing power steering pump, an issue shared with its GM siblings like the Chevrolet Uplander and Buick Terraza. This guide will help you understand the symptoms, choose the right aftermarket part, and know what to expect for the repair.
Symptoms of a Bad Power Steering Pump
Watch for these clear warning signs. Ignoring them can lead to a sudden loss of steering assist, which is a major safety concern.
- Whining Noise: A constant whine that gets louder when you turn the steering wheel or rev the engine. This is often the first symptom.
- Stiff Steering: The steering wheel becomes difficult to turn, especially when parking or driving at low speeds.
- Groaning or Grinding: As the pump deteriorates, the whine may turn into a lower-pitched groan or a grinding sound.
- Fluid Leaks: You may find reddish or light brown fluid under the front of your van. Leaks can come from the pump itself, the attached reservoir, or the hoses.
Check the Reservoir and Hoses First
Sometimes, a loud pump is just a symptom of low fluid. Before replacing the pump, check the fluid level. If it's low, you have a leak. Common leak points on these vans are the plastic reservoir (which can crack) and the high-pressure power steering hoses. Topping up the fluid is only a temporary fix until the leak is repaired.
Choosing the Right Aftermarket Power Steering Pump
Since new OEM GM pumps for this van are becoming scarce, a new aftermarket pump is the most practical choice. However, quality varies significantly between brands. Aftermarket parts for the Relay generally fall into three tiers.
Tier 1: Premium New
These brands offer 100% new components, not remanufactured ones. They are engineered to meet or exceed original quality and often have the lowest failure rates out of the box.
- PWR: Specializes in 100% new power steering components. They often come as a complete, installation-ready assembly with the pulley and reservoir, which is a major advantage. Reviews suggest good reliability and fitment.
Tier 2: Reputable Remanufactured & New
These are established brands that offer a mix of new and remanufactured parts. Quality can be inconsistent, making them a bit of a gamble.
- BBB Industries: A well-known remanufacturer. While some parts work fine, others have reported receiving poorly rebuilt units.
- Cardone: Offers both new and remanufactured pumps and is widely available. However, their quality is notoriously hit-or-miss. You might get a part that lasts for years or one that is defective right out of the box.
Tier 3: Economy/Budget
These brands compete on price. They are typically budget-friendly but may have a higher risk of premature failure or fitment issues.
- DNJ Engine Components: Primarily an engine parts company, their power steering pumps are a budget option. Reviews for their other components are highly polarized, ranging from acceptable to very poor.
- Mapco: Generally considered a budget brand in North America, often consisting of re-boxed parts from various overseas manufacturers.
Pro Tip: Buy a Pump with the Reservoir

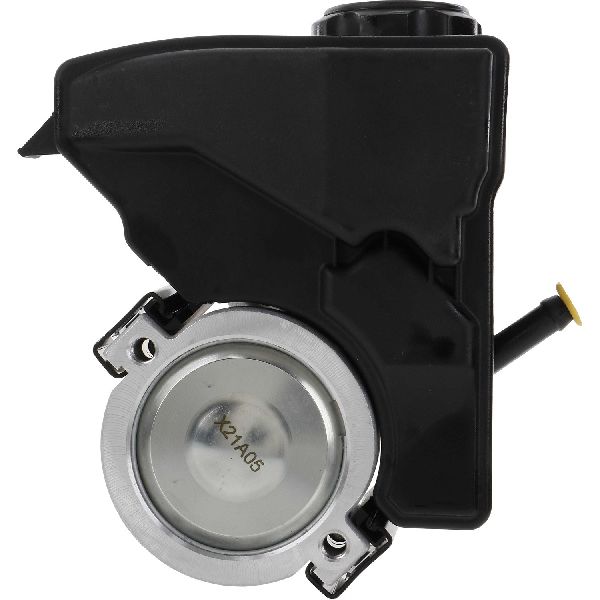

The plastic power steering reservoir on these GM vans is a common failure point, developing cracks that let air into the system, causing a whining noise. To avoid doing the job twice, it's highly recommended to buy a replacement pump that includes a new reservoir.
Power Steering Pump Replacement Cost (2005-2007 Saturn Relay)
Costs can vary by location and which part you choose. Here are typical cost ranges to help you budget for the repair.
| Item | Estimated Cost |
|---|---|
| Shop Labor | $150 - $300 |
| New Aftermarket Pump | $70 - $260 |
| Remanufactured Pump | $75 - $150 |
| Used OEM (Salvage) | $50 - $110 |
| Total Professional Repair | $385 - $530 |
Frequently Asked Questions
Can I drive my Relay with a bad power steering pump?
It is not recommended. While the vehicle can be steered without power assist, it requires a great deal of physical effort, especially at low speeds. A whining pump can fail suddenly, leading to an unexpected and dangerous loss of control. It's best to get it repaired as soon as possible.
Is replacing the power steering pump a DIY job?
For a moderately experienced DIYer, yes. Access is tight but manageable. The most critical part of the job is having the correct power steering pulley puller/installer tool. Using a standard jaw puller will destroy the pulley. Most auto parts stores have the correct tool available through a loaner program. After installation, the system must be properly bled of all air to prevent noise and damage to the new pump.
Are there any recalls on the Saturn Relay power steering pump?
No. There are no active recalls or widespread Technical Service Bulletins (TSBs) for the hydraulic power steering pump on the 2005-2007 Saturn Relay. Failures are typically due to normal age and wear. A known issue for the platform was leaking high-pressure hoses, which can cause similar symptoms, so it's important to diagnose the leak accurately.
What kind of power steering fluid does the Saturn Relay use?
Always consult your owner's manual or the cap on the reservoir for the specific fluid type. Using the wrong fluid can damage the seals and the new pump. Most GM vehicles of this era use a conventional power steering fluid, but it is critical to verify the correct specification for your van.
Technical Specifications
OEM Part Numbers: 88963473 10319393
Hydraulic pump, belt-driven. Most replacements are for the 3.5L V6 engine, but also fits the 3.9L V6 available in 2006-2007 models. Often sold with an integrated plastic reservoir.
