A Comprehensive Guide to the Spark Plug Wire Set for the 2005-2007 Saturn Relay
Solve engine misfires and rough idling by understanding the unique challenges of replacing your Relay's spark plug wires.
- The biggest challenge is replacing the three rear spark plug wires, which are very difficult to access and significantly increase labor time.
- For best results and guaranteed fit, use OEM-grade brands like ACDelco or Delphi.
- Always replace the spark plugs at the same time as the wires to avoid duplicating the difficult labor.
- A persistent engine misfire caused by bad wires can damage your catalytic converter, leading to a much more expensive repair.
Understanding the Spark Plug Wire Replacement on Your Saturn Relay
If your 2005-2007 Saturn Relay is experiencing a rough idle, poor acceleration, or a flashing check engine light, worn-out spark plug wires could be the culprit. These wires operate in a harsh environment, exposed to high heat and vibration, which causes them to break down over time. This guide will walk you through the symptoms of failure and how to choose the best aftermarket replacement set for your vehicle.
Job Difficulty: The Rear Wires
Be aware: Replacing the spark plug wires on the Saturn Relay's V6 engine is a tale of two halves. The front three wires (cylinders 2, 4, 6) are straightforward to access. However, the rear three wires (cylinders 1, 3, 5) are located against the firewall, tucked under the intake manifold. Accessing them is very difficult and may require rotating the engine forward on its mounts or removing other components to create enough space. This significantly increases the labor time and complexity of the job.
Symptoms of Failing Spark Plug Wires
When spark plug wires begin to fail, they can't deliver the necessary voltage to the spark plugs efficiently. This can lead to several noticeable issues:
- Rough Idle: The engine may shake or vibrate more than usual when the vehicle is stopped.
- Engine Misfires: You may feel a stumbling or hesitation from the engine, especially under load. This often triggers a Check Engine Light with codes P0300 (random misfire) or P0301-P0306 (cylinder-specific misfires).
- Poor Acceleration: The van may feel sluggish or down on power when you press the gas pedal.
- Reduced Fuel Economy: Inefficient combustion from weak spark means the engine uses more fuel to produce the same amount of power.
- Visible Damage: A visual inspection may reveal cracks, burns, or melted spots on the wire insulation or boots.
Choosing the Right Aftermarket Spark Plug Wire Set
While you can get parts from the original dealer, the aftermarket offers a wide range of quality and price. For a critical and labor-intensive job like this, choosing a quality part to avoid doing the work twice is recommended.
Brand Tiers for Your Saturn Relay

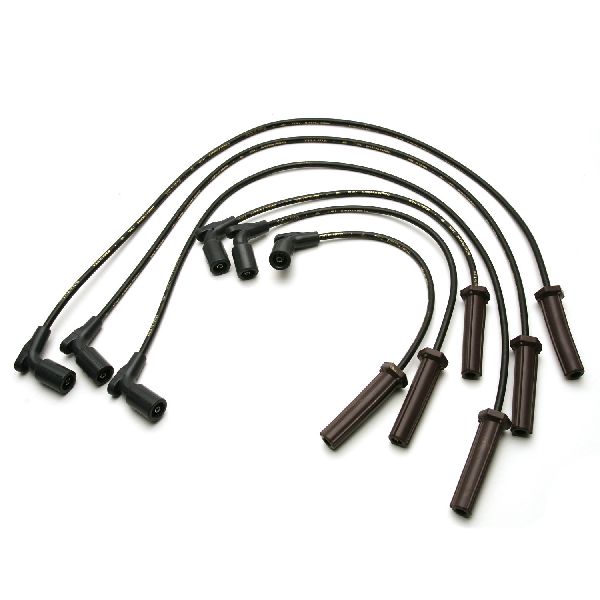

- OEM-Grade (Best Fit): Brands like ACDelco and Delphi are original equipment manufacturers for General Motors. Choosing these brands ensures the wires will have the correct length, boot angles, and resistance for your Relay's specific engine, which is crucial for a difficult installation.

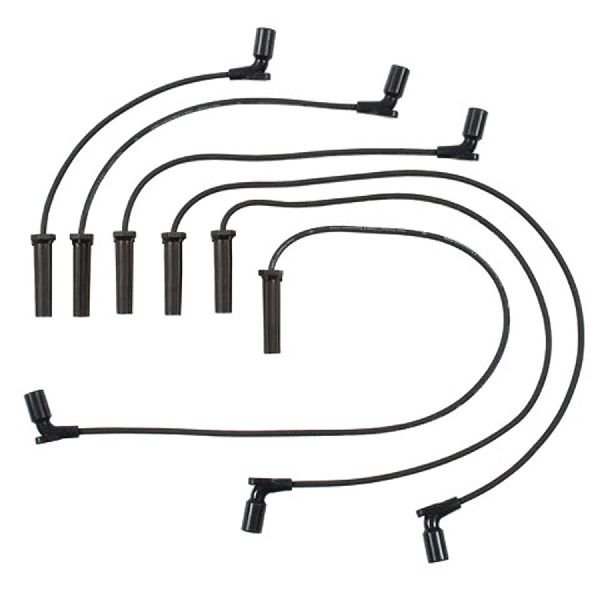

- Premium Aftermarket (Excellent Quality): NGK and Denso are highly respected for their ignition components. They are known for excellent performance and durability and are a solid choice if an OEM-grade set is not available.

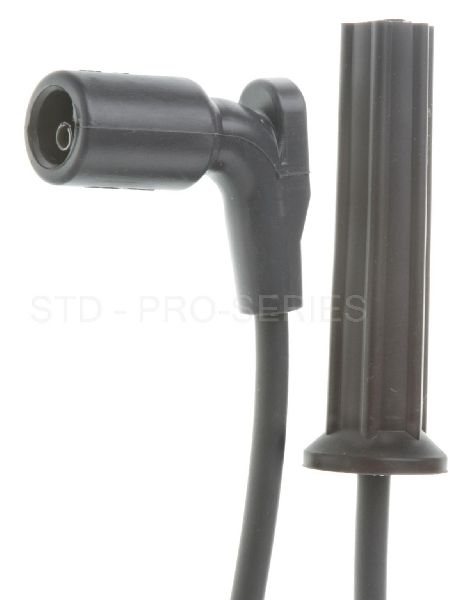

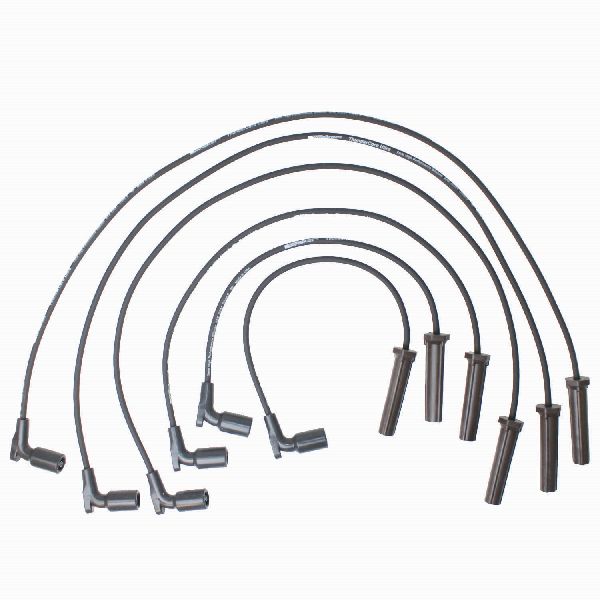

- Standard Aftermarket (Budget-Friendly): Brands like Standard (SMP), Walker Products, Prenco, and Taylor Cable offer a more affordable option. While functional, the fit and finish may not be as precise as the premium brands. Given the high labor involved, saving a few dollars on the parts may not be worth the risk of a poor fit or shorter lifespan.
Pro Tip: Replace Plugs and Use Grease
It is highly recommended to replace your spark plugs at the same time you replace the wires. The labor to access them is the same. Also, apply a small amount of dielectric grease to the inside of each spark plug boot. This prevents the boots from getting stuck to the plugs, makes future removal easier, and helps seal out moisture.
Known Issues, Recalls, and Service Bulletins
While there are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for the spark plug wires on the 2005-2007 Saturn Relay, GM did issue major recalls for the ignition *switch* and *cylinder* on many vehicles from this era, including the Saturn Ion. This problem could cause the vehicle to shut off while driving. This is a separate component from the spark plug wires but is a notable issue for this generation of GM vehicles.
Frequently Asked Questions (FAQ)
Is it hard to change the spark plug wires on a Saturn Relay?
Yes, the job is considered difficult. The front three wires are easy, but the rear three are very hard to access due to their location behind the engine and under other components. This is not recommended for a beginner DIYer.
Should I replace my spark plugs at the same time as the wires?
Absolutely. The most difficult part of the job is accessing the rear bank of cylinders. Since the spark plugs and wires are in the same location, replacing both at once saves you from having to repeat the difficult labor in the near future.
What's the difference between OEM and aftermarket wires?
OEM wires (like ACDelco) are guaranteed to have the exact length and fit as the ones your Relay came with from the factory. High-quality aftermarket wires from brands like Delphi, NGK, or Denso will perform just as well, but budget brands may have slight variations in length or boot shape that can complicate an already difficult installation.
How often do spark plug wires need to be replaced?
There is no universal interval, but they are typically inspected during spark plug changes (every 60,000 to 100,000 miles). They should be replaced whenever they show signs of wear, damage, or are causing performance issues.
Technical Specifications
OEM Part Numbers: 12043731
The Saturn Relay V6 engines use a coil pack with six low-resistance, 7mm or 8mm spark plug wires. The set consists of three short wires for the front bank and three long wires for the rear bank.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
