Dodge Magnum Ignition Coil Boot Kit: A Guide for 2005-2008 Models
If your Magnum is misfiring or running rough, the problem might be a simple, inexpensive ignition coil boot.
- A bad coil boot is a common cause of misfires (P0300-P0308 codes) on the Dodge Magnum and is much cheaper to replace than the entire ignition coil.
- Check for oil in the spark plug tubes; a leaking valve cover gasket is a frequent root cause of boot failure and must be fixed.
- For V6 engines, replacement is much more labor-intensive than for V8 HEMI engines because the intake manifold must be removed.
- Always replace spark plugs when replacing coil boots to ensure a complete and long-lasting repair.
Is Your Magnum Trying to Tell You Something?
A failing ignition coil boot is more than just a piece of worn rubber; it's a direct hit to your Magnum's performance. When a boot cracks or gets saturated with oil, the electricity from the coil can escape instead of firing the spark plug. This causes an engine misfire. You might feel this as a shake, a stutter, or a general lack of power. Ignoring it can lead to worse fuel economy, failed emissions tests, and even damage to your catalytic converters—a much more expensive repair.
Don't Ignore a Flashing Check Engine Light
A steady check engine light is a warning, but a flashing check engine light signals a severe misfire. Unburned fuel is being dumped into your exhaust, which can quickly destroy your catalytic converters. If you see a flashing light, you should reduce your speed and get the vehicle checked as soon as possible to avoid costly damage.
Choosing the Right Aftermarket Coil Boot Kit
For a part like an ignition coil boot, you don't necessarily need to buy the expensive OEM part from a dealer. High-quality aftermarket brands often meet or exceed original specifications and offer excellent value. The key is to choose a reputable brand known for quality materials.

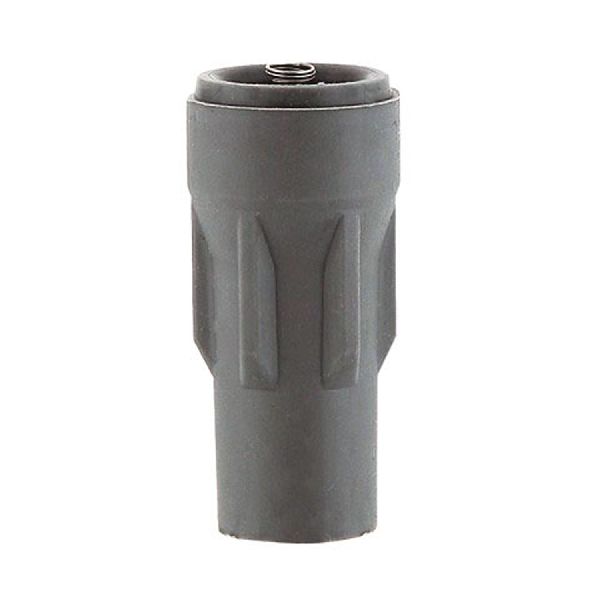

- Tier 1 / OEM Equivalent (Denso): Denso is a well-respected brand that is often the original equipment manufacturer for many car companies. Their coil boots are known to be identical in quality, material (high-quality silicone), and fit to the original factory parts. Choosing Denso is the closest you can get to OEM quality, often at a better price.

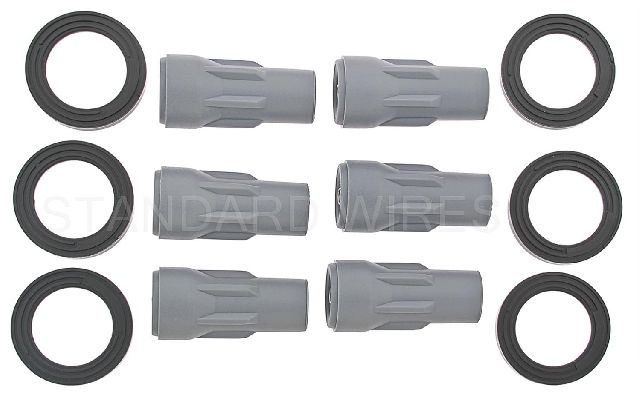

- Tier 2 / Reputable Aftermarket (Standard Motor Products): Standard (SMP) has been a major player in aftermarket ignition parts for decades. They offer a great balance of quality and affordability, making them a reliable choice for a daily-driven Magnum. Their parts are a significant step up from generic, no-name brands and provide a good service life.
Pro Tip: A very common reason for coil boot failure on the Magnum is a leaking valve cover gasket. When you replace the boots, check the spark plug tubes for any signs of oil. If you see oil, you must replace the valve cover gaskets to prevent the new boots from failing prematurely.
Cost to Replace Dodge Magnum Ignition Coil Boots
| Part Type | Estimated Cost (Kit for all cylinders) |
|---|---|
| New OEM (Mopar) | $120 - $200+ (Often sold with coils) |
| New Aftermarket (Denso, Standard) | $39.73 - $72.98 |
| Shop Labor | $100 - $450 |
Frequently Asked Questions (FAQ)
Should I replace the whole ignition coil or just the boot?
If your Magnum is misfiring but the ignition coil itself is not faulty, replacing just the boot and spring is a very cost-effective repair. The boot is a wear item that degrades from heat. However, if the spark plug tube was full of oil, it's wise to replace the entire coil assembly, as the oil may have damaged the coil's electronics.
Is it hard to replace the coil boots on a Magnum?
For V8 models (5.7L HEMI, 6.1L SRT8), the job is very easy and straightforward for a DIYer. The coils are on top of the engine and easy to access. For V6 models (2.7L, 3.5L), the job is much more difficult because the upper intake manifold must be removed to access the coils on one side of the engine. This is a more involved task.
Should I replace my spark plugs at the same time?
Absolutely. It is highly recommended to replace the spark plugs whenever you replace the ignition coil boots. You are already accessing the same area, and the symptoms of bad plugs and bad boots are nearly identical. This ensures your entire ignition system is refreshed. Remember the 5.7L HEMI has 16 spark plugs (two per cylinder).
What are the TSBs or recalls for the Magnum ignition system?
There are no specific recalls for the ignition coils or boots. However, TSB #0900505 was issued for 'Multiple Cylinder Misfire or Rough Idle' on 2005 models, showing it was a known issue. There was also a major recall (NHTSA 14V-567) for the 2008 model's ignition key switch, which could cause the engine to shut off while driving, but this is unrelated to the coil boots.
Technical Specifications

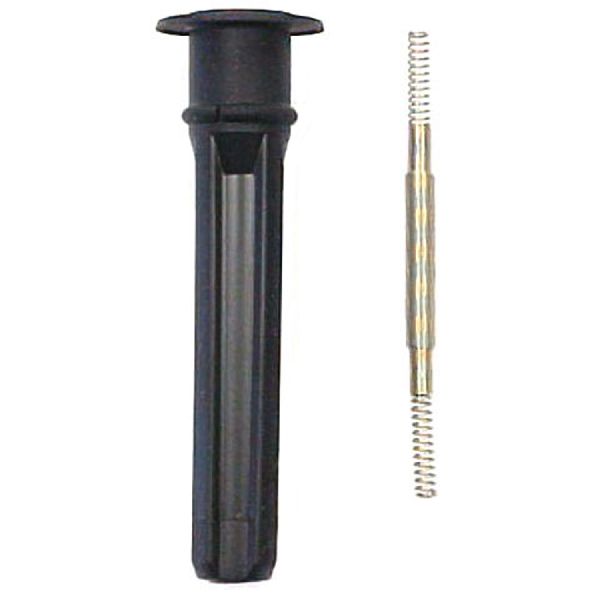

The kit includes rubber or silicone boots and internal contact springs. The number of boots will match the engine (6 for V6, 8 for V8). High-quality silicone material is critical for resisting high engine temperatures and preventing voltage leaks.
