Audi A4 HVAC Heater Hose Guide (2005-2009)
Everything you need to know about replacing the heater hoses on your B7 Audi A4.
- Heater hose failure on the B7 A4 is often caused by oil leaks from the vacuum pump degrading the rubber. Inspect and fix any oil leaks when replacing the hoses.
- Symptoms include no cabin heat, a sweet coolant smell, visible pink fluid leaks, and potential engine overheating.
- Replacement is difficult due to tight access at the back of the engine. It's recommended to replace hoses, O-rings, and the coolant flange at the same time.
- Choose premium aftermarket brands like CRP/Rein for an OEM-quality fit and longevity.
Understanding Heater Hose Failure on Your A4
The heater hoses on the 2005-2009 (B7) Audi A4 are known to fail with age. The rubber can become hard, brittle, and cracked over time. More commonly, the plastic connectors and O-rings at the ends of the hoses are the first points of failure. These components are located at the back of the engine, near the firewall, where they are exposed to intense heat cycles.
Known Issue: Oil Leak Contamination
A very common problem on the 2.0T engine is an oil leak from the vacuum pump gasket or rear timing chain cover. This leaking oil drips directly onto the heater hoses and the rear coolant flange they connect to. Oil causes the rubber O-rings and hose material to swell, soften, and degrade rapidly, leading to coolant leaks. If you are replacing your heater hoses due to a leak, it is critical to inspect for and repair any oil leaks in that area 🎬 Learn how to repair the vacuum pump to stop oil leaks. to prevent the new parts from failing prematurely.
Symptoms of a Failing Heater Hose
A bad heater hose can cause several noticeable problems. Being aware of these signs can help you catch the issue before it leads to more serious engine damage.
- No Heat or Poor Heat: If a hose is blocked or the system has a significant leak, not enough hot coolant will reach the heater core, leaving you with cold air from the vents.
- Sweet Smell: The coolant used in your Audi (G12/G13) has a distinct, sweet smell. If you notice this smell inside the cabin or outside near the engine, it's a strong sign of a coolant leak.
- Visible Coolant Leaks: You may see pink or purple fluid dripping onto the ground, typically towards the back of the engine near the transmission bell housing. You might also see white or pink crusty residue around the hose connections at the firewall.
- Low Coolant Warning Light: A persistent leak will cause the coolant level in the expansion tank to drop, triggering the warning light on your dashboard.
- Engine Overheating: A major hose rupture will cause a rapid loss of coolant, leading to engine overheating. This is a critical situation that requires you to stop driving immediately to prevent severe engine damage.
Choosing the Right Aftermarket Heater Hose
When it comes to aftermarket parts for your Audi, quality can vary. For a critical component like a heater hose, choosing a reputable brand is important for a lasting repair. The hoses for the B7 A4 are often sold as assemblies with the specific plastic connectors already attached.
Pro Tip: It is highly recommended to replace the heater hoses in pairs (supply and return) along with the rear coolant flange and its O-rings, as they are all prone to failure from the same conditions.
🎬 See how to replace the rear coolant flange on your 2.0T.Brand Quality Tiers
- Premium Aftermarket (CRP/Rein): CRP (Continental Rubber Products) and its Rein Automotive brand are often Original Equipment (OE) suppliers for Audi. This means their parts are made to the same standards and materials as the genuine parts you would buy from a dealer. Choosing a CRP/Rein hose is the safest bet for a perfect fit and long-term reliability.
- Reputable Aftermarket (Gates): Gates is a well-respected name in the world of belts and hoses. Their products are known for high quality and durability, often meeting or exceeding OEM specifications. A Gates heater hose is a solid, reliable choice that can offer good value.
- Standard Aftermarket (Vaico): Vaico is known for providing a wide range of parts at a more budget-friendly price point. While they can be a good option for less critical repairs, for a hard-to-access part like a heater hose on an A4, there may be compromises in material longevity or fitment precision compared to premium brands.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Heater Hose (Single) | $25 - $75 |
| New Aftermarket Heater Hose Kit (Pair) | $50 - $145 |
| Shop Labor | $250 - $450 |
Frequently Asked Questions (FAQ)
Is replacing the heater hose a DIY job?
This is a challenging DIY job. The hoses are located in a very tight space at the back of the engine, making access difficult. It requires removing several other components to gain access. While possible for an experienced home mechanic with the right tools (like remote hose clamp pliers) 🎬 Watch this complete walkthrough for replacing the flange and hoses., it can be frustrating. Many owners opt to have a professional shop perform the replacement.
Do I need to drain all the coolant to replace a heater hose?
Yes, the cooling system should be at least partially drained before you begin. Failing to do so will result in a large amount of coolant spilling out when you disconnect the old hose. It's a good practice to perform a full coolant flush and refill with fresh, Audi-specified G12 or G13 coolant anytime you open the system.
Why did my new aftermarket hose fail so quickly?
The most common reason for premature failure of a new heater hose is contamination from an unaddressed oil leak. Oil from a leaking vacuum pump or valve cover gasket will quickly destroy the rubber seals and hose material. Always fix oil leaks before or during the heater hose replacement.
Are there any recalls for the heater hoses on the 2005-2009 A4?
Searches of the NHTSA database did not show any specific safety recalls for the rubber heater hoses on the 2005-2009 Audi A4. There were recalls for an auxiliary electric heater and an electric coolant pump on different model years, but these do not apply to the main heater hoses discussed here.
Helpful Videos
Technical Specifications

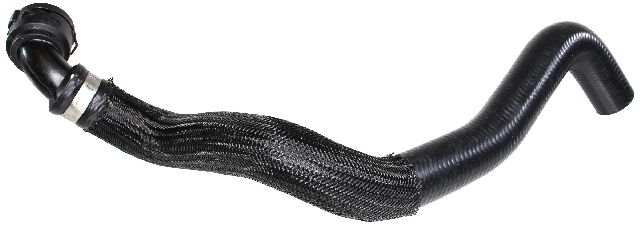

OEM Part Numbers: 8E1819371T 8E1819373R 8E1819371B
The system consists of a supply and a return hose, often with pre-molded shapes and integrated plastic quick-connect fittings.
