A Guide to the Spark Plug Wire Set for the 2005-2009 Chevrolet Equinox
Fix your Equinox's rough idle and poor performance by choosing the right new aftermarket spark plug wire set.
- For the 2005-2009 Equinox 3.4L V6, always replace spark plugs and wires together for best results.
- OEM-grade brands like ACDelco, Delphi, and NGK are highly recommended for reliability and proper fit.
- The rear three cylinders are more difficult to access but the job is achievable for a DIYer with patience.
- A flashing Check Engine Light indicates a severe misfire that can cause expensive catalytic converter damage; address it promptly.
Is Your Equinox Running Rough? It Could Be the Spark Plug Wires.
If your 2005-2009 Chevrolet Equinox is experiencing a rough idle, poor acceleration, or a flashing Check Engine Light, worn-out spark plug wires are a likely culprit. These wires operate in a harsh environment under the hood and degrade over time. When they fail, the spark plugs don't receive enough voltage, leading to incomplete combustion, also known as a misfire. This guide will help you understand the symptoms, choose the right replacement parts, and get your Equinox running smoothly again.
Choosing the Right Aftermarket Spark Plug Wire Set
When shopping for new spark plug wires, you'll find a range of brands. For a daily-driven Equinox, you don't need expensive, high-performance wires. Instead, focus on quality brands that meet or exceed original equipment (OE) specifications. They can be grouped into tiers based on quality and reputation.
Pro Tip: It is highly recommended to replace your spark plugs at the same time you replace the wires. This ensures the entire secondary ignition system is new and performs optimally. For the 3.4L V6, AC Delco Iridium plugs (part #41-101) are a highly recommended choice.
- Tier 1: OEM & Premium Aftermarket. These brands are known for being original equipment suppliers or having equivalent quality. They offer excellent fit and long-lasting performance. Look for brands like ACDelco (the genuine GM parts supplier), Delphi, NGK, and Denso. These are your safest bet for reliable, trouble-free operation.
- Tier 2: Quality Aftermarket. Brands like Standard Motor Products (SMP) and Walker Products offer a good balance of quality and value. They are a solid choice if you're looking for a more budget-friendly option without sacrificing reliability.
- Tier 3: Performance & Budget. Brands like Taylor Cable and Granatelli are often geared towards high-performance applications and may be unnecessary for a stock Equinox. Other budget-focused brands may use lower-quality materials, like jackets that aren't made of silicone, which can lead to a shorter lifespan.
Known Issues, Recalls, and TSBs
There are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for the spark plug wire sets on the 2005-2009 Chevrolet Equinox. However, there were major recalls related to the ignition switch for these model years, which could cause the engine to shut off while driving. This is a separate issue from the spark plug wires themselves. Misfire-related TSBs for this platform generally point to other causes, but worn wires are a primary cause of misfire codes like P0300-P0306.
🎬 Watch this video to see a real-world Equinox misfire diagnosis.Installation Tips
Replacing the spark plug wires on the 3.4L V6 is a straightforward job for a DIYer. The front three wires (cylinders 2, 4, 6) are easily accessible. The rear three wires (cylinders 1, 3, 5) are more difficult to reach. Moving a wiring harness out of the way can provide better access. Always replace one wire at a time to avoid mixing up the firing order. Applying a small amount of dielectric grease to the inside of the boots will make installation easier and protect against moisture.
🎬 Follow this step-by-step guide for a full tune-up and wire replacement.Cost Comparison: 2005-2009 Chevrolet Equinox Spark Plug Wire Set
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Set | $44 - $108 |
| New OEM (ACDelco) Set | $60 - $90 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions (FAQ)
What are the most common symptoms of bad spark plug wires on an Equinox?
The most common symptoms include a rough or shaky idle, engine hesitation during acceleration, a noticeable drop in fuel economy, and a flashing or solid Check Engine Light with misfire codes (P0300, P0301, P0302, etc.).
Should I replace my spark plugs when I replace the wires?
Yes, it is always recommended. The spark plugs and wires wear out together. Installing new wires with old plugs can lead to poor performance and reduce the life of the new wires. A forum consensus strongly suggests using AC Delco Iridium plugs for this engine.
Is it difficult to replace the rear spark plug wires on the Equinox 3.4L V6?

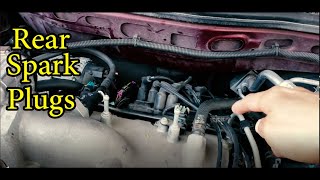

It is more challenging than the front, but it is manageable. Access is tight. Some mechanics and DIYers find it helpful to unclip and move a nearby wiring harness to create more room to work. 🎬 See this clever trick for removing those stubborn rear spark plug boots. Taking your time and replacing them one by one is key.
Are expensive 'performance' wires worth it for my stock Equinox?
No. For a standard daily-driven Equinox, high-performance wires offer no significant benefit. Quality OEM-equivalent brands like ACDelco, Delphi, or NGK provide the reliability and performance your engine was designed for without the extra cost.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19351581 89018133 89018135 19417610
The set consists of 6 wires of varying lengths, designed for the 3.4L V6 engine. Quality sets feature a silicone outer jacket for heat resistance and a carbon or wire-wound core for suppressing radio frequency interference (RFI).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
