Engine Water Pump Guide for the 2005-2009 Chevrolet Uplander
Don't let a bad water pump sideline your van; understand the symptoms, costs, and which aftermarket part to choose.
- A coolant leak from the front-center of the engine is the most common sign of a failing water pump.
- Do not drive an overheating vehicle; pull over immediately to prevent catastrophic engine damage.
- For a reliable, long-lasting repair, choose a premium aftermarket brand like ACDelco or Gates.
- Always replace the serpentine belt and flush the cooling system with fresh Dex-Cool when installing a new water pump.
Is Your Uplander's Water Pump Failing?
A failing water pump gives several warning signs before it completely breaks down. Ignoring these signs can lead to severe engine damage from overheating. If you notice any of these symptoms, it's time to inspect your cooling system.
🎬 Watch: How to diagnose a failing water pumpCritical Warning Signs
If your temperature gauge is in the red or you see steam coming from under the hood, pull over immediately and turn off the engine. Driving an overheating vehicle can cause catastrophic engine failure, including a blown head gasket or cracked engine block. Do not attempt to open the radiator cap when the engine is hot.
Choosing the Right Aftermarket Water Pump
When replacing the water pump on your 2005-2009 Uplander, you have several aftermarket options. Not all brands are created equal, but you don't necessarily need the most expensive part for a reliable repair. Aftermarket parts often provide quality that is comparable to or even exceeds the original, and at a better price.
Brand Quality Tiers
- Premium Brands (ACDelco, Gates, Dayco): These brands are well-respected leaders in cooling system parts. ACDelco is GM's own parts brand, and their components are manufactured to OE specifications for fit and durability. Gates and Dayco are trusted names for belts and cooling components, often featuring high-quality bearings and seals that ensure a long service life. Choosing one of these brands is your best bet for a long-lasting, trouble-free repair.
- Standard/Value Brands (GMB, US Motor Works): GMB is a major manufacturer that also produces parts for original equipment manufacturers, and they are known for solid quality. US Motor Works provides reliable, cost-effective options that meet or exceed basic performance standards. These are excellent choices for a balance of price and quality.
- Economy Brands (Skyward, WJB): These brands offer the most budget-friendly solutions. They are a viable option if the primary concern is the upfront cost of the repair. While functional, their longevity may not match that of premium or standard brands.
Known Issues for This Vehicle
While there are no specific recalls for the water pump on the 2005-2009 Chevrolet Uplander, a notable Technical Service Bulletin (TSB) exists for a related issue. TSB #07-06-02-006E points to coolant leaks from the coolant crossover pipe gaskets 🎬 See how to replace these coolant crossover gaskets on the 3.5L and 3.9L engines. A leak in this area can be mistaken for a water pump leak. It is crucial to properly diagnose the source of the leak before replacing parts. A technician can perform a cooling system pressure test to pinpoint the exact location of the failure.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $36.00 - $160.71 |
| Shop Labor | $182 - $251 |
| Total Professional Installation | $218 - $412+ |
Pro Tip: Replace More Than Just the Pump
Since the water pump is driven by the serpentine belt, it is highly recommended to replace the belt and belt tensioner at the same time. These components have to be removed for the job anyway, so you'll only pay for the parts. It's also mandatory to perform a coolant flush to remove old fluid and any contaminants.
Frequently Asked Questions
Can I drive my Uplander with a bad water pump?
No. A failing water pump cannot circulate coolant effectively, which will cause the engine to overheat quickly. Continuing to drive can lead to thousands of dollars in engine damage. If you suspect a water pump failure, you should have the vehicle towed to a repair shop.
What is the 'weep hole' and why is it leaking?
The weep hole is a small opening on the bottom of the water pump. It is designed to let a small amount of coolant escape when the internal seals start to fail. If you see coolant dripping from this hole, it is a clear sign that the water pump needs to be replaced soon.
How difficult is it to replace the water pump myself?
For a DIY mechanic, this job is moderately difficult. It takes about three hours and requires removing the fuse box and serpentine belt to gain access. You will need a good set of metric wrenches and a tool to release the tension on the belt tensioner. 🎬 Watch this step-by-step Uplander water pump replacement guide The bolts for the water pump pulley should be loosened before you remove the belt.
What kind of coolant does the 2005-2009 Uplander use?
Your Chevrolet Uplander requires a specific type of coolant called Dex-Cool. It is an orange-colored, long-life antifreeze. Using the wrong type of coolant can cause corrosion and damage to the cooling system components, including the new water pump.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12630029 12586848 89018034

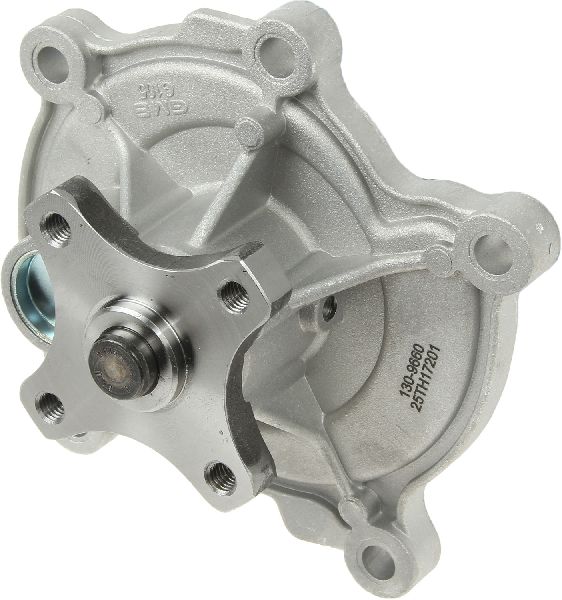

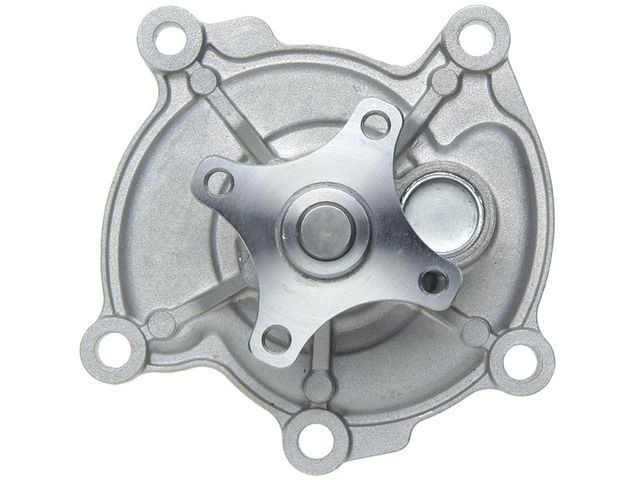

The water pump on the 2005-2009 Chevrolet Uplander is driven by the serpentine belt. It features an aluminum housing and a steel impeller. The pump bolts directly to the engine block and does not include the pulley, which must be swapped from the old unit.
