Chevrolet Uplander Starter Motor Guide for 2005-2009 Models
If your Chevrolet Uplander just clicks when you turn the key, this guide will help you understand the problem and choose the right replacement starter.
- The most common failure symptom is a single, loud click with no engine crank; always check the battery first.
- There are no recalls for the starter, but GM has issued Technical Service Bulletins (TSBs) for intermittent no-start conditions.
- Replacement is a DIY-friendly job, located at the front-bottom of the engine and requiring basic tools.
- Crucially, you must verify if your Uplander has the 3.5L or 3.9L V6 engine, as they may require different starters.
Is Your Uplander's Starter Failing?
A starter motor usually gives warning signs before it fails completely. For the 2005-2009 Chevrolet Uplander, the symptoms are often very clear. Before you assume the starter is bad, always make sure your battery is fully charged and the battery terminals are clean and tight. A weak battery can cause very similar symptoms.
Common Symptoms of a Bad Starter:
- Single Loud Click, Then Nothing: This is the most common sign. When you turn the key, you hear one distinct click from the engine bay, but the engine doesn't crank. This click is the starter's solenoid trying to engage, but the motor itself fails to turn.
- Intermittent Starting: The van starts fine sometimes, but other times it just clicks or does nothing. You might have to try turning the key multiple times before it finally cranks. This points to worn internal components in the starter.
- Grinding Noise: If you hear a grinding or whirring sound when trying to start the engine, it could mean the starter gear is not engaging properly with the engine's flywheel, or the gear is damaged.
- No Sound at All: While less common, a completely dead starter might make no noise whatsoever. This could also point to other issues like the ignition switch or starter relay.
Vehicle-Specific Known Issues
While there are no official recalls for the starter motor on the 2005-2009 Uplander, General Motors has issued several Technical Service Bulletins (TSBs) related to starting problems. These include:
- TSB #3763A: Addresses an "Intermittent No Crank, No Start and/or Dead Battery" condition.
- TSB #3550: Notes a problem where the "Starter Stays Engaged After Engine Starts."
- TSB #4072: Discusses "Hard Start, No Start" issues related to corrosion at a specific electrical connector.
These bulletins show that starting system problems are a known issue for these vans.
Choosing the Right Aftermarket Starter
When shopping for a new aftermarket starter, you'll see different brands and price points. The price range of $56.04 to $243.08 reflects differences in brand, warranty, and whether the part is new or remanufactured.
Important: The Uplander was available with a 3.5L V6 engine (2005-2009) and a 3.9L V6 engine (2006-2009). These engines may use different starters. Always verify the part fits your specific engine size before purchasing.
New vs. Remanufactured

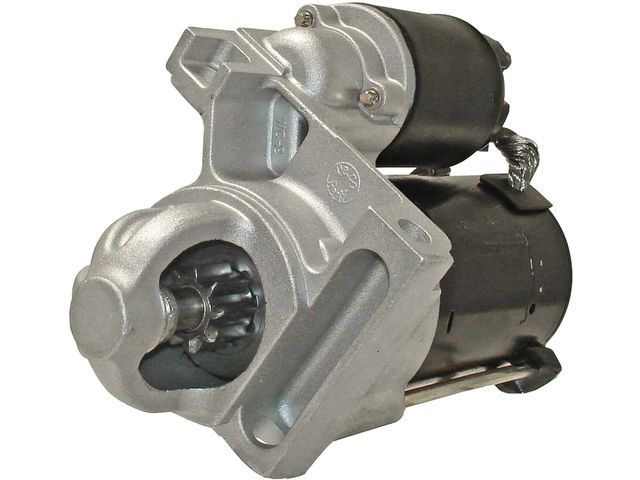

- New Aftermarket Starters: These are made with 100% new components. Brands like ACDelco offer new starters that are built to meet or exceed original specifications. They often provide excellent reliability and peace of mind, sometimes at a lower cost than a remanufactured unit from the original manufacturer.

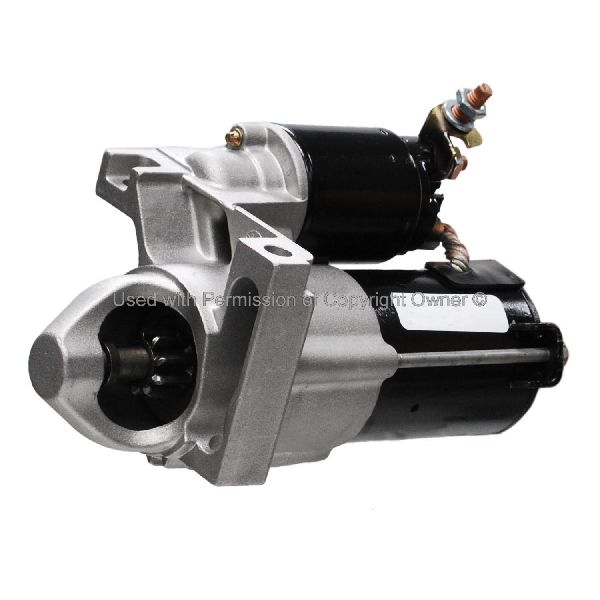

- Remanufactured Starters: These are original starter cores that have been rebuilt. Worn components are replaced, and the unit is tested to ensure it functions correctly. A quality remanufactured starter from a brand like MPA (Motor Parts of America) can be a cost-effective and reliable option.
Brand Quality: ACDelco and MPA
ACDelco is GM's own parts brand and is a trusted name. Their 'Gold' or 'Professional' series parts are high-quality aftermarket options. MPA is a large, reputable remanufacturer. For a vehicle like the Uplander, a premium new aftermarket starter or a quality remanufactured one are both solid choices that can offer performance and longevity comparable to the original part.
| Part Type | Estimated Part Cost |
|---|---|
| New Aftermarket | $56 - $243 |
| Remanufactured Aftermarket | $80 - $180 |
| New OEM (Dealer) | $250 - $450 |
| Shop Labor | $75 - $160 |
Frequently Asked Questions (FAQ)
How do I know if it's the starter and not the battery?
A simple test is to turn on your headlights and then try to start the van. If the headlights dim significantly or go out completely, you likely have a weak battery or bad connection. If the headlights stay bright and you just hear a click or nothing, the starter is the more likely culprit.
How hard is it to replace the starter on a Chevy Uplander?
For a DIYer with some experience, it's a manageable job. The starter is located at the bottom front of the engine. Access requires safely lifting the front of the vehicle. The job involves removing a couple of bolts and electrical connections. An experienced person can do it in under an hour, while a novice should plan for 1 to 1.5 hours.
Are there any recalls for the Uplander starter?
No. There are no safety recalls from the NHTSA for the starter motor on the 2005-2009 Chevrolet Uplander.
Can I use a starter from a 3.5L engine on my 3.9L engine?
No, you should not assume they are interchangeable. The mounting points or electrical specifications can be different. Always use a catalog to confirm the part number is correct for your specific year and engine size before buying.
Technical Specifications
OEM Part Numbers: 12594441 89017761
Voltage: 12V, Power Output: 1.2kW to 1.4kW, Rotation: Clockwise, Pinion Teeth: 9. Note: Specifications can vary between the 3.5L and 3.9L engine models.
