2005-2009 Dodge Durango Windshield Washer Pump: A Complete Guide
If your washer fluid isn't spraying, the pump is the likely culprit. Here’s how to choose the right replacement for your Durango.
- The 2005-2009 Durango uses one dual-outlet pump for both front and rear washers.
- Before replacing the pump, always check the fluid level and the fuse first.
- Replacement is a simple DIY task that can be done in under 30 minutes without removing the reservoir.
- Always replace the rubber grommet seal when installing a new pump to prevent leaks.
Is Your Durango's Washer Pump Failing?
A failing windshield washer pump is more than an annoyance; it's a safety issue in bad weather. Before you assume the pump is bad, check the simple things first. Make sure your washer fluid reservoir is full. Then, check the fuse for the washer system in your vehicle's fuse box. If the fuse is good, listen for the pump motor when you activate the switch. These simple checks can save you from buying a part you don't need.
🎬 Watch: Troubleshooting tips to find out why your fluid isn't spraying.Symptoms of a Bad Windshield Washer Pump
- No Sound, No Spray: If you activate the washers and hear nothing from the front driver's side of the vehicle, the pump motor has likely failed completely.
- Motor Hums, But No Fluid Sprays: If you can hear the pump running but no fluid comes out, the pump's internal impeller may be broken. However, this symptom can also point to clogged or disconnected hoses, or a clogged filter grommet at the base of the pump.
- Weak or Inconsistent Spray: A dying pump may lose its ability to create enough pressure, resulting in a weak stream of fluid that doesn't effectively clean the windshield.
- Only Front or Rear Sprayers Work: Since a single pump operates both systems, a failure of just one side could indicate a blockage in that specific line or an internal failure in the dual-function pump.
Pro Tip: Before replacing the pump, disconnect the hose right at the pump outlet and have a friend activate the switch. If fluid squirts out, the pump is working and your problem is a clog or leak downstream in the hoses or nozzles.
🎬 Watch: How to fix weak or clogged Durango washer sprayers.Choosing the Right Aftermarket Pump
For the 2005-2009 Durango, you don't need to pay high dealership prices for a reliable washer pump. Quality aftermarket brands provide a cost-effective and dependable alternative to the original Mopar part.
- OEM (Mopar): The original factory part is a guaranteed fit but comes at a premium price. The most common part number is 5103452AA.

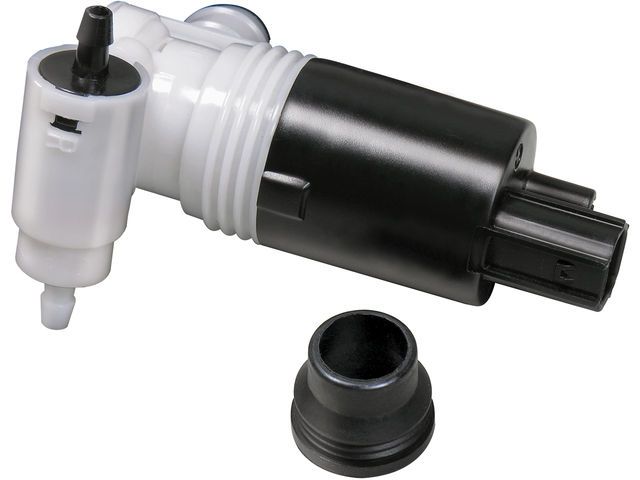

- ACDelco: While traditionally a GM parts supplier, ACDelco offers a wide range of quality aftermarket parts for many makes and models. They are known for reliable, OE-comparable components.
- Crown Automotive: Crown specializes in parts for Chrysler, Dodge, and Jeep vehicles. They are a go-to aftermarket source for parts that fit and function like the original.

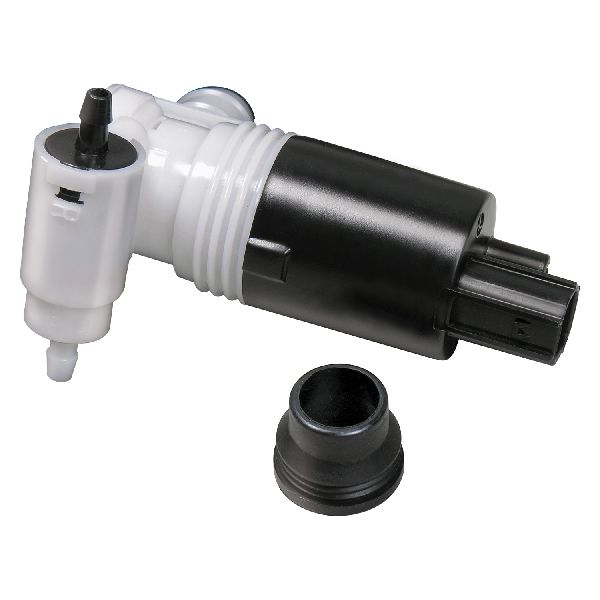

- Trico: Famous for wiper blades, Trico also manufactures washer system components. Their pumps are often designed for easy installation and reliable performance.
For a simple component like a washer pump, any of these aftermarket brands will offer good performance and value. The most important factor is ensuring the pump is listed as a direct fit for your 2005-2009 Durango to ensure the electrical connector and mounting points match.
Cost of Replacing a Dodge Durango Washer Pump
The cost to replace the washer pump is very reasonable, especially if you do it yourself. The job is simple and requires no special tools.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Mopar) | $85 - $185 |
| New Aftermarket | $47.52 - $57.11 |
| Shop Labor | $50 - $100 |
Related Issue: Wiper Motor Recall
There was a recall (NHTSA #06V067000) for the windshield wiper motor on some 2005-2006 Dodge Durango models. The motor's armature shaft could break, causing the wipers to fail. This is a separate part from the washer pump, but it's a critical safety issue to be aware of for these model years.
Frequently Asked Questions
Where is the washer pump located on a 2005-2009 Durango?
The washer pump is located on the driver's side of the vehicle, mounted to the bottom of the washer fluid reservoir. You can access it by reaching between the front of the left front wheel well liner and the bumper, without needing to remove the reservoir itself.
Is it hard to replace the washer pump myself?
No, this is a very easy DIY job. It typically takes less than 30 minutes and requires basic hand tools. The process involves siphoning the fluid, disconnecting one electrical plug and two hoses, and pulling the old pump out of its rubber grommet.
🎬 See this step-by-step walkthrough for replacing the washer pump yourself.Do I need to replace the rubber grommet with the pump?
Yes, it is highly recommended. The rubber grommet acts as a seal and a filter screen. It can become brittle and leak over time. Most new pumps come with a new grommet, and service manuals advise discarding the old one.
Is there a separate pump for the rear window?
No, the 2005-2009 Durango uses a single pump with two outlets. One outlet feeds the front windshield nozzles, and the other feeds the rear window nozzle. The pump motor reverses direction to send fluid to the correct destination.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5103452AA 55077241AA 5015938AA 55077241AB 5012602AA
Dual outlet pump for front and rear washer systems.
