A Ford F-150 Owner's Guide to 2005-2009 Spark Plugs
Tackling the 5.4L Triton spark plug job requires the right parts and knowledge to prevent breakage.
- For 5.4L 3V engines, the original two-piece spark plugs are likely to break upon removal.
- Always replace the original plugs with a modern, one-piece design from brands like Motorcraft (SP-515), NGK, or Champion.
- Due to the high risk of breakage, this job is best left to a professional mechanic with the proper tools.
- There was no safety recall, but Ford issued a Technical Service Bulletin (TSB 08-7-6) for the removal procedure.
The Most Important Thing to Know: The 5.4L 3-Valve Engine Issue
If your 2005-2009 F-150 has the 5.4L 3-valve Triton V8, you need to pay close attention. These engines, built before October 2007, used a two-piece spark plug design from the factory. This design is known to cause a major problem: the lower part of the plug can seize inside the cylinder head due to carbon buildup. When you try to remove the old plug, it can break, leaving the bottom half stuck in the engine. This turns a simple maintenance job into a difficult and expensive repair. Ford even issued a Technical Service Bulletin (TSB 08-7-6) with a special procedure for removing these plugs to reduce the risk of breakage.
Warning: High Risk of Breakage

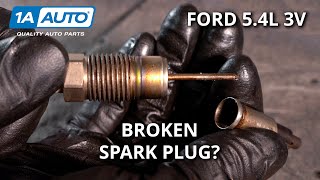

The original two-piece spark plugs on 5.4L 3V engines can break during removal, even when following the correct procedure. This requires a special extraction tool (like the Lisle 65600) 🎬 See how to use the Lisle tool to remove broken plugs. and adds significant time and cost to the job. The 4.6L V8 and 4.2L V6 engines in the same year range do not have this issue.
Choosing the Right Aftermarket Spark Plugs
The best way to prevent future problems is to replace the original two-piece plugs with a modern, one-piece aftermarket design. Many brands saw this problem and created better plugs that will not separate during removal.
Brand & Material Tiers
- Top Tier (Iridium/Platinum One-Piece): Brands like NGK, Denso, and the updated Motorcraft SP-515 are highly recommended by owners and mechanics. They offer a one-piece design that eliminates the breakage issue. Iridium and platinum plugs also last longer and provide consistent performance, though they are more expensive.
- Mid-Grade (Platinum/Copper One-Piece): Champion and Autolite were among the first to offer one-piece solutions. The Champion Double Platinum Power #7989 is specifically mentioned as a problem-solver for this engine. These are solid, reliable choices that are often more affordable than top-tier iridium plugs.
- Budget-Friendly (Copper): Basic copper plugs from brands like Bosch or Accel will work, but they have a much shorter lifespan and may not offer the same performance consistency. For the 5.4L 3V engine, it is more important to focus on the one-piece design than the material alone.
Pro Tip: Always Use a One-Piece Design
Regardless of the brand you choose for a 5.4L 3V engine, make sure it is a one-piece design. This is the single most important factor in preventing future headaches. Ford eventually updated their own Motorcraft plugs to a one-piece design (part number SP-515) to solve this problem.
Cost to Replace Spark Plugs on a 2005-2009 Ford F-150
| Item | Estimated Cost |
|---|---|
| Aftermarket Spark Plugs (Set of 8) | $20 - $230 |
| Shop Labor (No broken plugs) | $200 - $400 |
| Shop Labor (With broken plugs) | $500 - $1000+ |
Note: Labor costs can increase significantly if plugs break during removal. Each broken plug can add 30 minutes or more to the job.
Frequently Asked Questions
Were there any recalls for this spark plug issue?
No. While the problem was widespread, the National Highway Traffic Safety Administration (NHTSA) did not issue a formal safety recall. However, a class-action lawsuit was settled, providing some reimbursement to owners who paid for repairs related to broken plugs.
🎬 Learn more about the Ford spark plug class action settlement.Can I replace these spark plugs myself?
For the 5.4L 3V engine, this job is difficult and risky for a DIY mechanic. The potential for a plug to break is high, and removing a broken plug requires a special tool and experience. If you are not an experienced mechanic, it is recommended to have a professional shop perform this service. 🎬 Watch: Step-by-step guide to replacing these plugs without breaking them. For the 4.6L engine, the job is much more straightforward.
Should I use anti-seize on the new plugs?
Yes, but only in a specific way for the 5.4L 3V engine. Ford's TSB recommends applying a film of high-temperature nickel anti-seize lubricant only to the ground electrode shield (the long barrel at the bottom), NOT on the threads. Putting anti-seize on the threads can cause you to overtighten the plug and can affect the electrical grounding. The updated Motorcraft plugs often come with a special coating on the threads and do not require anti-seize there.
What is the torque specification for the new spark plugs?
The recommended torque specification for the new one-piece plugs is typically 25 lb-ft (34 N-m). Always install them into a cool engine and tighten with a torque wrench. Do not use power tools for installation.
Helpful Videos
Technical Specifications
OEM Part Numbers: SP-515 SP-546 SP-507
Engine compatibility: 4.2L V6, 4.6L 2V/3V V8, 5.4L 3V V8. The 5.4L 3V engine requires special attention due to a two-piece OEM plug design used in models built before 10/9/07.
