Universal Joint Replacement Guide for the 2005-2009 Ford F-150
Address that clunking, squeaking, or vibration from your drivetrain by choosing the right replacement U-joints for your truck.
- A clunking noise when shifting into gear is the most common sign of a failing U-joint on an F-150.
- Choose between greasable joints for longevity with maintenance, or non-greasable for strength and a maintenance-free design.
- Spicer is widely considered the top-tier replacement brand, often equivalent to OEM quality.
- Replacing U-joints is a feasible DIY task but requires a specific tool like a ball joint press to avoid damaging the driveshaft.
Is Your F-150's U-Joint Failing?
A failing U-joint on your 2005-2009 F-150 will give you clear warning signs. Because these trucks are often used for heavy hauling and towing, the U-joints are put under significant stress, which can lead to wear over time. Ignoring these symptoms can lead to driveshaft failure, which is a critical and dangerous situation.
Common Failure Symptoms:
🎬 Watch a video demonstrating these common F-150 U-joint failure noises.- Clunking or Ringing Noise: A distinct "clunk" when you shift from Park into Drive or Reverse is a classic sign of a worn U-joint with excessive play.
- Squeaking at Low Speeds: A repetitive squeak, often heard under 10 mph, points to a U-joint that has lost its internal lubrication.
- Vibration While Driving: A vibration that you can feel through the floor or seats, especially at highway speeds, often means a U-joint is worn and causing the driveshaft to become unbalanced.
- Fluid Leaks: In severe cases, a failing U-joint can cause enough vibration to damage the seals on your transmission or differential, leading to fluid leaks.
Choosing the Right Aftermarket U-Joint
When replacing U-joints, you have a choice between OEM (original equipment manufacturer) parts and a wide variety of aftermarket options. For the 2005-2009 F-150, many aftermarket brands offer quality that meets or exceeds the original parts. A key decision is choosing between greasable and non-greasable (sealed) U-joints.
Greasable vs. Non-Greasable U-Joints
Greasable U-joints, like many offered by Moog and Yukon Gear, have a zerk fitting that allows you to add fresh grease periodically. This can flush out contaminants and extend the part's life, but it requires regular maintenance. Non-greasable U-joints, like many from Dana Spicer, are sealed from the factory. They are considered slightly stronger because the cross is solid, with no hole drilled for a grease channel. They are maintenance-free, but if the seal fails, the joint cannot be re-lubricated and must be replaced. If you are diligent with maintenance, a greasable joint may last longer; if not, a quality sealed joint is a better choice.
Aftermarket Brand Tiers for Your F-150
Based on owner feedback and industry reputation, aftermarket U-joints for your F-150 can be grouped into the following tiers:
- Premium (OEM Quality or Better): Brands like Dana Spicer and SKF are highly regarded. Spicer is a trusted OEM supplier, and many truck owners consider their parts the go-to for reliability. SKF is also known for high-quality bearings and driveline components.
- Trusted Aftermarket: Moog is a well-known brand with a reputation for strong, often greasable, "problem-solver" parts. Yukon Gear & Axle offers heavy-duty chromoly steel U-joints, which are excellent for trucks that see heavy use or off-road conditions.
- Value-Oriented: GMB is a reliable brand that offers a good balance of quality and affordability for daily driving and light-duty use.
A Note on Staked-In U-Joints
🎬 See what these non-serviceable staked-in joints look like on your truck.Some 2004-2007 F-150 models came from the factory with "staked-in" or non-serviceable U-joints, which are crimped into the driveshaft instead of being held by clips. While special replacement kits exist, the process is difficult and often not cost-effective. If you have staked-in joints, it is often recommended to have a driveshaft shop perform the replacement or consider replacing the entire driveshaft with a serviceable unit.
Cost of Replacing a 2005-2009 Ford F-150 U-Joint
The cost can vary depending on the brand of the part and local labor rates. Most F-150s have at least two U-joints on the rear driveshaft, and it's recommended to replace them in pairs.
| Item | Estimated Cost |
|---|---|
| Aftermarket U-Joint Part (Single) | $18 - $75 |
| Shop Labor | $140 - $205 per joint |
| Total Professional Replacement (per joint) | $160 - $280 |
Frequently Asked Questions
How many U-joints does my 2005-2009 F-150 have?
A 2WD F-150 typically has two U-joints on its one-piece rear driveshaft. A 4WD model has those two, plus two more on the front driveshaft. Trucks with a two-piece rear driveshaft (common on longer wheelbase models) will have an additional U-joint and a center support bearing.

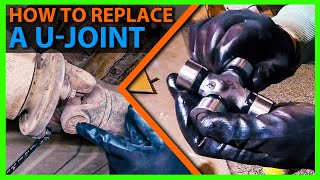

Is replacing a U-joint a DIY job? 🎬 Follow this step-by-step guide to replacing U-joints on your F-150.
Yes, if you have the right tools. The job requires removing the driveshaft, which is held on by 12-point bolts. You will need a special tool like a ball joint press or a large bench vise with appropriate sockets to press the old joint out and the new one in without damaging the driveshaft. Many auto parts stores offer loaner tool programs for this press.
Should I have the driveshaft balanced after replacing the U-joints?
It is good practice, especially if you were experiencing significant vibrations before the repair. Marking the driveshaft's orientation before removal and reinstalling it the same way can help maintain its balance. However, for a perfectly smooth ride, having a driveshaft shop check the balance is recommended.
Were there any recalls for U-joints on the 2005-2009 F-150?
Searches of the NHTSA database did not show any specific recalls for universal joints on the 2005-2009 Ford F-150. Recalls for this generation were related to other components.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4L3Z4635AB ML3Z-4635-BA
The 2005-2009 F-150 uses several U-joint sizes depending on the driveshaft (one-piece vs. two-piece) and drivetrain (2WD vs. 4WD). Common series include 1310 and 1350. It is critical to measure your existing U-joint caps or use your vehicle's specific sub-model information to ensure you purchase the correct size. Some early models in this generation may have non-serviceable, staked-in joints.
