Throttle Position Sensor Issues and Solutions for the 2005-2009 GMC Envoy
If your Envoy is hesitating or in 'Reduced Engine Power' mode, the throttle sensor is a likely cause.
- For the 4.2L I6 engine, you must replace the entire throttle body; the sensor is not separate.
- For the 5.3L V8 engine, you can replace the standalone aftermarket sensor.
- The 'Reduced Engine Power' message is the most common symptom of a failed sensor.
- Owners of 2008-2009 V8 models should check for GM's Special Coverage before paying for repairs.
Is Your Envoy's Throttle Position Sensor Failing?
A problem with the throttle position sensor is one of the most common issues for the 2005-2009 GMC Envoy. Symptoms often start as minor annoyances but can quickly become serious, leaving you with a vehicle that is unsafe to drive. The most common and alarming sign is the "REDUCED ENGINE POWER" message on your dashboard. 🎬 Watch: Understanding Reduced Engine Power mode and how to fix it This is a safety feature, or 'limp mode,' that drastically limits your speed and acceleration to prevent engine damage when a critical sensor fails.
The Critical Difference: 4.2L I6 vs. 5.3L V8 Engines
Before buying any parts, you must know which engine your Envoy has. This determines how you will fix the problem.
- For the 4.2L Inline-6 Engine (Most Envoys): The Throttle Position Sensor (TPS) is built into the electronic throttle body assembly. It is not sold as a separate part. If the sensor fails, you must replace the entire throttle body unit. While this sounds like a bigger job, it is still very straightforward for a DIY mechanic. 🎬 See this walkthrough for troubleshooting and replacing the 4.2L throttle body
- For the 5.3L V8 Engine (Envoy Denali): The TPS is a separate sensor that can be unbolted and replaced on its own. This article focuses on these new aftermarket sensors.
Special Coverage for V8 Models
General Motors issued a Special Coverage Adjustment (Bulletin No. 11273A) for some 2008-2009 V8-equipped GMC Envoys. This program extended the warranty for a failing throttle position sensor to 10 years or 120,000 miles. If you own one of these model years, it is worth checking with a GM dealer to see if your vehicle is covered, even if you are outside the original warranty.
Choosing the Right Aftermarket Part
When replacing the TPS on your 5.3L V8, you have several brand choices. For a critical sensor like this, brand quality matters. An unreliable sensor can cause the same problems to return.
- Premium Aftermarket (NGK, Standard Ignition): Brands like NGK (under their NTK sensors line) and Standard Motor Products (SMP) are well-regarded in the industry. They are known for manufacturing parts that meet or exceed original equipment (OE) specifications and undergo rigorous testing. These are a reliable choice for a long-term repair.
- Standard Aftermarket (Motorad): Motorad is a widely available brand that offers a more budget-friendly option. They state their parts are manufactured to high standards and tested for performance.
- Value Brands (Global Parts, etc.): These are often the most affordable but may have a higher risk of premature failure. For a sensor that can leave you stranded, investing a few extra dollars in a premium brand is often wise.
Pro Tip: Many owners have chased this problem by replacing part after part. Before replacing the sensor, check the wiring harness and connector for any damage, corrosion, or loose pins. Sometimes the problem is in the connection, not the sensor itself.
Cost to Replace a GMC Envoy Throttle Position Sensor
| Part / Service | Estimated Cost (5.3L V8) | Estimated Cost (4.2L I6) |
|---|---|---|
| New Aftermarket TPS | $67 - $83 | N/A (Integrated) |
| New Aftermarket Throttle Body | N/A | $70 - $200 |
| New OEM Throttle Body | N/A | $270 - $335+ |
| Shop Labor | $100 - $175 | $100 - $175 |
Frequently Asked Questions
Can I just clean the throttle body instead of replacing it?
If your only symptom is a slightly sticky or rough idle, a thorough cleaning of the throttle plate might help. However, if your vehicle is in 'Reduced Engine Power' mode or you have diagnostic codes like P2135, cleaning will not fix the failed internal electronics. Replacement is the only reliable fix.
Is this a difficult job to do myself?
No, this is considered a beginner-friendly DIY job for both the 4.2L and 5.3L engines. The throttle body is easily accessible on top of the engine. The job requires only basic hand tools like 8mm and 10mm sockets and can be done in under an hour.
What is a 'relearn' procedure and do I need to do it?
After installing a new sensor or throttle body, the engine computer needs to adapt to the new part. This is called a relearn procedure. Sometimes the computer will learn on its own after some driving. A common manual procedure is to idle the engine for 3 minutes, turn it off for 1 minute, repeat, and then drive the vehicle.
🎬 Watch: How to perform a throttle body relearn on V8 enginesWhy did my 'Reduced Engine Power' light come back on with a new part?
This can be frustrating. It could be a defective new part, but it's often caused by another issue. The problem could be a poor connection, damaged wiring, or a fault in another component that shares the same 5-volt reference circuit, like the fan clutch or accelerator pedal sensor.

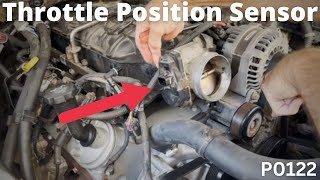

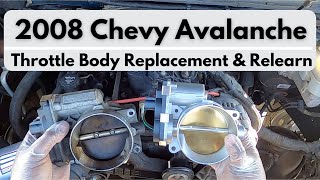

Helpful Videos
Technical Specifications
OEM Part Numbers: 12568580 12629992 12679524 19420713
For the 5.3L V8, the sensor is a standalone electronic component mounted to the throttle body. For the 4.2L I6, the sensor is integrated into the electronic throttle body assembly.
