Your Guide to the 2005-2009 Kia Spectra5 Radiator
Learn about common radiator problems and how to choose the right replacement for your Spectra5.
- The most common radiator failure on the Spectra5 is a cracked plastic side tank, causing leaks and overheating.
- Driving with an overheating engine or a major coolant leak can cause catastrophic engine damage.
- Aftermarket radiators for automatic transmissions can be used on manual cars; just leave the extra ports unconnected.
- When replacing the radiator, it's best to also replace the radiator cap, thermostat, and hoses to ensure a reliable repair.
Is Your Spectra5 Radiator Failing?
A bad radiator can cause serious engine damage if you ignore the warning signs. The most common issue for the 2005-2009 Kia Spectra5 is the plastic side tanks cracking from heat and pressure over time. This leads to coolant leaks and engine overheating.
Common Failure Symptoms
- Engine Overheating: The temperature gauge on your dashboard goes into the red. This is the most serious sign.
- Visible Coolant Leaks: You may see puddles of green, pink, or yellow fluid under the front of your car. This fluid has a sweet smell.
- Steam from Hood: White, sweet-smelling steam coming from the engine bay means coolant is leaking onto hot parts.
- Low Coolant Light: Having to add coolant to the reservoir often means you have a leak.
Choosing the Right Aftermarket Radiator
You don't need to buy an expensive original part from the dealer. Aftermarket radiators can be a high-quality, affordable choice. They are often built to the same standards as the original part.
Brand Quality Tiers
When shopping for a replacement, you'll find several brands. Here’s a general breakdown:

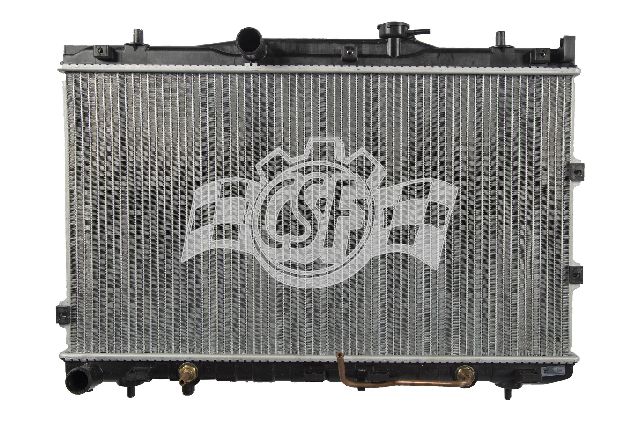

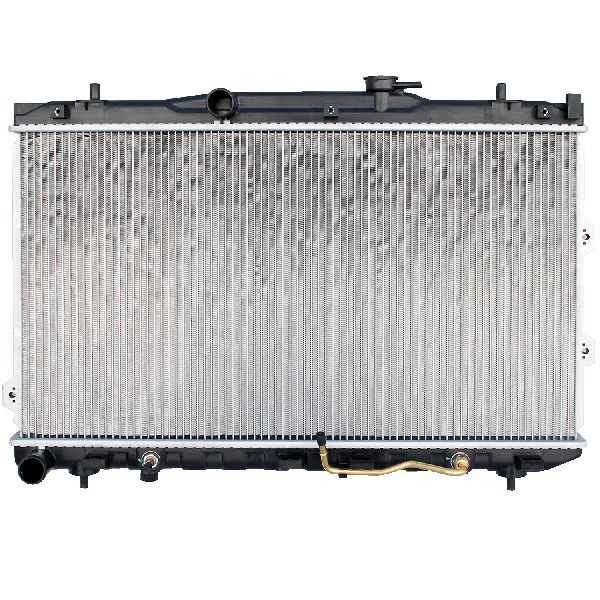

- OEM-Quality Brands (Denso, CSF, Nissens): Denso is often an original equipment manufacturer for many car brands. CSF and Nissens are well-respected aftermarket brands known for good quality and fit. These are excellent choices for reliability.

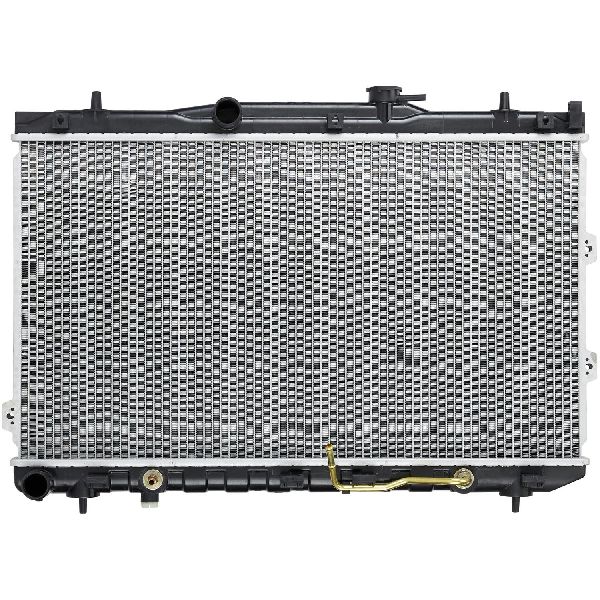

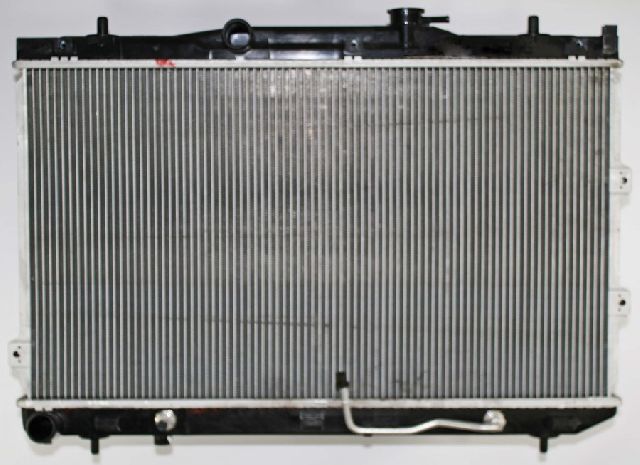

- Standard Aftermarket (APDI, Spectra, Pro Parts): These brands offer a good balance of price and quality. They are a popular choice for many daily drivers. Be aware that the brand "Spectra" is different from your car's model name.
- Value-Oriented Brands (Global Parts, Onix, One Stop Solutions): These are typically the most affordable options. They can be a good choice if budget is your main concern, but always check reviews for fit and finish.
An Important Ordering Note
Most aftermarket radiators for the Spectra5 are designed to fit both automatic and manual transmission models. These radiators will have two extra small ports for the automatic transmission cooler. If you have a manual transmission, you can simply install the radiator and leave these ports open; they will not be used. You cannot, however, use a radiator made only for a manual transmission on a car with an automatic transmission.
Known Issues, Recalls, and Service Bulletins
There are no official recalls from the National Highway Traffic Safety Administration (NHTSA) for the radiator on the 2005-2009 Kia Spectra5. The most common known issue is cracks forming on the plastic side tanks of the radiator over time. In some cases, symptoms of a bad radiator like coolant smell and overheating can be mistaken for a cylinder head gasket leak, which was noted in a Technical Service Bulletin (TSB) for some Kia models. If you don't see an obvious radiator leak, it's a good idea to have a mechanic pressure test the system.
🎬 Watch: Expert mechanic shows you how to find coolant leaks.Cost of Replacing a Kia Spectra5 Radiator
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Radiator | $108 - $186 |
| Shop Labor | $150 - $250 |
| Total Professional Replacement 🎬 See this walkthrough to replace the radiator yourself and save. | $258 - $436 |
Note: Prices are estimates and can vary based on your location and the specific parts used.
Frequently Asked Questions
Should I replace the radiator cap and hoses at the same time?
Yes, it is highly recommended. The radiator cap holds pressure in the system, and old hoses can become brittle and fail soon after a new radiator is installed. Replacing these inexpensive parts at the same time saves you from having to do the job twice.
Can I use stop-leak products for a small leak?
Stop-leak additives are not recommended as a permanent fix. They can sometimes clog the small passages in your radiator and heater core, leading to bigger problems down the road. It's always best to replace a leaking radiator.
Is green coolant the only type I can use?
Not necessarily. While many Kias originally used green coolant, the color is not as important as the coolant's chemical formula. Always use a coolant that is specified as compatible with Asian vehicles. Check your owner's manual or the coolant bottle to be sure.
Do I need to "burp" the cooling system after replacement?
Yes. After refilling the coolant, you need to run the engine with the heater on high to get all the air bubbles out of the system. Air trapped in the system can cause overheating even with a new radiator.
🎬 Watch: How to properly flush and refill your cooling system.Helpful Videos
Technical Specifications
OEM Part Numbers: 25310-2F030 25310-2F071 25310-2F100 25310-2F300
Core Material: Aluminum; Tank Material: Plastic. Most aftermarket versions are universal fit for both automatic and manual transmissions, and will include a transmission oil cooler.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
