A Guide to the 2005-2009 Land Rover LR3 Mass Air Flow Sensor
Solve rough idling, poor fuel economy, and the 'Restricted Performance' message by understanding your LR3's MAF sensor.
- A 'Restricted Performance' warning is a primary symptom of a failing MAF sensor on an LR3.
- Before replacing, always try cleaning the sensor with a dedicated MAF sensor cleaner spray.
- Replacement is extremely easy, requiring only a T15 or T20 Torx driver and less than 15 minutes.
- For best results, choose an OEM-level brand like Denso or Delphi; cheaper aftermarket parts can be problematic on Land Rovers.
Symptoms of a Failing MAF Sensor in an LR3
When the MAF sensor on your LR3 gets dirty or starts to fail, it sends incorrect information to the engine's computer. This can lead to a variety of noticeable problems. Many owners first 🎬 Watch a detailed breakdown of common bad MAF sensor symptoms. notice a "Restricted Performance" warning message on the dashboard, which puts the vehicle into a safety mode with reduced power.
- Rough Idle: The engine may shake or idle unevenly because the air-fuel mixture is not balanced.
- Poor Acceleration and Hesitation: Your LR3 might feel sluggish, hesitate, or jerk when you press the gas pedal.
- Decreased Fuel Economy: An incorrect air-fuel ratio often means the engine uses more fuel than necessary.
- Check Engine Light: A failing MAF sensor will often trigger the check engine light. Common trouble codes include P0101 (MAF Circuit Range/Performance), P0102 (Low Input), P0103 (High Input), P0171 (System Too Lean Bank 1), and P0174 (System Too Lean Bank 2).
- Black Exhaust Smoke: If the sensor causes the engine to run too rich (too much fuel), you may see black smoke from the tailpipe.
- Hard Starting: The engine may be difficult to start or may not start at all if the fuel mixture is too far off.
Choosing the Right Aftermarket MAF Sensor
When replacing the MAF sensor on your LR3, you have options ranging from budget-friendly to OEM-quality aftermarket parts. For a sensitive vehicle like a Land Rover, choosing a quality part is important to avoid further issues. Some owners report that cheap, unbranded aftermarket sensors can be faulty right out of the box or fail quickly.
Aftermarket Brand Tiers for Land Rover LR3
| Tier | Brands | Notes |
|---|---|---|
| OEM-Level & Trusted Aftermarket | Hitachi, Denso, Delphi | These brands are often the original equipment manufacturers for many automakers. Denso and Delphi are specifically mentioned as reliable options by LR3 owners. They are engineered to match the original part's performance and are highly recommended for best results. |
| Standard Aftermarket | Beck Arnley, Spectra, Walker Products, Standard Ignition (SMP), Bremi | These are well-known aftermarket brands that produce a wide range of parts. They generally offer a good balance of quality and value. Walker Products, for example, states their sensors are 100% new and tested to OE specifications. |
| Budget-Friendly | Cardone (Remanufactured), DriveWire, Global Parts | These brands provide a more affordable option. While they can be a good value, be aware that some owners have experienced issues with lower-cost sensors on Land Rovers, sometimes leading to immediate check engine lights. A remanufactured part like one from Cardone can be a cost-effective choice if it has been properly rebuilt and tested. |
Pro Tip: Try Cleaning It First! Before buying a new sensor, try cleaning your current one. Oil and dirt can build up on the sensor's delicate wire, causing incorrect readings. Purchase a can of MAF sensor cleaner specifically for this job—do not use brake cleaner or other harsh chemicals. The process is 🎬 See how to properly clean your Land Rover LR3 sensor. simple and takes only a few minutes, and it might just solve your problem.
Frequently Asked Questions
Is it difficult to replace the MAF sensor on a 2005-2009 LR3?
No, it is a very easy job. The sensor is located on the air intake box on the passenger side of the engine bay. It is held in by two T20 or T15 Torx screws and a single electrical connector. Most DIYers can complete this replacement in under 15 🎬 Follow this step-by-step guide to replace your MAF sensor. minutes.
Do I need to reset the computer after installing a new MAF sensor?
It is a good practice to clear the fault codes with an OBD2 scanner after installation. You can also disconnect the battery for about 15 minutes before starting the job, which will reset the engine computer's learned values. This allows the computer to adapt to the new sensor's readings quickly.
Are there any recalls or TSBs for the LR3 MAF sensor?
Searches for official recalls or Technical Service Bulletins (TSBs) from Land Rover or NHTSA specifically for the 2005-2009 LR3 MAF sensor did not yield any results. Most issues appear to be related to the sensor becoming dirty or failing with age.
Can I use a MAF sensor from a different Land Rover model?
No, you must use a sensor with the correct part number for your vehicle. The OEM part number is PHF000140. Using an incompatible sensor, even if it looks identical, can cause performance problems because they are calibrated differently.
Helpful Videos

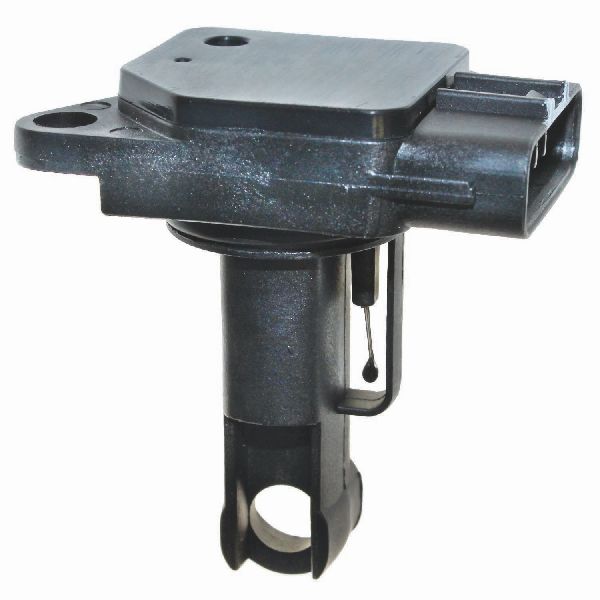

Technical Specifications
OEM Part Numbers: PHF000140 LR002141
Fits both 4.4L V8 and 4.0L V6 engines for the 2005-2009 Land Rover LR3. The sensor is a 'sensor only' type that mounts directly into the air filter housing assembly. It uses a 5-pin female connector.
