A Guide to Ignition Coils for the 2005-2009 Saab 9-7x
Solve engine misfires and poor performance by choosing the right ignition coil for your 4.2i, 5.3i, or Aero model.
- Verify your engine (4.2L I6, 5.3L V8, or 6.0L V8) before buying, as the coils are different.
- Delphi is the Original Equipment Manufacturer (OEM) and a top choice for quality and fit.
- Replacing ignition coils is a simple DIY task that requires only basic tools and can be done in under an hour.
- If one coil fails on a high-mileage engine, consider replacing all of them to prevent future issues.
Understanding Your 9-7x Ignition System
The 2005-2009 Saab 9-7x is a unique vehicle, sharing its mechanical foundation with the GM GMT360 platform, which includes the Chevrolet Trailblazer and GMC Envoy. This is good news for owners, as it means parts like ignition coils are widely available and well-understood. Your 9-7x was equipped with one of three engines: a 4.2L inline-6 (4.2i), a 5.3L V8 (5.3i), or a high-performance 6.0L V8 (Aero). It's important to know that the ignition coils for the 6-cylinder engine are different from those used on the V8 models.
Engine-Specific Coils Are a Must

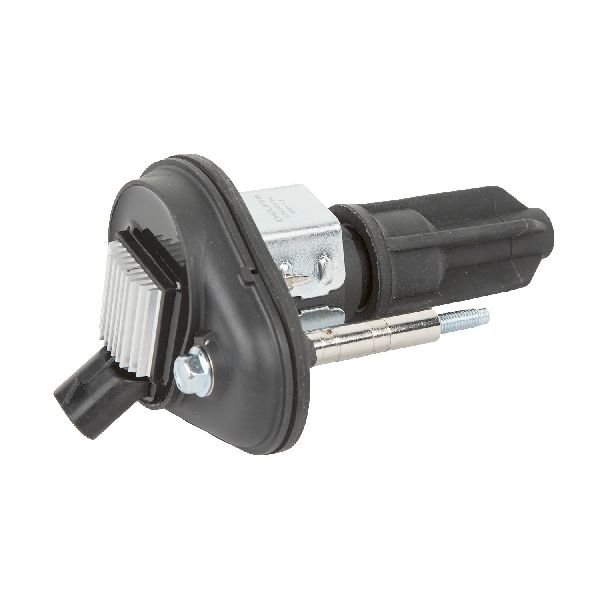

The 4.2L I6 engine uses a long, boot-style coil-on-plug assembly. The 5.3L and 6.0L V8 engines use a more compact, square-shaped coil (often called LS-style coils) connected to the spark plug by a short wire. Be certain you are purchasing the correct coil for your specific engine, as they are not interchangeable.
Common Symptoms of a Failing Ignition Coil
When an ignition coil starts to fail, it can't deliver the strong, consistent spark your engine needs. This leads to several noticeable problems. The most common sign is an engine misfire, which can feel like a shudder, hesitation, or jerking, especially when you accelerate. You might also notice a rough idle, where the engine shakes or the RPMs bounce at a stoplight. Other signs include a noticeable loss of power 🎬 Watch this video to learn more about bad ignition coil symptoms., worse fuel economy, and difficulty starting the engine. In some cases, a failing coil can even cause the engine to stall or a smell of gasoline from the exhaust.
OEM vs. Aftermarket Coils for Your Saab
The original equipment (OEM) supplier for most GM vehicles of this era, including your Saab, is Delphi. Parts sold under the AC Delco brand are also considered OEM-quality and may even be made by Delphi. For a direct, factory-quality replacement, Delphi is a trusted choice.
High-quality aftermarket brands like Bosch, NGK, and Standard Ignition (SMP) also have a strong reputation and are excellent alternatives that meet or exceed OEM specifications. Brands like Hella, Walker, and WAI Global are solid mid-tier options. There are also many value-oriented brands available. While they offer significant cost savings, their long-term durability can be inconsistent. If choosing a budget brand, it's wise to check customer reviews and warranty information before purchasing.
Should You Replace All Ignition Coils at Once?
If your 9-7x has high mileage (over 100,000 miles) and one original coil has failed, it's a good preventative measure to replace all of them. The other coils have been subjected to the same heat and vibration and may fail soon. Replacing them all at once saves you from repeated repairs and ensures consistent engine performance.
Known Issues, Recalls, and Service Bulletins
Searches for recalls and Technical Service Bulletins (TSBs) related specifically to ignition coils on the 2005-2009 Saab 9-7x did not reveal any widespread, specific issues. While there were recalls for this vehicle platform, they primarily concerned issues like a potential fire risk from the driver's door window switch module, not the ignition system. The ignition coils on the GMT360 platform are generally considered reliable, with failures typically occurring due to normal age and mileage 🎬 Learn what every car owner needs to know about coil problems..
Choosing the Right Aftermarket Ignition Coil
With dozens of options available, picking the right coil can seem confusing. Here’s a breakdown to help you decide:
| Brand Tier | Brands | Best For |
|---|---|---|
| OEM / Premium Aftermarket | Delphi, Bosch, NGK, Standard Ignition | Owners seeking the highest reliability, performance, and longevity, matching or exceeding factory quality. |
| Quality Aftermarket | Hella, Walker Products, WAI Global, Holstein | A balance of good quality and value for a daily-driven vehicle. |
| Value Aftermarket | DriveWire, URO Parts, Global Parts, Prenco, True Tech | Budget-conscious repairs where initial cost is the primary concern. Quality can be hit-or-miss. |
Frequently Asked Questions
How do I find out which coil is bad?
When a coil fails, it will usually trigger a Check Engine Light. An OBD-II scanner can read the code, which will point to a specific cylinder (e.g., P0301 for cylinder 1, P0306 for cylinder 6). A simple diagnostic trick is to swap the suspected bad coil with a known good coil from another cylinder. Clear the codes and run the engine. If the misfire code "follows" the coil to the new cylinder, you've confirmed the coil is faulty.
Is replacing an ignition coil a difficult job?

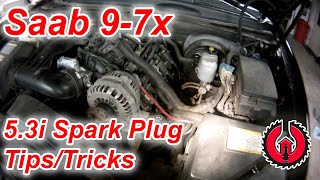

No, this is a very DIY-friendly job on all 9-7x engines. The coils are located on top of the engine and are easily accessible. Each coil is typically held in place by a single 10mm bolt. The process involves disconnecting the electrical connector, unbolting the coil, and pulling it off the spark plug 🎬 See a demonstration of spark plug and coil access on the 9-7x.. The entire job for a single coil can be done in under 15 minutes with basic hand tools.
Are ignition coils for the Saab 9-7x the same as for a Chevy Trailblazer?
Yes, if the engine is the same. A 2008 Saab 9-7x 5.3i uses the same ignition coils as a 2008 Chevrolet Trailblazer with the 5.3L V8. This cross-compatibility is a major advantage when searching for parts.
Do I need any special grease for the installation?
It is highly recommended to apply a small amount of dielectric grease to the inside of the new ignition coil boot before installing it. This grease protects against moisture, prevents corrosion, and makes future removal easier. Many high-quality coils come with grease pre-applied or in a small packet.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12570616 12613057 19300921 UF303 D585 12573190 UF414
The Saab 9-7x uses two distinct types of ignition coils. The 4.2L I6 engine uses a pencil-style coil-on-plug (COP) with a long boot assembly. The 5.3L and 6.0L V8 engines use a square-style remote coil, often referred to as a D585 or 'LS truck' style coil, which connects to the spark plug via a short wire.
