Subaru Forester Engine Oil Pressure Switch Guide (2005-2009)
Understanding the common oil leaks and flickering lights related to the oil pressure switch on your Forester.
- A leaking switch is a very common issue; check for oil leaking from the sensor's plastic connector, not just the threads.
- Always verify your oil level first if the warning light comes on before assuming the switch is bad.
- Replacement is simple, requiring a 24mm deep socket, and is located on top of the engine near the alternator.
- Do not overtighten the new switch, as it threads into aluminum and can be damaged easily.
Is Your Forester's Oil Pressure Switch Failing?
A failing oil pressure switch on a 2005-2009 Forester typically shows one of two main symptoms: an incorrect warning light or an oil leak. It's common for these switches to start leaking oil directly through the sensor body itself, not just from the threads. This oil can drip onto the hot exhaust manifold, causing a strong burning oil smell inside and outside the car. You might also see a flickering oil light or a light that stays on even when the oil level is correct. This happens when the internal parts of the switch wear out.
Don't Ignore the Oil Light
Even if you suspect a faulty switch, always check your oil level immediately when the oil light comes on. Driving with low oil pressure can quickly destroy your engine. A faulty switch is an inexpensive fix, but a new engine is not.
Choosing the Right Aftermarket Switch
When replacing the oil pressure switch, you have a choice between OEM (Original Equipment Manufacturer) and various aftermarket brands. For a critical sensor like this, quality matters.
- OEM-Equivalent Brands (e.g., Beck Arnley, Standard Ignition/SMP): These brands often aim to meet or exceed original specifications. They are generally considered a reliable choice for sensors and electronics, providing a good balance of price and quality.
- Value Brands (e.g., URO Parts, True Tech): These are typically the most affordable options. While they can work, some owners in forums report a shorter lifespan with cheaper electronic parts, sometimes leading to repeat failures. Given the low cost of even premium parts and the importance of the sensor, opting for a slightly better brand is often a wise investment.
Subaru issued a Technical Service Bulletin (TSB) in 2015 announcing a design change for their oil pressure switches, applying nickel plating to the internal contacts to improve durability and prevent false warnings. This highlights that even the original parts can be improved upon. When shopping, look for parts that mention meeting or exceeding OEM specs.
Cost of Replacing the Oil Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New OEM | $21 - $31 |
| New Aftermarket | $7 - $33 |
| Shop Labor | $50 - $100 |
Pro Tip: Easy DIY Job
Replacing this switch is one of the easier jobs on a Forester. It's located on top of the engine block, usually near the alternator. 🎬 See how to locate and replace the oil sending unit. The job requires a 24mm deep socket and can typically be done in under 30 minutes, making it a great DIY-friendly repair.
Frequently Asked Questions
Where is the oil pressure switch located on a 2005-2009 Forester?
The oil pressure switch is located on the top of the engine block, typically under the alternator on the driver's side. It has a single wire with a white or grey plastic connector.
Do I need to use thread sealant on the new switch?
Yes, it is highly recommended to apply a small amount of thread sealant or Teflon tape to the threads of the new switch to ensure a leak-proof seal. However, do not overtighten the switch, as this can crack the engine block. The torque specification is very low, around 12.5 ft-lbs.
Was there a recall for the oil pressure switch on these Foresters?
No, there have been no specific recalls for the engine oil pressure switch on the 2005-2009 Subaru Forester. There was a recall for a different switch (inhibitor switch) on much newer models and for a secondary air pump relay on some 2009 turbo models, but these do not apply to the oil pressure switch in this generation.
Can a bad oil pressure switch cause a major oil leak?
Yes. When the switch fails internally, it can leak oil directly through the body of the sensor and out of the electrical connector. This can be mistaken for a valve cover gasket leak, but it's a common failure point. In some cases, a failed switch can spray a significant amount of oil 🎬 Watch this step-by-step guide to fixing a leaking pressure switch. around the engine bay.

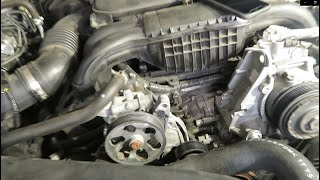

Helpful Videos
Technical Specifications
OEM Part Numbers: 25240AA060
Location: Top of cylinder block, near alternator. Socket Size: 24mm Deep Socket. Thread Type: 1/8" BSP (Tapered).
