A Guide to the Engine Oil Cooler for the 2005-2010 Audi A4 Quattro
Everything you need to know about replacing the engine oil cooler on your B7 Audi A4.
- The most common failure symptom is a milky, brown sludge in the coolant tank, which requires you to stop driving immediately.
- This issue is often misdiagnosed as a blown head gasket; the oil cooler is a more likely and less expensive culprit.
- Due to the difficult access, it is highly recommended to also replace the oil filter housing gasket when replacing the cooler.
- After replacement, a complete flush of both the cooling and oil systems is mandatory to prevent future damage from contamination.
Is Your Audi A4's Oil Cooler Failing?
The engine oil cooler on the 2005-2010 (B7 platform) Audi A4 Quattro is a known failure point. It's not a matter of if, but when it might fail, usually due to age and heat cycles causing internal seals to break down. The most common failure isn't an external leak, but an internal one. The cooler allows engine oil and coolant to mix, creating a sludgy mess that can cause serious engine problems if not addressed quickly. This is often misdiagnosed as a much more expensive head gasket failure.
🎬 Watch: How to tell if it's the oil cooler or a head gasket.The "Milkshake of Death"
The number one sign of a failed oil cooler is finding a thick, milky, brownish-grey sludge in your coolant expansion tank. This substance, often called the "milkshake," is a mixture of oil and coolant. It means the barrier inside the cooler has failed. Driving with this condition can lead to severe engine damage from poor lubrication and overheating. It is critical to stop driving the vehicle if you see this symptom.
Choosing a New Aftermarket Oil Cooler
When replacing your oil cooler, you have several aftermarket options. Since the original part is prone to failure, a quality aftermarket replacement can be a smart choice. Here's a look at the brands available:
- Mahle: Often considered an OEM (Original Equipment Manufacturer) equivalent, Mahle is a well-respected German brand known for high-quality parts that fit and function like the original. If you want peace of mind and OEM-level quality, Mahle is a top-tier choice.
- Nissens: A strong competitor in the cooling system world, Nissens is known for producing reliable aftermarket parts. They are a reputable brand for radiators and coolers.
- Vemo: Vemo positions itself as an OEM-quality brand, and user reviews are generally positive, with some customers stating it is "oem quality". It's a viable mid-tier option.
- URO Parts: URO Parts is a budget-friendly brand. While they offer a wide range of parts, their quality can sometimes be inconsistent compared to premium brands. For a critical part like an oil cooler, some owners prefer to spend more for a brand with a stronger reputation, though others have good experiences with their non-critical metal parts.
- Derale: Derale specializes in high-performance, universal cooling solutions rather than direct-fit OEM replacements for this specific Audi. Their products are generally not applicable unless you are building a custom setup.
- Dorman: While a popular aftermarket brand for many other components, specific information linking Dorman to a direct-fit oil cooler for this Audi A4 was not prominent in search results.

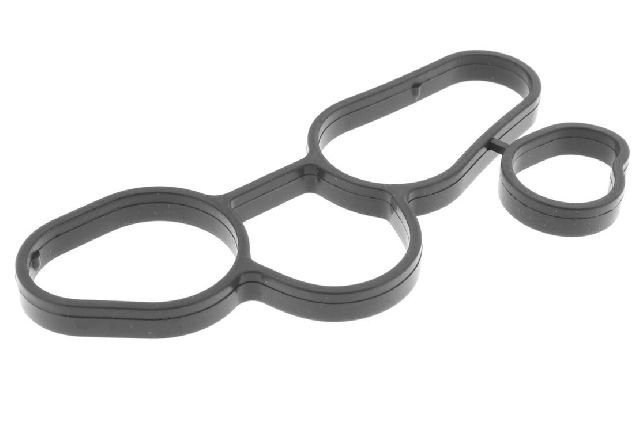

Pro Tip: The oil cooler is mounted to the oil filter housing, which is made of plastic and can also crack or have its own gasket fail. Since replacing the cooler requires significant labor, it is highly recommended to replace the oil filter housing gasket, or the entire housing assembly, at the same time.
Cost to Replace Audi A4 Oil Cooler
| Part Type | Part Cost | Shop Labor Cost | Total Estimated Cost |
|---|---|---|---|
| New Aftermarket | $58 - $348 | $171 - $251 | $229 - $599 |
| New OEM | $150 - $462 | $171 - $251 | $321 - $713 |
Frequently Asked Questions (FAQ)
Is there a recall on the 2005-2010 Audi A4 oil cooler?
No, there are no specific recalls from the NHTSA for the engine oil cooler on the 2005-2010 Audi A4. There have been recalls for other cooling system components like the electric coolant pump on later models, but not for the oil cooler itself on the B7 platform.
Can I replace the Audi A4 oil cooler myself?

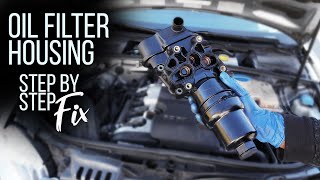

This is a moderately difficult job for a DIY mechanic. Access is tight, located below the intake manifold. You will need to drain both the oil and coolant. Special tools like triple-square sockets may be required. While it's possible to do at home, it can be frustrating due to the tight space. 🎬 See this walkthrough on how to locate and replace the cooler. If you are not experienced, it may be best to leave it to a professional.
What happens if I don't replace a bad oil cooler?
Continuing to drive with a failed oil cooler can lead to catastrophic engine damage. The oil, contaminated with coolant, loses its ability to lubricate properly, leading to increased friction and wear. The engine can overheat severely, potentially causing warped cylinder heads or a blown head gasket, which are extremely expensive repairs.
Do I need to flush the system after replacement?
Yes, this is a critical step. If your oil and coolant have mixed, you must thoroughly flush both the cooling system and the engine oil system multiple times to remove all contamination. Any remaining sludge can clog passages and cause the new cooler or other engine components to fail.
🎬 Watch: How to properly flush a cooling system contaminated with oil.Helpful Videos
Technical Specifications
OEM Part Numbers: 06D117021C 06E117021L
The part is a water-to-oil heat exchanger that mounts directly to the engine's oil filter housing.
