Guide to Replacing the Engine Intake Manifold Gasket on a 2005-2010 Buick LaCrosse
Understanding the common intake gasket failures on the 3.8L V6 and how to choose the right aftermarket replacement set.
- The 3.8L V6 in 2005-2010 LaCrosse models has a very common intake manifold gasket failure due to a plastic manifold design flaw.
- Choose an aftermarket gasket set from a brand like Fel-Pro or Dorman, as they often feature improved, metal-reinforced designs that are superior to the original part.
- While replacing the gaskets, it is critical to also replace the plastic coolant elbows with upgraded aluminum versions.
- Symptoms like coolant loss, overheating, or milky oil should be addressed immediately to prevent catastrophic engine damage like hydro-locking.
Understanding the Common Failure on 3.8L Engines
If your 2005-2010 Buick LaCrosse has the 3.8L V6 engine (also known as the GM 3800 Series III), it is prone to a well-known intake manifold gasket issue. The original upper intake manifold was made of a plastic composite material. A metal tube for the Exhaust Gas Recirculation (EGR) system passes through this manifold, and over time, the intense heat can warp or melt the plastic around it. This failure allows coolant to leak, either externally onto the engine or, more dangerously, internally into the intake ports or crankcase. The lower intake manifold (LIM) gaskets were also a known failure point, originally made of a plastic-framed material that would degrade and break apart over time. This is not a matter of if, but when, for many of these engines.
🎬 See what causes these 3800 V6 intake leaksCritical Point for 3.8L V6 Owners
A significant internal coolant leak can lead to hydro-locking, where coolant fills a cylinder and prevents the piston from moving. This can cause catastrophic engine damage. It is crucial to address symptoms of a failing intake gasket immediately.
🎬 Watch: Common symptoms of a bad intake manifold gasketChoosing the Right Aftermarket Gasket Set

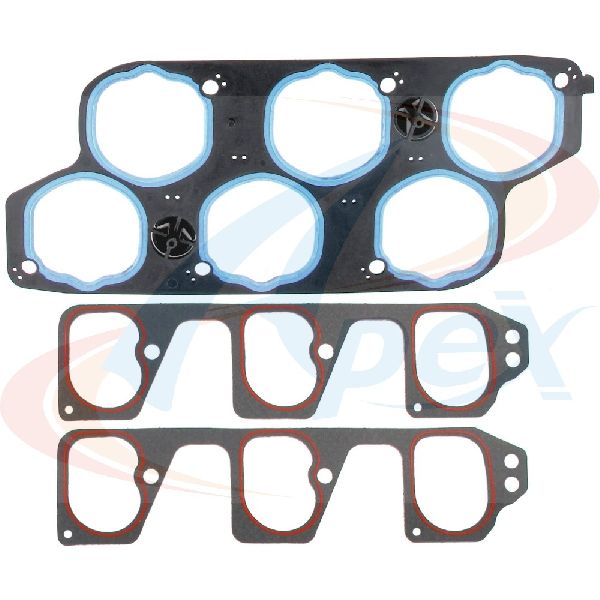

The good news is that the aftermarket has produced superior solutions to this common GM problem. When shopping for a replacement, you are often better off with a quality aftermarket brand than a new old stock (NOS) OEM part, as the aftermarket parts correct the original design flaws.
Brand Tiers & Recommendations
- Top Tier (Problem-Solvers): Brands like Fel-Pro are highly regarded for this specific repair. They offer updated lower intake manifold gaskets made with a metal frame that resists corrosion and degradation, a significant upgrade over the original plastic design. Similarly, Dorman offers complete upper intake manifold kits that often include a redesigned EGR tube area to prevent future melting. These kits are often seen as a complete "OE FIX."
- Mid-Tier (Quality Alternatives): ACDelco's professional aftermarket line and brands like Victor Reinz offer quality replacement gaskets. ACDelco eventually updated their own designs to an aluminum frame to compete with the superior aftermarket solutions. These are reliable choices if a problem-solver kit isn't available or preferred.
- Economy Tier: While lower-priced options exist, this is a labor-intensive job. Using a lower-quality gasket to save a few dollars is not recommended, as a premature failure would mean doing the entire job over again. Given the critical nature of this part, investing in a top or mid-tier brand is a wise decision.
Pro-Tip: Replace More Than Just the Gaskets
While you have the intake manifold off, it is highly recommended to replace the plastic coolant elbows with upgraded aluminum versions. These are another common failure point and are inexpensive to replace during this job. Also, consider replacing the thermostat and any brittle vacuum lines.
Cost of Replacing the Intake Manifold Gasket Set
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $48 - $169 |
| New OEM Gasket Set | $52 - $159 |
| Shop Labor | $203 - $297 |
| Total Professional Replacement | $689 - $784 |
Note: Costs are estimates and can vary based on your location and the specific parts chosen. The job is labor-intensive, often taking 4-6 hours.
Frequently Asked Questions (FAQ)
Do I need to replace the whole intake manifold or just the gaskets?
For the 3.8L V6, inspect the plastic upper intake manifold carefully, especially around the EGR port. If there is any sign of melting, warping, or cracking, you must replace the entire upper manifold. Aftermarket kits from brands like Dorman are designed for this. The lower manifold is metal and usually does not need replacement unless it has been damaged by corrosion.
Should I use sealant on the new gaskets?
You should apply a small dab of RTV sealant at the corners where the cylinder heads meet the engine block. However, do not apply sealant along the entire gasket surface itself. The gaskets are designed to seal on their own. Follow the specific instructions included with your gasket set.
Is this a DIY-friendly job?
This is an intermediate to advanced DIY job. It requires draining the coolant, removing the fuel rail, and disconnecting numerous sensors and hoses. While it can be done at home with the right tools and patience, it can be complex. If you are not comfortable with this level of engine work, it is best to leave it to a professional mechanic.
🎬 Watch this full intake manifold and plenum replacement walkthroughMy LaCrosse has the 3.6L V6. Does this information apply to me?
No, this guide primarily focuses on the 3.8L V6, which has the well-documented intake gasket issues. The 3.6L V6 is a different engine family (part of GM's High Feature engine line) with a different intake design and its own unique service requirements. While its gaskets can fail, it does not have the same specific EGR-related melting problem as the 3.8L.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12573662 19355655 89018222 19434071
This guide applies primarily to the GM 3.8L (3800) Series III V6 engine. It does not apply to the 3.6L V6 or 5.3L V8 engines also available in the LaCrosse during these years.
