2005-2010 Buick LaCrosse Engine Oil Pressure Switch & Sensor Guide
Diagnosing a faulty oil pressure switch on your LaCrosse is the first step to protecting its engine from serious damage.
- The replacement job is easy on the 3.8L V6 but very difficult and expensive on the 3.6L V6.
- Never drive with the oil pressure light on; you risk catastrophic engine damage.
- Always check the oil level first, but a mechanical pressure test is the only way to confirm a bad sensor versus a real pressure problem.
- There are no specific recalls for this part on the 2005-2010 LaCrosse.
Is it a Switch or a Sensor?
You will see this part called both a switch and a sensor. They do the same basic job. A simple "switch" just turns the warning light on or off at a set pressure. A "sensor" or "sending unit" can measure a range of pressures, which is what your LaCrosse's oil pressure gauge uses to display a reading. For your vehicle, these terms are often used interchangeably.
Symptoms of a Failing Oil Pressure Switch on a LaCrosse
When the oil pressure switch fails, it can give false signals. It's important to know the signs, but also to confirm it's the switch and not a real oil pressure problem.
- Oil Pressure Light On or Flickering: This is the most common symptom. The light may stay on constantly, or it might flicker, especially at idle or when the engine is hot.
- Incorrect Gauge Reading: The oil pressure gauge on your dashboard may read zero, max out, or jump around erratically. 🎬 See how a faulty sensor causes erratic gauge readings.
- Check Engine Light: A faulty sensor can trigger the check engine light. Common trouble codes include P0520, P0521, P0522, and P0523.
- Oil Leaks: The switch itself can fail and leak oil. A very common failure is for oil to leak through the sensor's plastic body and into the electrical connector.
First, Check Your Oil!
Before assuming the sensor is bad, always check your engine oil level with the dipstick. If the oil level is low, top it off. If the warning light goes out, the sensor was doing its job. If the light stays on with a full oil level, the sensor is likely the problem. However, the safest step is to have a mechanic verify the actual oil pressure with a mechanical gauge to rule out a more serious issue like a failing oil pump.
Known Issues, Recalls, and TSBs
Searches of the National Highway Traffic Safety Administration (NHTSA) database show recalls for the 2005-2010 Buick LaCrosse concerning the ignition switch and brake pedal, but there are no active recalls or widespread Technical Service Bulletins (TSBs) for a failing engine oil pressure switch on this vehicle. Failure is typically due to normal wear and tear.
Choosing the Right Aftermarket Part: Brand Quality
When replacing the oil pressure switch, you have options from the Original Equipment Manufacturer (OEM) and various aftermarket brands.
- OEM (ACDelco): ACDelco is GM's official parts brand. Choosing an ACDelco part guarantees the original fit, performance, and quality. Given the critical function of this sensor, OEM is a highly recommended and reliable choice.
- Premium Aftermarket (Standard Ignition): Standard Motor Products (SMP) has a long reputation for producing quality aftermarket parts that often meet or exceed OEM specifications. Many professional technicians trust this brand. While some of their budget-tier lines have mixed reviews, their main series is considered a dependable alternative to OEM.
- Standard & Economy Aftermarket (Holstein, Walker, URO, etc.): Brands like Walker Products, Holstein, and URO Parts offer cost-effective solutions. They are designed as direct-fit replacements and can be a good choice for budget-conscious repairs. However, for a critical sensor like this, long-term reliability can sometimes be inconsistent compared to OEM or premium aftermarket options.
Replacement Cost for a 2005-2010 Buick LaCrosse
The cost to replace the oil pressure switch depends heavily on which engine your LaCrosse has. The location of the part is completely different.
Engine Determines the Job

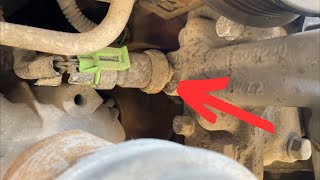

3.8L V6 (2005-2009): The switch is easy to access, located on the front of the engine near the oil filter adapter. Replacement is simple and takes less than an hour. 🎬 Watch this quick 3.8L V6 sensor replacement walkthrough.
3.6L V6 (2005-2008 CXS, 2010): The switch is very difficult to access. It is located on the back of the engine, underneath the intake manifold. Replacing it requires removing the manifold, making the job significantly more complex and expensive.
| Part/Service | 3.8L V6 Cost | 3.6L V6 Cost | Notes |
|---|---|---|---|
| New OEM Part | $20 - $60 | $50 - $90 | ACDelco/GM Genuine Parts |
| New Aftermarket Part | $15 - $83 | Price depends on brand quality. | |
| Shop Labor | $75 - $150 | $250 - $400+ | Labor costs vary by location and shop rates. The 3.6L job is much longer. |
| Estimated Total (Shop) | $95 - $210 | $300 - $500+ | Using an aftermarket part may lower the total cost. |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch on my 2005-2010 LaCrosse?
It depends on your engine. For the 3.8L V6, it's located on the front of the engine, typically screwed into the oil filter housing, making it easy to find and replace. For the 3.6L V6, it is in a much more difficult spot at the rear of the engine valley, under the intake manifold.
🎬 Watch: How to access the sensor on 3.6L engines.Can I drive my LaCrosse with the oil pressure light on?
No. You should pull over and shut off the engine as soon as it is safe to do so. While the problem could be a faulty sensor, it could also be real, dangerously low oil pressure. Driving with low oil pressure can destroy your engine in a very short time. It is best to have the vehicle towed for diagnosis.
Is an oil leak from the switch a serious problem?
Yes. Any oil leak should be addressed. A leak from the oil pressure switch can get worse over time, leading to low oil levels. Furthermore, the leaking oil can drip onto hot exhaust components, creating a fire hazard and a burning oil smell.
What is the most common mistake when ordering this part?
The most common mistake is ordering the wrong part for your specific engine. The 3.8L V6 and 3.6L V6 use different sensors with different part numbers. Always verify your engine size before ordering to ensure you get the correct component.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12673134 12621234 D1846A 12616646
The correct part depends on the engine. The 3.8L V6 typically uses a 1-terminal switch (like ACDelco D1846A). The 3.6L V6 uses a 3-terminal sensor (like ACDelco 12673134). Always verify by engine type.
