A Guide to the Ignition Knock Sensor for the 2005-2010 Chevrolet Cobalt
Understand the signs of a failing knock sensor and find the best new aftermarket replacement for your Cobalt.
- A common failure point is the wiring harness rubbing against the oil filter housing, so check this before replacing the sensor.
- The Check Engine Light with codes P0325 or P0327 is the primary indicator of a knock sensor issue.
- Replacement is moderately difficult as it requires accessing the back of the engine block, and may involve removing the starter.
- Using a torque wrench to tighten the new sensor to exactly 18 ft-lbs is critical for proper function.
Is Your Cobalt's Knock Sensor Failing?
A bad knock sensor can cause noticeable problems with your car's performance. Because the engine's computer can't properly adjust for engine knock, it may switch to a "safe mode" to prevent damage, resulting in poor performance. You should look for a replacement if you notice any of the following issues.
Symptoms of a Bad Knock Sensor
- Check Engine Light: This is the most common symptom. A code like P0325 or P0327 is a strong indicator of a knock sensor circuit problem.
- Audible Engine Knocking: You might hear a pinging or knocking sound, especially during acceleration. This is the detonation that the sensor is supposed to detect.
- Reduced Engine Power: Your Cobalt may feel sluggish or hesitate when you accelerate.
- Poor Fuel Economy: When ignition timing isn't optimal, your engine burns more fuel than necessary.
A Common Wiring Problem
On the 2005-2010 Cobalt, the knock sensor wiring harness is known to rub against a sharp edge on the oil filter housing. This can damage the wires and cause a short, triggering a knock sensor code even if the sensor itself is fine. Before replacing the sensor, it's a good idea to inspect this wiring harness for damage.
Choosing the Right Aftermarket Knock Sensor
When it comes to electronic sensors, quality matters. A cheap, low-quality sensor may not be sensitive enough or could fail quickly, leaving you with the same problem. Here’s a breakdown of available brands.
Tier 1: OEM Quality
- ACDelco: As the original equipment parts brand for General Motors, ACDelco is a trusted choice for a direct replacement.
- Delphi: Delphi was often the original equipment manufacturer (OEM) that made the electronic parts for GM. Choosing Delphi is essentially like buying the original part without the GM branding.
Tier 2: Reputable Aftermarket
- NGK (NTK): NGK is a well-respected brand, known for high-quality ignition components and sensors.
- Standard Ignition (SMP): Standard Motor Products is a long-standing aftermarket manufacturer known for producing reliable parts that meet or exceed OEM specifications.
Tier 3: Economy Options
- Walker Products, Facet, Global Parts: These brands offer a cost-effective solution for your repair. They are designed to be a direct fit and restore function, though they may not have the same long-term durability as premium brands.
Typical Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $34.11 - $66.84 |
| Shop Labor | $100 - $200 |
Pro Tip: Torque is Critical
The knock sensor must be tightened to the correct torque specification, which is 18 ft-lbs for the Cobalt. If it's too loose or too tight, it won't detect engine vibrations correctly. Always use a torque wrench for installation and avoid using power tools.
Frequently Asked Questions
Where is the knock sensor located on a 2005-2010 Chevrolet Cobalt?
The knock sensor is bolted to the back of the engine block, underneath the intake manifold. It is often located behind or below the starter, making access tight. You will need to access it from underneath the vehicle.
What does code P0325 or P0327 mean on my Cobalt?
P0325 indicates a malfunction in the knock sensor circuit, 🎬 See how to diagnose and fix a P0325 circuit malfunction. while P0327 specifically points to a low voltage reading from the sensor. 🎬 Vea cómo solucionar el código P0327 en un Chevy Cobalt. Both codes mean the engine's computer is not receiving the correct signal from the knock sensor. This could be due to a bad sensor, a wiring problem, or a poor connection.
Is it hard to replace the knock sensor myself?
The replacement is moderately difficult due to the sensor's location. While some owners report being able to change it without removing other parts, many find it necessary to remove the starter to gain access. If you are comfortable working under your car and have tools like a ratchet, extensions, and a torque wrench, it is a feasible DIY job.
🎬 Watch this step-by-step guide to replacing your Cobalt knock sensor.Are there any recalls for the knock sensor on the Chevy Cobalt?
No, there are no specific recalls for the ignition knock sensor on the 2005-2010 Chevrolet Cobalt. The major recalls for this vehicle concerned the ignition switch and electric power steering system.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12589867 12623730 213-3872

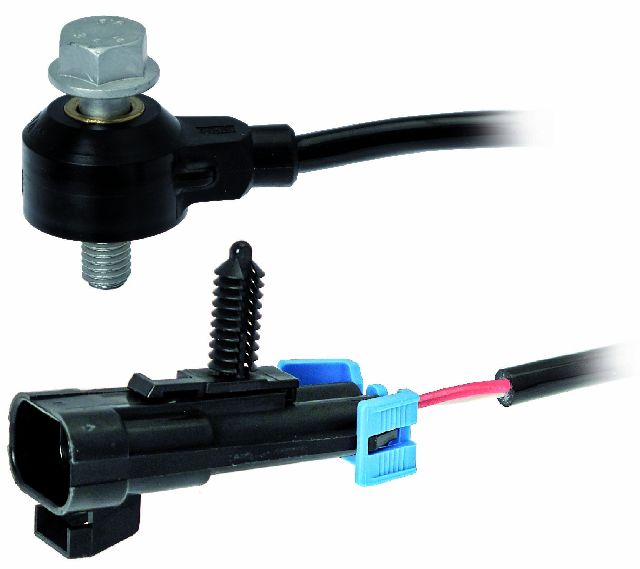

The knock sensor for the 2005-2010 Cobalt is a single-bolt design that mounts to the engine block. It uses a 2-wire electrical connector. The mounting bolt must be torqued to 18 ft-lbs.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
