Ford Explorer 2005-2010 Idle Air Control Valve: Symptoms and Replacement
If your 2005-2010 Ford Explorer is stalling or idling rough, the Idle Air Control valve is a likely suspect.
- A bad IAC valve on a 2005-2010 Explorer typically causes rough idle, stalling, and hard starting.
- On the 4.0L V6 engine, this is a very simple DIY replacement that takes less than 30 minutes.
- For this specific part, using the OEM Motorcraft brand is strongly advised to avoid performance issues and premature failure common with aftermarket alternatives.
- Before buying, confirm your Explorer has the 4.0L V6 engine with a separate, bolt-on IAC valve.
Is Your Explorer's Idle Acting Up?
A failing Idle Air Control (IAC) valve on the 2005-2010 Ford Explorer, particularly those with the 4.0L V6 engine, will make its presence known. Because it directly manages airflow at idle, any malfunction causes immediate and noticeable problems. The symptoms often appear suddenly and can make the vehicle frustrating to drive, especially in stop-and-go traffic.

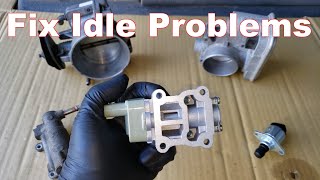

🎬 See a breakdown of common bad IAC symptoms.Engine Specific Part
The 2005-2010 Ford Explorer with the 4.0L SOHC V6 engine uses a separate, bolt-on Idle Air Control valve located on the throttle body. However, models with the 4.6L V8 engine use an electronic throttle body where the idle control function is integrated and not separately replaceable. Always verify which engine your Explorer has before purchasing this part.
Common Failure Symptoms
- Rough or Bouncing Idle: The most common sign. The engine RPM may jump up and down, or feel shaky and inconsistent when stopped.
- Engine Stalling: The vehicle may stall when you come to a stop, put it in gear, or even right after starting. This happens when the valve sticks closed and chokes off the engine's air supply.
- Difficulty Starting: A faulty IAC can prevent the engine from getting the air it needs to start and run, especially when cold. You might find yourself needing to press the gas pedal to get it to start.
- Check Engine Light: A malfunctioning IAC valve can trigger the Check Engine Light. You may see diagnostic trouble codes such as P0505, P0506, or P0507 when you scan the vehicle. 🎬 Watch: Diagnosing a P0506 code on your Explorer.
Choosing the Right Aftermarket Part: A Word of Caution
When it comes to electronic engine parts for this generation of Ford Explorer, there is a significant difference in quality and reliability between OEM and aftermarket options. While aftermarket parts are available and more affordable, owner experiences tell an important story.
Motorcraft (OEM): This is Ford's original equipment brand. For the IAC valve, choosing Motorcraft is strongly recommended by mechanics and experienced owners. These parts are built to Ford's exact specifications and are known to perform correctly without issue.
Aftermarket Brands: Many owners report problems with aftermarket IAC valves on these trucks. Common complaints include the part failing within a few months, or even being non-functional right out of the box. Some have found that certain aftermarket designs operate differently, leading to a persistent high idle that cannot be corrected. While the lower price is tempting, you may end up spending more time and money on diagnostics and repeat replacements. If you must use an aftermarket part, choose one from a reputable brand with a good warranty.
Installation Tip
Replacing the IAC valve is a simple job. It's held on by two 8mm bolts. Before installing the new valve, be sure to carefully clean the mounting surface on the intake manifold to remove any carbon buildup. This ensures the new gasket creates a perfect seal, preventing vacuum leaks. Do not overtighten the new bolts, as the aluminum housing can crack.
Cost of Replacing the Idle Air Control Valve
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $72.52 |
| New OEM (Motorcraft) | $90 - $150 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Can I just clean my old IAC valve?
Cleaning a sticky IAC valve with carburetor cleaner can sometimes be a temporary fix. However, if the electronic components inside the valve are failing, cleaning will not solve the problem and replacement is the only long-term solution.

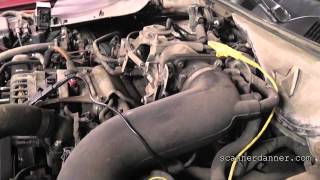

🎬 Watch: How to test your IAC valve for stalling issues.What happens if I ignore a bad IAC valve?
Ignoring the problem can be dangerous. The engine could stall at an unpredictable moment, such as in the middle of an intersection, increasing the risk of an accident. It will also lead to a frustrating driving experience and prevent your vehicle from passing an emissions test.
Is a new gasket included with the IAC valve?
Most new IAC valves, both OEM and aftermarket, come with a new gasket. It is critical to use the new gasket to prevent vacuum leaks.
Why does my Explorer still idle high after installing a new aftermarket IAC?
This is a common complaint with non-OEM parts for this vehicle. Some aftermarket valves may not be calibrated correctly or may have a different internal design, causing them to allow too much air at idle. This is a primary reason why sticking with the Motorcraft brand is highly recommended.
Helpful Videos
Technical Specifications
OEM Part Numbers: CX-1771 1L2E-9F715-AD 4L2Z-9F715-AA
2-bolt mount, 2-pin electrical connector. Typically includes gasket.
