A Guide to the Serpentine Belt on Your 2005-2010 Mazda B4000
Everything you need to know about keeping your truck’s 4.0L engine running smoothly.
- The 2005-2010 Mazda B4000 is a Ford Ranger with a 4.0L V6; parts are interchangeable.
- Squealing is the most common symptom of a failing belt, but a bad tensioner is often the root cause.
- For a quiet, long-lasting repair, replace the belt, tensioner, and idler pulley together.
- Premium aftermarket brands like Gates and Continental offer OEM-or-better quality for this truck.
Understanding Serpentine Belt Failure on the 4.0L Engine
The 4.0L SOHC V6 engine in the 2005-2010 Mazda B4000 is a workhorse, but its serpentine belt still needs regular attention. Since the B4000 is mechanically identical to the Ford Ranger, parts and information are widely available. The most common issue you'll face is noise. A squealing or chirping sound, especially on cold, damp mornings, is a classic sign the belt is slipping or worn. While the original factory belts were adequate, modern aftermarket belts often use advanced EPDM rubber compounds that resist cracking and heat better than older materials.
Pro Tip: Check the Tensioner and Idler
If your belt is making noise, the belt itself might not be the only problem. The automatic belt tensioner and idler pulley can also wear out. A weak tensioner can't keep the belt tight, causing slippage, while a bad pulley bearing will often make a grinding or whirring noise. It is highly recommended to replace the tensioner and idler pulley at the same time as the serpentine belt to ensure a long-lasting, quiet repair.
Choosing the Right Aftermarket Serpentine Belt
You don't need to buy a dealership part to get great quality. For the Mazda B4000, top-tier aftermarket brands are often considered equal to or even better than the original. Here’s how the common brands stack up:
- Premium (Problem Solver): Continental Elite

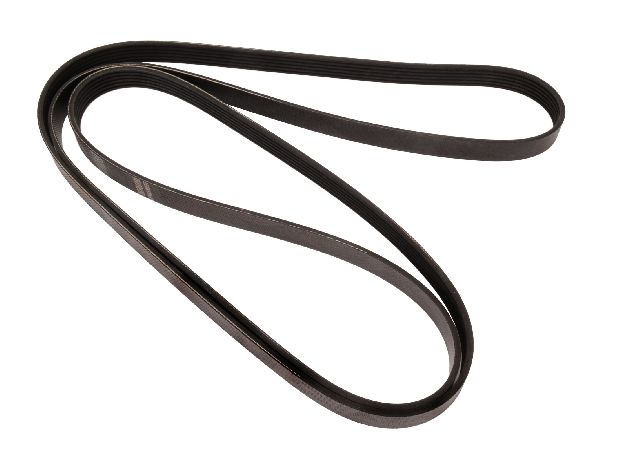

Formerly known as the Goodyear Gatorback, the Continental Elite series features a unique diagonal cog design called Quiet Channel Technology. This design is excellent at eliminating squeaks and chirps, making it a great choice if your truck is prone to belt noise. - Professional Grade (OEM Quality): Gates
Gates is a highly respected brand that is often the original equipment manufacturer for many car companies. Their Micro-V belts are known for their durability, precise fit, and reliable performance, meeting or exceeding OEM specifications. You can't go wrong choosing Gates for a standard, high-quality replacement. - Standard Grade (Value): Dayco

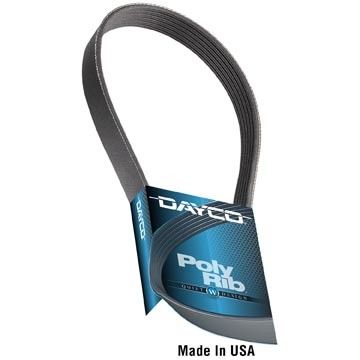

Dayco offers a reliable and affordable replacement belt. While generally considered a good product, some users in forums report they may not last as long or stay as quiet as premium options from Gates or Continental. It's a solid choice for budget-conscious repairs.
Cost of Replacing Your Serpentine Belt
The cost to replace the serpentine belt on a 2005-2010 Mazda B4000 can vary depending on whether you do it yourself or take it to a shop. The job is considered easy for a DIY mechanic and takes less than an hour.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Serpentine Belt | $24.95 - $63.33 |
| Shop Labor | $75 - $150 |
| Total Professional Replacement | $110 - $215 |
A Note on Recalls
While there are no specific recalls for the serpentine belt on this truck, some 2006 Mazda B-Series models were part of the massive Takata airbag recall. This is a critical safety issue. You can check if your specific truck is affected by entering your VIN on the NHTSA website.
Frequently Asked Questions
How do I know if I need a new serpentine belt?
Look for visual signs like cracks, fraying, or a shiny, glazed appearance on the belt. Listen for squealing or chirping noises from the engine. You may also see a battery warning light, experience hard steering, or notice your engine temperature climbing if the belt is failing.
Is this a difficult job to do myself?
No, this is a great job for a beginner. The only special step is using a 3/8-inch drive ratchet or breaker bar to move the automatic tensioner and release the belt. No other major parts need to be removed, though moving the coolant overflow tank on some models can provide better access.
What is the correct belt length for my B4000?
The 4.0L V6 engine with A/C typically uses a 6-rib belt that is around 2200mm, or 86.5 inches, long. However, always verify the fitment for your specific vehicle before ordering. Ordering the wrong length is a common mistake. Using your vehicle's information on a parts website is the most reliable method.
Should I replace the tensioner and pulleys with the belt?
Yes, it is highly recommended. The tensioner spring and pulley bearings wear out over time. A new belt running on an old, worn tensioner can fail prematurely. Replacing them all at once saves you from doing the same job twice and ensures a quiet, reliable system.
Technical Specifications
OEM Part Numbers: 1L5E6B209AB
Standard belt for the 4.0L V6 with A/C is a 6-rib (6PK) design with an effective length of approximately 2200mm (86.5 inches). Common part numbers include K060866 and 5060865.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
