A/C Receiver Drier Guide for 2005-2011 Audi A6 Quattro (C6)
If your A/C is losing its cool, the receiver drier is a critical part you need to know about.
- The A/C receiver drier must be replaced any time the A/C system is opened for service, such as a compressor or hose replacement.
- This is not a DIY job. It requires a professional with specialized equipment to safely evacuate and recharge the refrigerant.
- A failed drier can cause poor cooling, but its biggest risk is allowing moisture and debris to destroy other expensive A/C components.
- Choosing a quality aftermarket brand like Mahle or Nissens is a smart investment to protect the entire A/C system.
Is Your A6's A/C Not Working? It Could Be the Receiver Drier.
When the air conditioning in your 2005-2011 (C6 platform) Audi A6 Quattro stops blowing cold, many parts could be to blame. While a bad compressor or a refrigerant leak are common issues, the A/C receiver drier plays a vital protective role. This part isn't one that usually fails on its own; instead, it's a mandatory replacement item any time the A/C system is opened for service. If you're replacing a failed compressor, for example, you must also replace the drier to protect your new parts and ensure the repair lasts.
Symptoms of a Saturated or Failed A/C Receiver Drier
A bad receiver drier can cause several problems, most of which overlap with other A/C system failures. Proper diagnosis by a professional is key. Here are the common signs:
- Weak or No Cold Air: This is the most frequent symptom. A clogged drier can block the flow of refrigerant, preventing the system from cooling properly.
- Musty or Moldy Smell: When the desiccant inside becomes saturated with moisture, it can't absorb any more. This can lead to mold growth inside your A/C system, causing an unpleasant smell from the vents.
- Rattling Noises: If the desiccant bag inside the drier breaks apart, you might hear rattling sounds from the engine bay when the A/C is on. This is a serious issue, as the loose material can travel through the system and cause major damage to other components.
- Frost on A/C Lines: In cases of a severe clog, you might see frost or ice forming on the A/C lines or the condenser where the drier is located.
A Note on A/C Pressure Sensors
Before assuming your receiver drier is the problem, be aware that a faulty A/C pressure sensor can also cause the A/C to stop working. This sensor can fail and incorrectly tell the system to shut off the compressor. A technician can check pressure readings to diagnose the true cause.

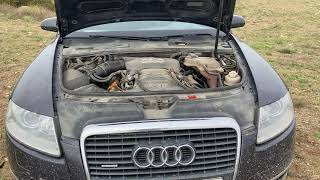

🎬 See a professional diagnostic walkthrough for the Audi A6 C6 system.Choosing the Right Aftermarket A/C Receiver Drier
Since replacing the drier is a must during most A/C repairs, choosing a quality part is important. The labor to replace it is the same regardless of the brand, so a reliable part protects your investment. Here’s a breakdown of available aftermarket brands:
Tier 1: OEM-Equivalent Brands
- Mahle: Mahle (which includes the Behr brand) is a premier German parts manufacturer and a common Original Equipment Manufacturer (OEM) for Audi. Choosing a Mahle drier is often the same as buying the Genuine Audi part without the dealership price tag.
- Nissens: A well-respected European brand specializing in climate control parts. Nissens components are known for their quality and are a reliable alternative to OEM parts.
Tier 2: Standard Aftermarket Brands
- Global Parts Distributors (GPD): GPD is a national brand that offers a complete line of aftermarket A/C products. They provide a cost-effective solution that meets original specifications and offers a good balance of performance and value. 🎬 Learn more about GPD climate control products and quality standards.
Estimated Part & Labor Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Drier | $27.37 - $53.55 |
| New OEM Drier | $40 - $90 |
| Shop Labor & Recharge | $551 - $804 |
Pro Tip: The high cost of replacement is due to the labor involved in evacuating and recharging the A/C system, which requires specialized equipment. Always use new seals lubricated with the correct refrigerant oil during installation 🎬 Watch a step-by-step guide on how to replace a receiver drier. to prevent leaks.
Frequently Asked Questions (FAQ)
When should I replace the A/C receiver drier?
You must replace the receiver drier any time the A/C system is opened for repairs, such as when replacing the compressor, condenser, or a hose. It is also recommended to replace it every two years as preventative maintenance, as the desiccant has a limited lifespan.
Can I replace the A/C receiver drier myself?
No, this is not a DIY-friendly job. Legally and safely handling refrigerant requires EPA certification and expensive recovery and vacuum equipment. The system must be professionally evacuated before opening it and then vacuumed and recharged after the new part is installed.
What happens if I don't replace the drier during an A/C repair?
Failing to replace the drier will introduce moisture into the system, which can mix with refrigerant to form corrosive acid. This will quickly damage your new parts, especially the expensive A/C compressor, and will likely void the warranty on those parts.
Are there any recalls for the 2005-2011 Audi A6 A/C system?
Our research found no recalls from the NHTSA specifically for the A/C receiver drier or other major A/C components for this vehicle range. Recalls for these models were primarily related to airbags and the engine cooling system.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4F0820191B 4F0820191A 4F0820191
Located on the high-pressure side of the A/C system, typically mounted to the condenser. Contains desiccant material to absorb moisture.
