Choosing the Right Aftermarket Brake Pads for Your 2005-2011 BMW M5
Stop guessing which brake pads are right for your high-performance E60 M5.
- The E60 M5 is a heavy, high-performance vehicle; do not compromise on brake pad quality.
- OEM and OEM-equivalent pads (ATE, Textar) offer great performance but can produce significant dust.
- Aftermarket ceramic pads (e.g., ATE Ceramic, Akebono) are a good choice for street-driven cars to reduce brake dust.
- Always replace the brake pad wear sensors when changing pads to extinguish the dashboard warning light.
Symptoms of Worn Brake Pads
Knowing when to replace your brake pads is crucial for safety. The E60 M5 is equipped with brake pad wear sensors that trigger a warning light on your dashboard when the pads are thin. However, sensors are only on one pad per axle, so visual inspection is still important. Look for these signs:
- Brake Warning Light: A yellow or red brake symbol on your iDrive display is the most obvious indicator.
- Squealing or Grinding Noises: A high-pitched squeal when you apply the brakes often means the wear indicators are touching the rotor. Grinding means the pads are completely worn, and you are hearing metal-on-metal, which can quickly damage your rotors.
- Vibration or Pulsating Pedal: If you feel a shudder or pulsation through the brake pedal or steering wheel when braking, your rotors may be warped, often due to worn pads causing excessive heat.
- Reduced Stopping Power: If your M5 takes longer to stop than it used to, your pads are likely worn out and can't create enough friction.

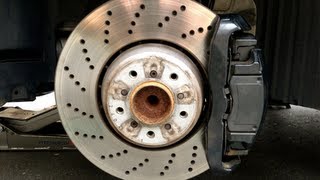

- Visual Inspection: You can often see the brake pad thickness through your wheels. If the friction material looks to be 3mm or less, it's time for a replacement. 🎬 Watch this step-by-step guide on replacing your M5 brake pads.
Choosing the Right Aftermarket Brake Pads
The original equipment (OEM) brake pads on the M5 are designed for a balance of performance and comfort, but they are known for producing a significant amount of brake dust. Aftermarket pads offer a chance to tailor your brake performance to your driving style, often with benefits like reduced dust or increased track capability.
Aftermarket Brand Tiers for the E60 M5
| Tier | Brands | Description & Best Use |
|---|---|---|
| OEM Equivalent / Premium Street | ATE, Textar, Pagid, Brembo, Bosch | These brands are often the original suppliers to BMW. They offer performance very similar to the factory pads, providing a strong initial bite and reliable stopping. ATE and Textar are highly regarded, though some users report significant dust from Textar. ATE Ceramic pads are a popular choice for reducing dust. Ideal for daily driving and spirited street use. |
| Performance Street / Light Track | Hawk (HPS, HPS 5.0), EBC Brakes (Redstuff, Yellowstuff), StopTech, Powerstop | This category offers a step up in performance. Hawk HPS pads are a popular upgrade for better stopping power with manageable dust. EBC Yellowstuff pads provide a significant improvement in braking effect but produce more dust than their Redstuff counterparts. These are for owners who drive their M5 aggressively on the street and may do occasional track days. |
| Aggressive Street / Track Focused | Hawk (HP+, DTC-30), EBC Brakes (Bluestuff), Performance Friction, Carbotech | These pads are designed for high-heat applications and repeated hard braking. Hawk HP+ and Carbotech pads offer incredible stopping power but can be noisy and perform poorly when cold or wet. They also produce a lot of dust. This tier is best suited for dedicated track use or very aggressive street driving where maximum performance is the priority over comfort and cleanliness. |
A Note on Brake Dust and Noise
High-performance braking often comes with compromises. Softer, high-friction pads (like many OEM and track-focused options) provide excellent stopping power but tend to create a lot of brake dust and may squeal, especially at low speeds. Harder, ceramic-based pads typically produce less dust and are quieter but may not offer the same aggressive initial "bite" as their organic or semi-metallic counterparts, especially when cold.
Frequently Asked Questions
Do I need to replace the brake pad wear sensors?
Yes. The 2005-2011 M5 uses electronic wear sensors that are designed to be replaced with the pads. Once the warning light is triggered, the sensor has been consumed and must be replaced to reset the service indicator in your iDrive system. Your M5 has multiple sensors, so ensure you get the correct ones for the axle you are servicing.
🎬 Learn how to properly install a new rear wear sensor.Should I replace my rotors at the same time as my pads?
It is highly recommended. The E60 M5 is a heavy, powerful car that puts a lot of stress on its brakes. For optimal performance and safety, installing new pads on fresh, flat rotor surfaces is the best practice. Using old rotors can lead to uneven pad wear, vibrations, and reduced braking effectiveness.
🎬 See how to replace both pads and rotors in this video.What is the difference between ceramic and semi-metallic pads?
Ceramic pads are known for being quiet, producing very little dust, and being gentle on rotors. They are great for street driving. Semi-metallic pads contain metal fibers that help dissipate heat and provide excellent performance, but they are often noisier, dustier, and more aggressive on rotors. Many high-performance and OEM pads for the M5 are organic or semi-metallic to achieve the desired stopping power.
Can I install just front or rear pads?
Yes, you can replace the pads on one axle at a time. Front and rear brake pads wear at different rates, with the front pads typically wearing out faster because they handle most of the braking force. However, it's best to use the same type or brand of pad on both axles to maintain balanced braking characteristics.
Helpful Videos
Technical Specifications
OEM Part Numbers: 34112284065 34212284296
The E60 M5 braking system uses single-piston sliding calipers on both the front and rear axles. The system includes electronic brake pad wear sensors that must be replaced with the pads.
