Cadillac STS Engine Intake Manifold Gasket Guide (2005-2011)
Fix your rough idle and check engine light by choosing the right intake manifold gasket for your 2005-2011 Cadillac STS.
- Symptoms often include a rough idle and a Check Engine Light with codes P0171 and P0174.
- If you have the 4.6L Northstar V8, it is strongly recommended to replace the starter motor during the gasket replacement to save on future labor costs.
- Quality aftermarket brands like Fel-Pro are often preferred as they are designed to seal better on older, imperfect engine surfaces.
- There is no recall for this issue; the repair is a maintenance item that the owner must cover.
Is Your Cadillac STS Running Rough? It Could Be the Intake Gasket
If your 2005-2011 Cadillac STS is experiencing a rough idle, poor acceleration, or has a Check Engine Light on with codes P0171 and P0174, a failing intake manifold gasket is a likely culprit. These gaskets are made of rubber and plastic and can become hard and brittle over time, losing their ability to seal properly. This allows extra, unmetered air to leak into the engine, causing what's known as a 'lean' condition.
Symptoms of a Bad Intake Manifold Gasket
- Check Engine Light: The most common sign is a check engine light with codes P0171 (System Too Lean Bank 1) and P0174 (System Too Lean Bank 2).
- Rough or Surging Idle: The engine may idle erratically or surge as the computer tries to compensate for the extra air.
- Hissing or Whistling Noise: You may hear a distinct sucking or whistling sound coming from the top of the engine while it's running, which is the sound of air being pulled through the bad gasket seal.
- Reduced Engine Power & Fuel Economy: Your STS may feel sluggish, and you'll likely notice you're filling up the gas tank more often.
- Engine Overheating (V8 Models): On the Northstar V8 engine, a failed gasket can also cause a coolant leak, leading to low coolant levels and potential overheating.
Pro Tip: The Starter Motor on Northstar V8s

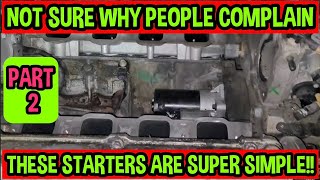

The starter on the 4.6L Northstar V8 engine is located underneath the intake manifold. Since replacing the intake gaskets requires removing the manifold anyway, it is highly recommended to replace the starter at the same time, even if it hasn't failed yet. This can save you from paying for the same labor-intensive job twice 🎬 Watch: How to access the starter under the intake manifold in the future.
Choosing the Right Aftermarket Gasket Set
You don't need to go to the dealer for this part. Quality aftermarket brands often design their gaskets to be better than the original, using improved materials to address known failure points. Here’s a breakdown of available brands.
Brand Quality Tiers
- Professional Grade (Best): Brands like Fel-Pro and ACDelco are top choices. Fel-Pro is well-regarded for designing gaskets specifically for the repair environment, meaning they seal well on older engines with less-than-perfect surfaces. ACDelco is the original equipment manufacturer and offers a direct-fit replacement.
- Quality Alternative: Victor Reinz is a reputable German brand known for making high-quality gaskets and is a trusted name in many professional shops. They are a solid choice if Fel-Pro or ACDelco are not available.
- Standard Replacement (Good): Brands like Apex offer a more budget-friendly option. While less information is available about them from owner forums, they provide a new seal that meets basic requirements.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $20 - $99 |
| Shop Labor | $300 - $800+ |
| Total Estimated Cost | $320 - $900+ |
Cost estimates are approximate and can vary based on your location, engine type (V6 vs. V8), and the specific repair shop. Labor for the Northstar V8 is typically higher.
Frequently Asked Questions
What do codes P0171 and P0174 mean?
These codes mean the engine's computer has detected too much oxygen in the exhaust, indicating a lean air-fuel mixture on both banks of the engine. A vacuum leak from a bad intake manifold gasket is one of the most common causes for both codes appearing at the same time 🎬 See how to diagnose the cause of P0171 and P0174 on a V6 or V8 engine.
Can I replace the intake manifold gasket myself?

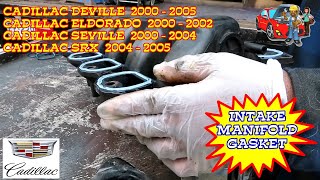

Yes, this is a feasible DIY job for someone with mechanical experience. The process involves removing the fuel rail and the upper intake manifold. However, it requires care and following the correct torque sequence when reinstalling 🎬 Follow this step-by-step guide to replace your intake manifold gasket the manifold. If you are not comfortable working on your engine, it's best to leave this job to a professional mechanic.
Is there a recall for the intake manifold gasket on the Cadillac STS?
No, there are no active recalls or special service campaigns from General Motors for failing intake manifold gaskets on the 2005-2011 Cadillac STS. The cost of the repair is the owner's responsibility.
How can I test for a leak?
A common method is to carefully spray carburetor cleaner or a propane torch (unlit) around the edge of the intake manifold where it meets the engine with the engine running. If the engine's idle speed changes or stumbles when you spray a certain area, it indicates a leak at that spot. A more professional and safer method is to have a mechanic use a smoke machine, which fills the intake with smoke to visually pinpoint the source of the leak.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12615968

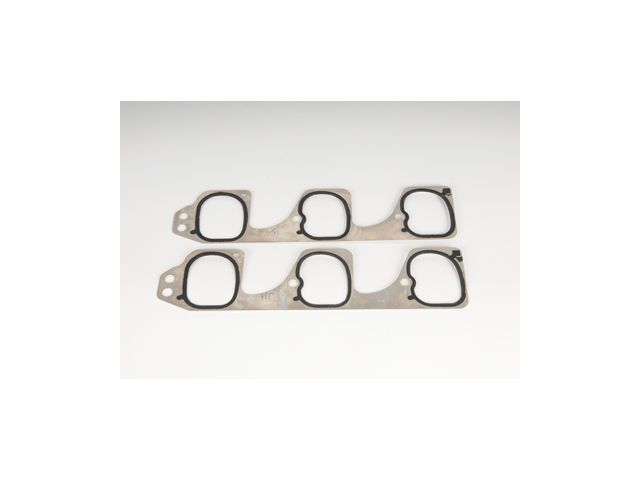

Set includes upper intake manifold (plenum) gaskets. Material is typically a combination of molded rubber and a plastic or metal carrier. Design varies between the 3.6L V6 and 4.6L V8 engines.
