Cadillac STS (2005-2011) Engine Oil Pressure Switch: A Comprehensive Guide
Understanding the signs of a failing oil pressure switch is key to protecting your STS engine from serious damage.
- A faulty oil pressure switch is a common issue that causes incorrect gauge readings and warning lights.
- Always verify true mechanical oil pressure before assuming the sensor is the only problem.
- High-quality aftermarket brands like Standard Ignition and Walker Products offer a reliable and cost-effective alternative to OEM parts.
- Using a special oil pressure switch socket can make DIY replacement much easier due to tight access.
Is Your Cadillac STS Oil Pressure Gauge Acting Up?
If you're seeing the oil pressure warning light flicker, or if the gauge on your dash is reading zero or an unusually high number, a faulty engine oil pressure switch is a likely culprit. This is a common issue for many vehicles, including the 2005-2011 Cadillac STS. While a warning light is alarming, the problem is often the sensor itself rather than a true loss of oil pressure. However, you should never ignore these warnings. This guide will help you understand the symptoms, choose the right replacement part, and know what to expect for the repair.
🎬 Watch a step-by-step replacement on a 2006 Cadillac STS.Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can create confusing symptoms. Because it provides data to your instrument cluster and engine computer, a failure can manifest in several ways:
- Oil Pressure Warning Light: The most obvious sign is the oil pressure light on your dashboard illuminating, flickering, or staying on.
- Incorrect Gauge Readings: The gauge may show zero pressure even when the engine is running fine, or it might be maxed out, indicating excessively high pressure.
- Check Engine Light: The vehicle's computer may log a fault code, such as P0520, P0521, P0522, or P0523, which will trigger the check engine light.
- Visible Oil Leaks: Sometimes the switch itself can fail physically, causing oil to leak from its body or the seal where it threads into the engine. A common failure point on GM vehicles is oil leaking through the sensor's electrical connector.
Important: Verify True Oil Pressure
If you see a low oil pressure warning, it's crucial to first verify the engine has the correct amount of oil. If the oil level is fine, a mechanic should use a mechanical gauge to test the actual oil pressure. This confirms whether you have a simple sensor problem or a more serious internal engine issue, like a failing oil pump.
Choosing the Right Aftermarket Part
For the 2005-2011 STS, you don't necessarily need to pay for an OEM part from the dealer. Several reputable aftermarket brands offer quality replacements that meet or exceed original specifications. Here’s a look at the brands available:
- Standard Ignition (Standard Motor Products): Often considered a top-tier aftermarket brand, Standard produces parts in North America and emphasizes quality control, with 100% testing. They are a reliable choice for a direct-fit replacement. 🎬 Learn more about the quality of Standard oil pressure switches.
- Walker Products: Another US-based manufacturer, Walker Products are built to meet or exceed OE standards and are manufactured in ISO 9001/IATF16949 certified facilities. They are known for durable construction designed to resist heat and vibration.
- Vemo, True Tech, Global Parts: These brands typically fall into the value-oriented category. While they offer a more budget-friendly option, there is less specific information available about their long-term performance on Cadillac models. They can be a good choice for a quick repair, but for long-term peace of mind, a brand with a stronger reputation for engine management parts may be preferable.
Pro Tip: Get the Right Socket
The oil pressure switch on the STS is located in a tight spot, often near the oil filter housing and partially blocked by a power steering line. A special, short oil pressure switch socket (typically 1-1/16 inch) can make the job significantly easier and prevent the need to remove other components.
Cost of Replacing the Engine Oil Pressure Switch
The total cost will depend on whether you do the job yourself or take it to a shop. The part itself is affordable, but labor can add up due to the sensor's location.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $40.10 - $97.04 |
| Shop Labor | $122 - $179 |
| Total Professional Repair | $170 - $227 |
Frequently Asked Questions
Where is the oil pressure switch located on a 2005-2011 Cadillac STS?
The sensor is typically located on the engine block, near the oil filter housing. 🎬 See the exact location of the sensor on the V6 engine. On both the V6 and V8 engines, it can be in a tight space, sometimes requiring a special socket to access without removing other parts like the power steering line.
Are there any recalls for the oil pressure switch on the Cadillac STS?
No, there are no specific recalls from the NHTSA for the engine oil pressure switch on the 2005-2011 Cadillac STS. Searches for Technical Service Bulletins (TSBs) also did not reveal any specific documents related to this part for the STS, though GM has issued TSBs for similar issues on other models.
Can I drive my STS with a bad oil pressure switch?
It is not recommended. If the switch is faulty and giving a false low-pressure reading, you might be fine. However, if the warning is accurate and your engine truly has low oil pressure, continuing to drive could cause catastrophic engine failure. Always get the vehicle checked as soon as possible.
Is an aftermarket oil pressure switch as good as the OEM part?
For this specific part, high-quality aftermarket brands like Standard Ignition and Walker Products are widely considered to be reliable and are manufactured to meet or exceed OEM specifications. Given the significant cost savings, a reputable aftermarket part is an excellent choice for most owners.

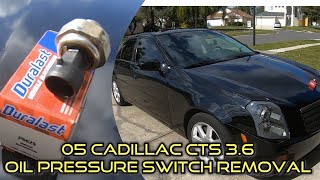

Helpful Videos
Technical Specifications
OEM Part Numbers: 12616646 12677836
Connector: 1 Terminal, Thread Size: M14 x 1.5 (Varies by engine/year, confirm fitment)
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
