Cadillac STS Ignition Coil Guide for 2005-2011 Models
If your STS is running rough, a failing ignition coil is a likely culprit; here's how to choose the right replacement.
- Verify if you have the 3.6L V6 or 4.6L V8 engine before buying, as they use different coils.
- Symptoms include a check engine light (P0300-P0308), rough idle, and hesitation when accelerating.
- Replacing all coils at once on a higher mileage vehicle is a smart preventative measure.
- ACDelco and Delphi are considered OEM-quality choices, offering the best reliability.
Is Your Cadillac STS Running Rough? It Could Be an Ignition Coil
A failing ignition coil is a common issue on many vehicles, including the 2005-2011 Cadillac STS. When a coil starts to go bad, it can't deliver the high voltage the spark plug needs. This leads to an incomplete burn of fuel in the cylinder, a condition known as a misfire. Symptoms can start small, like a slight hesitation, but can become more serious, potentially leaving you stranded or causing damage to other engine components like the catalytic converter.
Engine Warning: V6 vs. V8 Northstar
The 2005-2011 Cadillac STS was available with two main engines: a 3.6L V6 and a 4.6L Northstar V8. 🎬 Watch: How to change coil packs on a Northstar V8 engine. These engines use different ignition coils. It is critical to verify your engine type before ordering to ensure you get the correct parts. The V6 engine requires six coils, while the V8 requires eight.
Symptoms of a Failing Ignition Coil
A bad ignition coil will make its presence known through poor engine performance. Here are the most common signs:
- Check Engine Light: This is often the first sign. A diagnostic scan will typically show codes from P0300 (random misfire) to P0308 (misfire on cylinder 8), indicating which cylinder is having a problem.
- Engine Misfires: The car may feel like it's jerking, sputtering, or bucking, especially when you accelerate.
- Rough Idle: When stopped, the engine may vibrate or shake more than usual.
- Loss of Power: Your STS may feel sluggish and slow to accelerate.
- Worse Fuel Economy: When a cylinder isn't firing correctly, the engine becomes less efficient, burning more gasoline.
- Trouble Starting: A weak or dead coil can make it difficult to start the engine.
Known Issues, Recalls, and Service Bulletins
Searches for the 2005-2011 Cadillac STS did not reveal any specific recalls or widespread Technical Service Bulletins (TSBs) directly related to ignition coil failure from the National Highway Traffic Safety Administration (NHTSA). However, one TSB (PIP5038B) for the 2008-2009 STS with the 3.6L V6 engine mentions that misfires can be caused by poorly grounded ignition coils, recommending cleaning the ground terminals. While no major recalls exist for the coils themselves, it's a known maintenance item that wears out over time.
Choosing the Right Aftermarket Ignition Coil
When replacing ignition coils, you don't have to buy the expensive OEM part from a dealer. The aftermarket offers a wide range of quality options. They can be grouped into tiers based on reputation and quality.
Tier 1: OEM-Equivalent Brands
These brands are often the original equipment manufacturers for General Motors or have a reputation for matching that quality. They are the most reliable choice for a long-lasting repair.
- ACDelco: As GM's in-house parts brand, this is the closest you can get to the original part.
- Delphi: Delphi was once part of GM and is a major OE supplier. Their coils are widely considered to be of equal quality to ACDelco.
- Bosch & NGK: Both are top-tier automotive parts manufacturers with excellent reputations for quality and reliability in ignition components.
Tier 2: Quality Aftermarket Brands
These brands offer a great balance of price and performance. They are trusted by many professional mechanics and DIYers.
- Standard Ignition (SMP): A long-standing brand known for producing reliable replacement parts.
- Hitachi: An OE supplier for many Japanese brands, Hitachi also produces high-quality ignition parts for other vehicles.
- Spectra Premium: Known for quality fuel and engine management parts.
Tier 3: Value-Oriented Brands
These brands provide a budget-friendly option. While they may not have the same longevity as premium brands, they can be a good solution for older, higher-mileage vehicles or if you're on a tight budget. This category includes brands like DriveWire, True Tech, and others. When choosing these, buying a full set can sometimes be more cost-effective than a single premium coil.
Pro Tip: Replace in Sets?
If one coil fails on a high-mileage STS, the others are likely not far behind. Since the plastic and internal windings degrade over time, it's often wise to replace all the coils at once, especially on the V6 where some coils are harder to access. This saves you from repeating the repair in the near future. While you're at it, it's a perfect time to replace the spark plugs too.
🎬 See how to properly replace spark plugs during your coil service.Cost of Replacing Ignition Coils on a 2005-2011 Cadillac STS
| Part Type | Estimated Cost (Per Coil) |
|---|---|
| New OEM (Dealer) | $90 - $150+ |
| New Aftermarket (Tier 1) | $50 - $90 |
| New Aftermarket (Tier 2 & 3) | $32 - $60 |
| Shop Labor | $100 - $250 |
Note: Costs are estimates and can vary based on location, brand, and your specific vehicle's engine. Labor costs can be higher if more components need to be removed for access.
Frequently Asked Questions (FAQ)
Can I replace the ignition coils myself?
Yes, this is a very DIY-friendly job, especially on the 3.6L V6 engine. The coils are located on top of the engine and held in by a single 10mm bolt. You simply disconnect the electrical connector, remove the bolt, and pull the old coil out. The process is straightforward and requires basic hand tools.

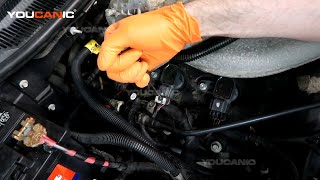

🎬 Watch this step-by-step guide to replacing your V6 ignition coils.Should I replace all my ignition coils at once?
It is highly recommended, especially if your car has over 100,000 miles. Ignition coils are subjected to the same heat and vibration, so they tend to fail around the same time. Replacing them all at once can save you from future breakdowns and repeated labor.
What happens if I don't replace a bad ignition coil?
Continuing to drive with a misfire can cause unburnt fuel to enter the exhaust system, which can overheat and destroy your expensive catalytic converter. It also puts extra strain on other engine components and can lead to stalling, which is a safety risk.
What's the difference between a TSB and a recall?
A recall is issued for a safety-related defect, and the manufacturer must perform the repair for free. A Technical Service Bulletin (TSB) is a notice sent to dealers with information on how to diagnose and fix a common, non-safety-related problem. Repairs for TSBs are typically not covered by the manufacturer unless the vehicle is still under warranty.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12566569 12613057 12629424 UF375 UF564 12583514 UF372
Coil-on-plug design. One coil required per cylinder (6 for V6, 8 for V8). Held on by a single 10mm bolt.
