Ignition Knock Sensor Guide for the 2005-2011 Cadillac STS
Learn how to identify and choose the right replacement knock sensor to fix performance issues on your Cadillac STS.
- Replacement is labor-intensive; the intake manifold must be removed, making labor the biggest cost.
- Always replace both knock sensors at the same time, along with the intake manifold gaskets.
- Due to the high labor cost, use only top-tier brands like ACDelco, Delphi, or Bosch to avoid repeat repairs.
- A bad knock sensor will trigger the Check Engine Light with codes like P0325 or P0330.
Is Your Cadillac STS Knock Sensor Failing?
A bad knock sensor doesn't always make the engine knock. In fact, the most common sign is the Check Engine Light turning on. Because the sensor's signal is missing, the engine computer gets nervous. It defaults to a "safe" mode to protect the engine. This often leads to noticeable driving problems.
Common Symptoms of a Bad Knock Sensor:
- Check Engine Light: The most common sign, with codes like P0325, P0327, P0330, or P0332 stored in the computer.
- Reduced Engine Power: The car may feel sluggish and slow to accelerate.
- Poor Fuel Economy: The engine runs less efficiently in safe mode, costing you more at the pump.
- Audible Pinging or Knocking: You might hear a metallic pinging sound during acceleration if the sensor fails to detect and correct a real knock condition.
- Hesitation: The engine might hesitate or stumble when you press the gas pedal. 🎬 Watch: How to test for a bad knock sensor and symptoms.
A Labor-Intensive Job

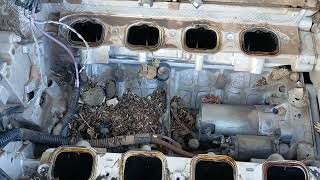

On both the 3.6L V6 and 4.6L V8 engines in the 2005-2011 Cadillac STS, the two knock sensors are located in the engine valley, underneath the intake manifold. This means the entire intake manifold must be removed to access them. 🎬 See these basic tips for removing the Northstar intake manifold. This turns a simple sensor swap into a multi-hour job, making labor the most expensive part of the repair.
Choosing the Right Aftermarket Knock Sensor
Because the labor is so intensive, this is not a job you want to do twice. Using a low-quality, cheap sensor is a huge gamble. If it fails prematurely, you will have to pay for the same expensive labor all over again. We recommend sticking to trusted, high-quality brands.
Brand Quality Tiers
- Tier 1: OEM-Equivalent Brands (Recommended)
These brands are known to be original equipment manufacturers for GM or have a reputation for matching OEM quality. Given the high labor cost, these are the smartest choice.
Brands: ACDelco, Delphi, Bosch, NGK (also known as NTK). - Tier 2: Professional-Grade Aftermarket
These brands are well-known in the industry for producing reliable parts that meet or exceed OEM specifications. They are a solid choice if a Tier 1 brand is not available.
Brands: Standard Ignition (SMP), Walker Products. - Tier 3: Economy Brands
While these sensors are the most affordable, their quality and longevity can be inconsistent. The low part price is tempting, but the risk of early failure and repeating a costly repair is high. Use with caution.
Brands: Facet, Global Parts, Holstein, Motorad, True Tech.
Pro Tip: Replace in Pairs and Change the Gaskets
Your STS has two knock sensors. Since you're already paying for the labor to remove the intake manifold, you should replace both sensors at the same time, even if only one has failed. Also, you MUST replace the intake manifold gaskets with a new set. Re-using old gaskets will cause vacuum leaks and other engine problems.
Cost to Replace a Cadillac STS Knock Sensor
The cost is dominated by labor due to the sensor's location. Estimates from some online tools may be misleadingly low because they don't account for the intake manifold removal.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Sensors (Pair) | $30 - $160 |
| New OEM Sensors (Pair) | $120 - $250 |
| Shop Labor | $350 - $750 |
| Total Estimated Cost | $380 - $910 |
Costs are estimates and will vary by location and parts chosen. This table reflects the high-labor nature of this specific repair.
Frequently Asked Questions
How many knock sensors does my 2005-2011 Cadillac STS have?
Your Cadillac STS, whether it has the V6 or V8 engine, is equipped with two knock sensors. They are typically referred to as Bank 1 and Bank 2 sensors.
Why is the replacement so expensive?
The high cost is due to the location of the sensors. They are buried under the intake manifold, and it takes a mechanic 3-5 hours to remove it, replace the sensors, and put everything back together. The parts themselves are not that expensive, but the labor is significant.
What are the P0325 and P0330 codes?
P0325 refers to a malfunction in the circuit for the knock sensor on Bank 1 (the side of the engine with cylinder #1). P0330 indicates the same issue for the knock sensor on Bank 2. These codes are the most direct indicators of a knock sensor problem.
🎬 Watch: Causes and fixes for the P0325 knock sensor code.Is ACDelco the same as the original GM part?
ACDelco is GM's official parts brand. Often, the ACDelco part is identical to the original factory part, sometimes made by a supplier like Delphi and simply put in an ACDelco box. For your Cadillac, choosing ACDelco or Delphi is a safe bet for OEM quality.
Were there any recalls for the knock sensor on the STS?
No, there have been no safety recalls issued by the NHTSA for the ignition knock sensor on the 2005-2011 Cadillac STS. Recalls for this vehicle were related to other issues like the fuel pump module.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12566845 12586645 12618603
Your 2005-2011 Cadillac STS is equipped with two (2) knock sensors. They are located under the intake manifold in the engine valley. Replacement requires removing the intake manifold and replacing the associated gaskets.
