2005-2011 Dodge Durango Universal Joint Replacement Guide
A clunking or vibrating driveshaft on your Durango is a classic sign of a worn U-joint; here’s what you need to know to replace it.
- Listen for clunking when shifting gears or a rhythmic vibration/squeak while driving, as these are primary symptoms of U-joint failure.
- No specific recalls exist for 2005-2011 Durango U-joints; failure is typically from normal wear.
- Choose between maintenance-free sealed joints (like OEM) or potentially longer-lasting greasable joints that require periodic service.
- Premium brands like Dana Spicer and Moog are highly recommended for durability, especially for towing or heavy use.
Is Your Durango's Drivetrain Making Noise?
If you're hearing a distinct "clunk" when you shift into Drive or Reverse, or a rhythmic squeaking or vibration while driving, you're likely dealing with a failing universal joint. These symptoms are your vehicle's way of telling you that a crucial part of the driveshaft is worn out. Ignoring these signs can lead to more severe vibrations, and in a worst-case scenario, a complete failure where the driveshaft can detach from the vehicle, causing a loss of power and significant damage.
Warning Signs of a Bad U-Joint
- Clunking Noise: A loud clunk or bang when shifting gears is the most common symptom, caused by excessive play in the worn joint.
- Vibration: A vibration felt through the floor or seats that increases with speed can be caused by a failing U-joint throwing the driveshaft out of balance.
- Squeaking Sound: A cyclical squeak that matches the rotation of the driveshaft (not the wheels) often points to a dry, unlubricated U-joint.
- Visible Rust/Grease: Seeing rust-colored dust or grease flung around the U-joint area under the vehicle is a sign the seals have failed.
Known Issues, Recalls, and Service Bulletins
For the 2005-2011 Dodge Durango, there are no specific recalls or widespread Technical Service Bulletins (TSBs) issued by Dodge for universal joint failure. Problems with U-joints on these vehicles are typically due to normal wear and tear over time, lack of lubrication, or exposure to harsh conditions like road salt. While there were several recalls for this generation of Durango, they primarily concerned airbags and other components, not the driveshaft or its U-joints.
Choosing the Right Aftermarket U-Joint
When replacing a U-joint, you have a choice between sealed, maintenance-free parts and greasable ones that can last longer with periodic maintenance. Original equipment (OEM) U-joints are often sealed. Many aftermarket brands offer a greasable option, which is a popular upgrade.
Brand Quality Tiers
Not all aftermarket parts are created equal. Based on owner feedback and general industry reputation, brands for your Durango can be grouped into the following tiers:

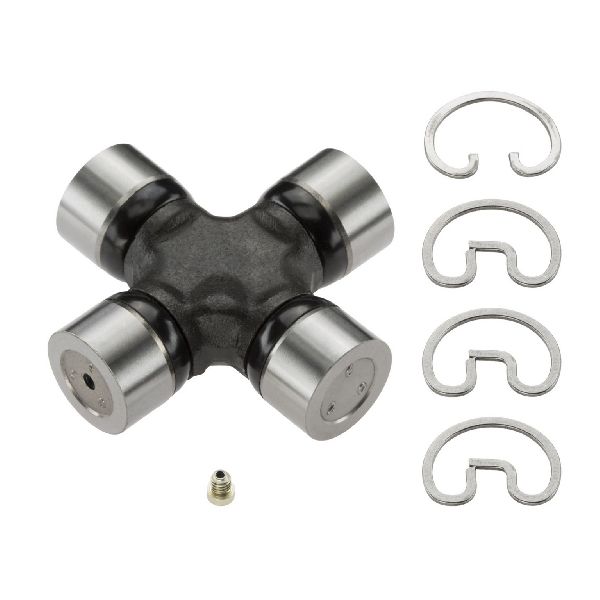

- Premium / Heavy-Duty (Best): Brands like Dana Spicer Chassis and Moog are considered top-tier. Spicer is an original equipment manufacturer for many vehicles and is known for its durability. Moog's "Super Strength" line is also highly regarded, often featuring a greasable design for extended life. These are excellent choices if you tow, go off-road, or simply want the most durable part available.
- OE-Quality (Better): SKF and ACDelco's Professional line fall into this category. These brands are known for producing high-quality bearings and driveline components that meet or exceed OEM specifications. They are a reliable choice for a daily-driven Durango.
- Standard / Value (Good): GMB and ACDelco's standard lines offer a dependable replacement at a more budget-friendly price point. These are suitable for standard driving conditions and are a significant step up from no-name parts.
Greasable vs. Sealed U-Joints

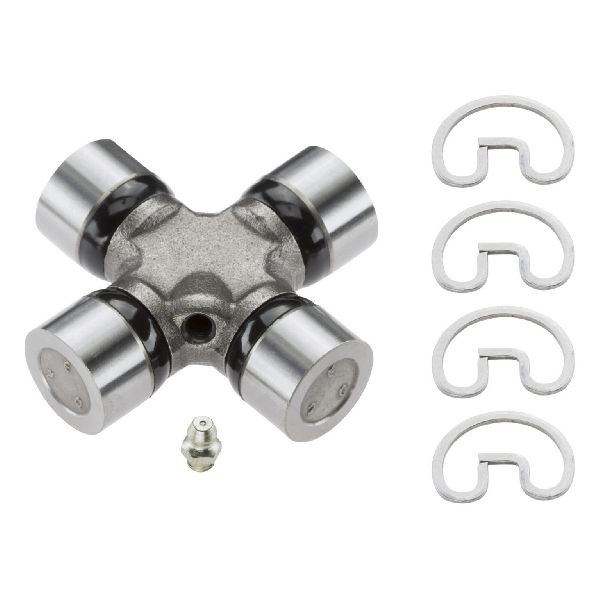

Sealed (Non-Greasable) U-joints, like many original parts, are maintenance-free but must be replaced when they wear out. They are strong because the cross is solid. Greasable U-joints have a small fitting (a zerk) that allows you to add fresh grease periodically. This pushes out old grease, moisture, and contaminants, potentially extending the part's life. However, they are slightly weaker due to the grease channels drilled through the body and require maintenance. For most owners, a high-quality sealed joint from a brand like Spicer is an excellent, worry-free option.
How Much Does a U-Joint Replacement Cost?
The cost depends on whether you do the work yourself or take it to a shop. The parts themselves are affordable, but the labor can be intensive.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket U-Joint Part | $18 - $75 |
| Shop Labor | $150 - $300 |
| Total Professional Replacement | $170 - $375 (per joint) |
Note: Prices are estimates and can vary by location and vehicle configuration (RWD vs. 4WD). Your Durango may have two or more U-joints. It is often recommended to replace them in pairs or all at once.
Frequently Asked Questions
How many U-joints does my 2005-2011 Durango have?
A typical rear-wheel-drive Durango has at least two U-joints on the rear driveshaft. Four-wheel-drive (4WD) models have additional U-joints on the front driveshaft. It's best to inspect your vehicle to confirm the exact number before ordering parts.
Can I replace just one bad U-joint?
Yes, but it's often recommended to replace them in pairs (e.g., both on the rear driveshaft). If one has failed due to age and mileage, the others are likely not far behind. Replacing them all at once saves on future labor costs.
Is replacing a U-joint a DIY job?
It can be, but it's a moderately difficult job. It requires removing the driveshaft and using either a bench vise with large sockets or a special U-joint press tool to force the old joint out and press the new one in. If done incorrectly, you can damage the driveshaft. Many DIYers find it challenging.

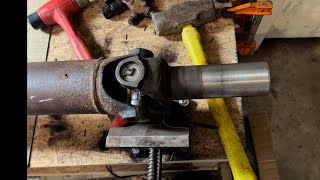

🎬 Watch how to replace a U-joint without using special tools.What happens if a U-joint fails completely while driving?
This is a dangerous situation. The driveshaft can detach from the vehicle, causing a complete loss of power to the wheels. The loose, spinning driveshaft can cause catastrophic damage to the transmission, exhaust, fuel tank, and underside of your vehicle. This is why addressing the warning signs early is critical.
Do I need to balance the driveshaft after replacing the U-joints?
If the replacement is done carefully without damaging or denting the driveshaft tube, balancing is not usually required. However, if you still feel a vibration after the repair, the driveshaft may be out of balance and should be checked by a driveline specialist shop.
Helpful Videos
Technical Specifications
OEM Part Numbers: 52123553AA 52853333AB 52853334AB
The 2005-2011 Dodge Durango uses U-joints with outside snap rings. The specific U-joint size can vary between the front and rear driveshafts and between RWD and 4WD models. Always verify the bearing cap diameter and overall span before purchasing.
