Ford Mustang Engine Coolant Bypass Hose: A Guide for 2005-2011 Models
Understanding the small but critical coolant bypass hose on your S197 Mustang.
- On 4.0L V6 models, the plastic thermostat housing is a common failure point and should be inspected and likely replaced with the hose.
- A coolant leak should never be ignored, as it can quickly lead to engine overheating and catastrophic damage.
- Aftermarket brands like Gates, Dayco, and ACDelco offer reliable, cost-effective alternatives to the OEM Motorcraft hose.
- The 4.6L V8 has a different, more complex heater hose assembly under the intake manifold that is also a common leak source but a much bigger job to replace.
Is Your Mustang's Bypass Hose Failing?
A failing coolant bypass hose is more than just a small leak; it's a warning sign that can lead to major engine trouble if ignored. These hoses are made of rubber and are constantly exposed to high temperatures and pressure, causing them to wear out over time. A leak in this hose can starve your engine of vital coolant, leading to overheating.
Symptoms of a Bad Bypass Hose
- Coolant Puddles: Small puddles or drips of orange or yellow coolant under the front of your engine are a clear sign of a leak.
- Sweet Smell: A distinct, sweet smell from the engine bay is often the scent of coolant leaking onto hot engine parts and evaporating.
- Low Coolant Level: If you constantly have to top off the coolant in the reservoir, you have a leak somewhere in the system.
- Visible Hose Damage: Inspect the hose for cracks, splits, brittleness, or soft, spongy spots. A bulging hose is weak and could burst at any moment.
- Engine Overheating: If your temperature gauge starts climbing into the red, a significant coolant leak is a likely cause. You may also see steam coming from under the hood.
Check the Thermostat Housing on V6 Models!

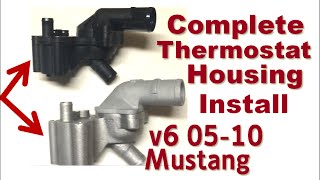

For 2005-2010 Mustangs with the 4.0L V6 engine, the most common source of a coolant leak in this area is not the hose, but the plastic thermostat housing it connects to. This plastic becomes brittle with age and frequently develops hairline cracks. Before you replace the hose, carefully inspect the housing for any signs of leaks or cracks. It is highly recommended to replace the plastic housing with a new aluminum aftermarket version 🎬 Watch: Why you should upgrade to a metal thermostat housing. at the same time you replace the hose to prevent future leaks.
Choosing the Right Aftermarket Bypass Hose
For a simple part like a hose, you don't always need to pay dealership prices. Several reputable aftermarket brands offer excellent quality and fit for your Mustang. Here’s how they generally stack up.
| Brand Tier | Brands | Assessment |
|---|---|---|
| OEM | Motorcraft | As the original Ford part, Motorcraft guarantees a perfect fit and is made from high-quality EPDM rubber. It's the benchmark for quality and reliability. |
| Premium Aftermarket | Gates | Gates is a top-tier aftermarket manufacturer, and many mechanics consider their quality equal to OEM. They are known for excellent fitment and durability, making them a trusted alternative. |
| Standard Aftermarket | Dayco, ACDelco | Both Dayco and ACDelco are well-known brands that produce reliable hoses. While fitment can occasionally be less precise than Motorcraft or Gates, they offer a great balance of quality and value for the price. |
A Note on 4.6L V8 Models

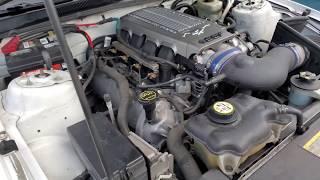

While the 4.0L V6 uses a simple, single bypass hose, the 4.6L V8 GT models have a more complex heater hose assembly that runs under the intake manifold. A leak from this assembly is a very common problem but is a much more difficult repair that requires removing the intake manifold. 🎬 See how to fix the V8 heater hose leak yourself. The parts discussed in this guide are primarily for the V6 model's simple bypass hose.
Frequently Asked Questions (FAQ)
Can I replace the engine coolant bypass hose myself?
For a 4.0L V6, yes, this is a DIY-friendly job for someone with basic mechanic skills. 🎬 Follow this step-by-step guide to replace your V6 thermostat housing. However, the space can be tight. Some owners report having to cut the old hose off. The V8 heater hose assembly is a much more advanced job requiring removal of the intake manifold.
What else should I replace with the bypass hose?
On a V6, it is almost mandatory to inspect and likely replace the plastic thermostat housing with a more durable aluminum one. You should also replace the spring clamps with new worm-gear style clamps for a better seal. It's also a good time to inspect all other coolant hoses for wear.
What kind of coolant should I use for my 2005-2011 Mustang?
Your Mustang requires a specific type of coolant to protect its aluminum components. Use a coolant that meets Ford's specifications, which is typically a yellow or orange extended-life OAT (Organic Acid Technology) coolant. Always check your owner's manual to be certain.
Is there a recall for this part?
No, there are no recalls or specific Technical Service Bulletins (TSBs) from Ford or the NHTSA for the engine coolant bypass hose on the 2005-2011 Mustang. Most cooling system issues on these models are considered regular wear and tear.
Helpful Videos
Technical Specifications
OEM Part Numbers: KM3269
Material: EPDM Rubber. Location (V6): Connects thermostat housing to water pump.
