A Ford Mechanic's Guide to 2005-2011 Mustang Suspension Strut Bellows
Learn how this small rubber boot protects your Mustang's struts from expensive damage and why it's a critical replacement part.
- A torn strut bellow guarantees premature failure of the strut itself; inspect them regularly and replace if damaged.
- Always replace strut bellows and bump stops when installing new struts; never reuse the old ones.
- For 2005-2007 models, replace the upper strut mounts at the same time to fix the common front-end clunking noise described in Ford's TSB.
- KYB and Moog are reputable aftermarket brands for this part, offering quality that meets or exceeds OEM standards.
Is Your Strut Bellow Failing?
A strut bellow doesn't have performance-related symptoms on its own; failure is determined by a visual inspection. When you have the wheels off for a brake job or tire rotation, take a close look at the suspension. A bad bellow will have visible cracks, tears, or even missing pieces, leaving the shiny strut rod exposed. Ignoring a torn bellow guarantees that the strut will fail much sooner than it should, leading to a more expensive repair.
Known Issue: Front End Noise on 2005-2007 Models
Ford issued a Technical Service Bulletin (TSB 07-18-1) for a popping or clunking noise from the front suspension on 2005-2007 Mustangs, especially during low-speed turns. This noise is almost always caused by a failed upper strut mount, not the bellow itself. However, since replacing the bellow requires taking the entire strut assembly apart, it is highly recommended to replace the strut mounts with updated parts at the same time to solve this common problem permanently.
Symptoms of a Failed Strut (What Happens After the Bellow Tears)
If a bellow has been torn for a while, the strut it was protecting is likely worn out. Signs of a failing strut on your Mustang include:
- Clunking or Rattling Noises: Often described as a "loose lumber" sound when going over bumps. This is a very common complaint for the S197 Mustang and can point to the strut, the mount, or sway bar end links.
- Bouncy, Floating Ride: The car continues to bounce after hitting a bump, feeling unstable at highway speeds.
- Nose-Diving or Squatting: The front end dips hard when you brake, or the rear squats when you accelerate.
- Uneven Tire Wear: Worn struts can cause a specific "cupped" wear pattern on your tires.
Choosing the Right Aftermarket Bellows
For the 2005-2011 Mustang, several aftermarket brands offer quality replacement bellows. Since the labor to replace the bellow is the most expensive part of the job, it's wise to choose a quality part. Never reuse old bellows on new struts.
- KYB: KYB is a well-regarded brand in the suspension world and a popular choice for Mustang owners. Their bellow kits are considered a good value, often matching or exceeding original equipment quality and including the internal foam bump stop.
- Moog: Moog is another top-tier aftermarket brand. While some users have mixed experiences with their broader product lines, their "Problem Solver" series is generally considered to be high quality. For a component like a bellow, Moog is a reliable choice.
- Skyward: Skyward is a more budget-oriented brand. While it may meet basic requirements, for a critical protective part on a performance vehicle like a Mustang, sticking with established brands like KYB or Moog is a safer investment to protect your more expensive struts.
Mechanic's Advice
The strut bellow is a classic "while you're in there" part. The labor to access it is the same as replacing the entire strut. Always install new bellows when you replace your struts. It's also the perfect time to upgrade your 2005-2007 model's original strut mounts to the improved GT500 style to fix the common front-end clunk.
| Part | Estimated Cost (Per Side) |
|---|---|
| New Aftermarket Bellow Kit (KYB, Moog, etc.) | $19.97 - $39.12 |
| Shop Labor to Install | $160 - $450 |
Frequently Asked Questions (FAQ)
Do I need to replace bellows in pairs?
Yes. Just like struts, bellows should always be replaced in pairs for the front wheels. They have been exposed to the same conditions, and if one has failed, the other is likely not far behind.
What is the difference between a strut bellow and a bump stop?
The bellow is the thin, flexible dust cover. The bump stop is a dense foam or rubber cylinder that is usually located inside the bellow. It prevents physical damage by stopping the strut from bottoming out on a hard impact. Most aftermarket bellow kits, like those from KYB, include a new bump stop.
Can I reuse the strut-to-spindle bolts?
Ford specifies that the strut-to-spindle bolts are one-time use. While many owners have reused them without immediate failure, they are designed to stretch and can come loose over time. For safety, it is best practice to install new fasteners when replacing struts.
Are there any recalls for the 2005-2011 Mustang suspension?
No. There have been no recalls issued by the NHTSA for the suspension struts or bellows on the 2005-2011 Ford Mustang. The major recalls for this generation almost all relate to Takata airbag inflators.
Technical Specifications
OEM Part Numbers: 8R3Z-18183-B 5R3Z-18183-A

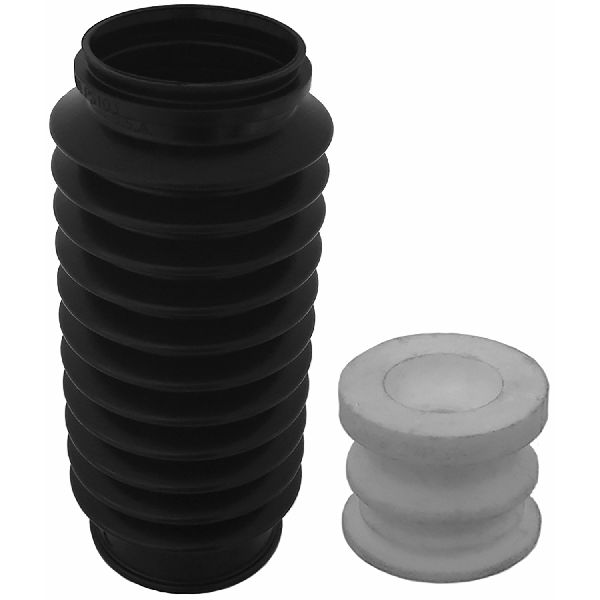

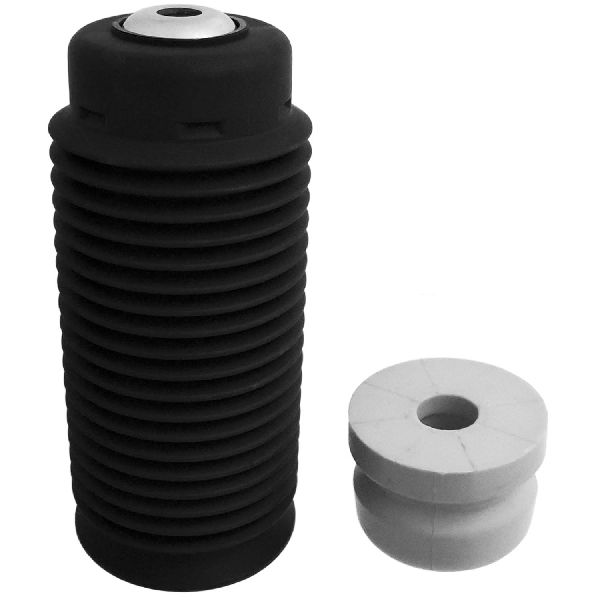

The strut bellow is a flexible boot, typically made of rubber or durable plastic, designed to fit over the strut rod of the front MacPherson strut assembly. Many aftermarket kits include an integrated polyurethane foam bump stop.
