Lincoln Navigator Ignition Knock Sensor Guide (2005-2011)
Understanding knock sensor replacement for your Navigator's 5.4L V8 engine.
- Replacement is a major, labor-intensive job because the sensors are located under the intake manifold.
- Due to the high labor cost, use high-quality brands like Bosch, Delphi, or NGK (NTK) to avoid repeat failures.
- Always replace both sensors, the wiring harness, and the intake manifold gaskets at the same time.
- Before starting the repair, check wiring and ground connections, as they can cause the same P0325/P0330 codes.
Is Your Navigator's Knock Sensor Failing?
A bad knock sensor can cause noticeable problems. Because the sensor's job is to allow the engine to run at its best, a failure forces the computer into a 'safe' mode. This mode retards ignition timing to prevent any potential damage, which results in poor performance and fuel economy.
Key Symptoms of a Bad Knock Sensor:
- Check Engine Light: This is the most common sign. You will likely see codes P0325 (Bank 1) or P0330 (Bank 2). 🎬 Watch: How to test for symptoms before replacing your sensor.
- Poor Engine Performance: Your Navigator may feel sluggish, hesitate when you accelerate, and generally lack power.
- Reduced Fuel Economy: An engine running in 'safe' mode is less efficient, causing you to use more gas.
- Engine Pinging or Knocking: If the sensor fails completely, the computer can't correct for detonation, and you might hear a metallic pinging sound, especially under load.
A Word on Replacement Difficulty

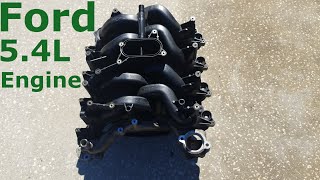

On the 2005-2011 Lincoln Navigator's 5.4L V8 engine, the two knock sensors are located in the engine valley, underneath the entire intake manifold. This is not a simple repair. It is a labor-intensive job that requires removing the fuel rails, throttle body, and the intake manifold itself to gain access. Because of the 🎬 See this walkthrough of the intake manifold removal process. high labor cost, this is a job you only want to do once.
Choosing the Right Aftermarket Knock Sensor
Given the significant labor involved, selecting a high-quality replacement part is critical to avoid a repeat repair. While OEM is always an option, several reputable aftermarket brands offer reliable alternatives. Forum discussions among Ford 5.4L owners often recommend sticking to well-known brands.
Brand Tiers for Your Navigator

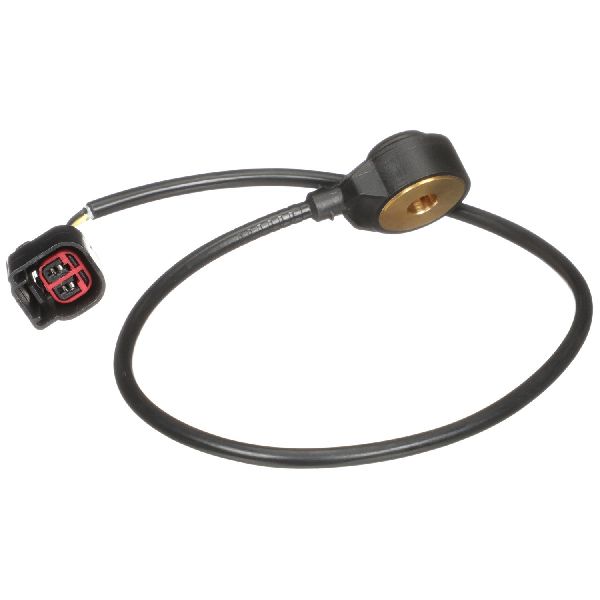

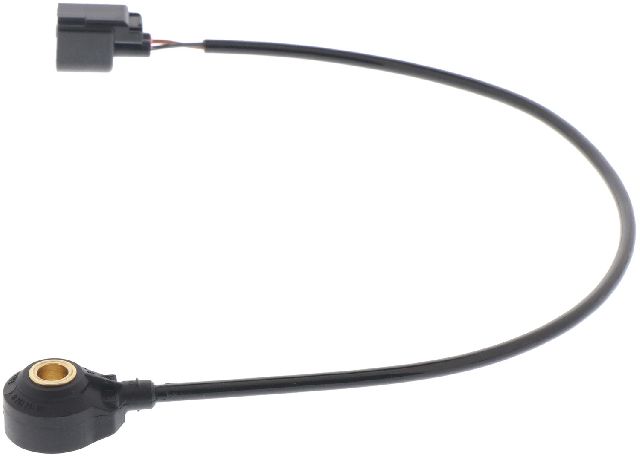

- Top Tier (OEM Equivalents): Brands like Bosch, Delphi, and NGK (NTK) are often original equipment suppliers for many automakers. They are widely trusted for their quality and reliability. Many owners report success using these brands for the 5.4L engine.
- Trusted Aftermarket: Standard Ignition (SMP) is a long-standing aftermarket manufacturer with a generally solid reputation. They are a viable option if a top-tier brand is unavailable.

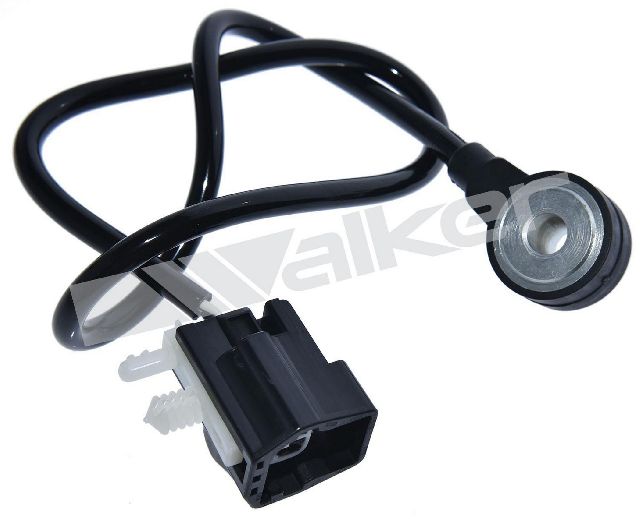

- Budget-Friendly: Brands like Walker Products, Holstein, and Global Parts offer more economical choices. While they meet OE fit and form specifications, for a labor-intensive job like this, investing in a top-tier brand is strongly recommended to ensure longevity.
Pro Tip: Replace in Pairs and Don't Forget the Gaskets
Since you have to remove the intake manifold to access one sensor, you should always replace both knock sensors and the wiring harness at the same time. It is also mandatory to replace the intake manifold gaskets to prevent vacuum leaks after the job is done. This is a perfect time to inspect the plastic intake manifold for cracks and check the condition of the Intake Manifold Runner Control (IMRC) linkage.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Knock Sensors (Set of 2) | $70 - $120 |
| New OEM (Motorcraft) Knock Sensors (Set of 2) | $103 - $135 |
| Shop Labor | $493 - $723 |
| Total Estimated Cost | $596 - $858 |
Frequently Asked Questions
Can I replace just the one bad knock sensor?
You could, but it is highly discouraged. The labor to access the sensors is the same for one or both. Replacing both at the same time is cheap insurance against having to do the entire job again 🎬 Watch: Step-by-step guide to installing the new knock sensors. if the second original sensor fails soon after.
Could something else cause a knock sensor code like P0325 or P0330?
Yes. Before replacing the sensors, it's wise to inspect the wiring harness that runs to the back of the engine. Damaged wires or corroded connectors can cause the same codes. In some cases, a bad ground connection at the firewall has been found to be the culprit. A failing ignition coil arcing to the engine block can also induce electrical noise that triggers knock sensor codes.
Are there any recalls for the knock sensor on the 2005-2011 Navigator?
No, there are no specific recalls for the ignition knock sensors on the 2005-2011 Lincoln Navigator. Searches of the NHTSA database did not reveal any recalls related to this component.
Do I need a special tool to replace the knock sensors?
Aside from standard mechanic's tools to remove the intake manifold, you will need a torque wrench. The knock sensors must be torqued to a specific value (18 ft-lbs is a common spec for these engines) to function correctly. Over-tightening or under-tightening can lead to false readings or damage to the new sensor.
Helpful Videos
Technical Specifications
The 5.4L 3V engine in the 2005-2011 Navigator uses two knock sensors located in the engine valley, under the intake manifold. Replacement requires removing the intake manifold.
