A/C Compressor Replacement Guide for the 2005-2011 Mercury Mariner
Here is what you need to know before buying a new A/C compressor for your Mariner.
- Crucially determine if you have a gas or hybrid model; they use completely different, non-interchangeable compressors.
- Before buying a new compressor, check if a wide A/C clutch air gap is the real problem, as it can be a much cheaper fix.
- For best results and longevity, choose an OEM-quality brand like Motorcraft or Denso.
- You MUST replace the accumulator/drier and orifice tube to prevent immediate failure of the new compressor and to validate its warranty.
Is Your Mariner a Gas or Hybrid Model? This is Critical.
Before you start shopping, you must know which engine your 2005-2011 Mercury Mariner has. The type of A/C compressor you need is completely different depending on the engine, and they are not interchangeable.
- Gas Engines (2.3L, 2.5L, & 3.0L V6): These use a traditional, belt-driven A/C compressor. This is the most common type.
- Hybrid Engines: These models use a special high-voltage electric A/C compressor. This part is significantly more expensive and different from the gas engine version. Note that some early (2008 and prior) hybrid models may still use a belt-driven compressor, which will not provide cold air when the gas engine shuts off in EV mode. Always verify which type your specific vehicle has before ordering.
Common Signs of a Failing A/C Compressor
A bad A/C compressor will show several clear warning signs. The most obvious is warm air blowing from the vents when the A/C is on. You might also hear strange noises, like a grinding or squealing sound, which points to a failing internal bearing. Another common symptom is the A/C clutch failing to engage; you won't hear the typical 'click' when you turn on the air conditioning.
Pro Tip: Check the Clutch Air Gap First
A very common issue on these vehicles is the A/C clutch not engaging when the engine is hot. This is often caused by the space between the clutch plate and the pulley (the "air gap") becoming too wide over time. The magnetic field isn't strong enough to pull the clutch in across the large gap. Sometimes, this can be fixed by removing a small shim to reduce the gap 🎬 Watch this video to see how to fix the clutch gap., saving you from buying a whole new compressor. The correct gap is typically 0.35mm - 0.85mm.
Choosing the Right Aftermarket Brand
When replacing your A/C compressor, you have several brands to choose from. They generally fall into different tiers of quality and price.

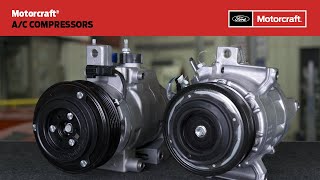

- Tier 1 (OEM Quality): Motorcraft is the original Ford part and offers guaranteed fit and performance, though it's the most expensive option. 🎬 Learn more about the benefits of choosing Motorcraft A/C compressors. Denso is an original equipment manufacturer for many car brands and is widely considered the best aftermarket choice, offering OEM-level quality, reliability, and quiet operation.
- Tier 2 (Reputable Aftermarket): Valeo is another brand that often supplies original parts to carmakers and has a good reputation for quality.

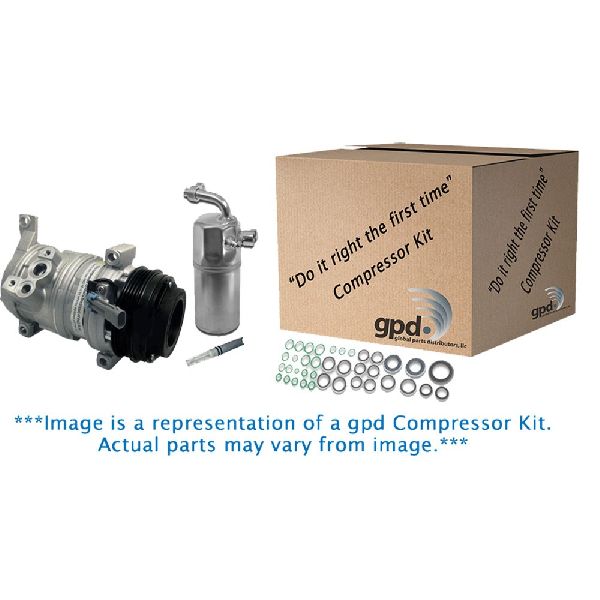

- Tier 3 (Budget Options): Brands like Four Seasons, Global Parts (GPD), and UAC are widely available and more affordable. However, owner reviews are mixed, with some reporting early failures. These can be a good choice for a budget-focused repair, but may not have the longevity of a Denso or Motorcraft unit.
Warning: System Contamination and Warranty Requirements
If your old compressor failed internally, it likely sent metal shavings and debris throughout the entire A/C system. This is sometimes called "black death." Installing a new compressor without cleaning the system will cause the new part to fail immediately. To prevent this and to validate the warranty on your new compressor, you MUST also replace the A/C accumulator (also called a receiver/drier) and the orifice tube. The system should also be professionally flushed before installing the new parts.
Estimated Replacement Costs
The cost to replace the A/C compressor in a Mercury Mariner can vary. The part itself is the largest expense, followed by the labor to install it and recharge the system.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Compressor (Gas Engine) | $190 - $405 |
| New OEM (Motorcraft) Compressor (Gas Engine) | $315 - $575 |
| Shop Labor & System Recharge | $140 - $435 |
| Total Estimated Cost (Aftermarket) | $330 - $840 |
| Total Estimated Cost (OEM) | $455 - $1010 |
Note: Prices are estimates and do not include taxes, fees, or the cost of additional required parts like the accumulator and orifice tube. Hybrid compressor costs are significantly higher.
Frequently Asked Questions
Can I replace just the A/C clutch?
Yes, the clutch can be replaced separately. However, if the compressor's bearing is noisy or if the compressor is old, it is often better to replace the entire compressor and clutch assembly. The cost of a clutch kit plus the labor to install it can sometimes be close to the cost of a complete new aftermarket compressor.
Do I need special tools to replace an A/C compressor?
Yes. While the unbolting is straightforward, the A/C system is highly pressurized with refrigerant. It is illegal and unsafe to release this into the atmosphere. You need a special machine to safely recover the old refrigerant and then recharge the system after the new parts are installed. This is why most people have a professional shop do the final steps.
Why did my A/C stop working after I used a DIY recharge can?
DIY recharge cans can be risky. If the system's problem was not low refrigerant, adding more can over-pressurize the system, causing the compressor to shut off for safety or even causing damage. These cans also don't address the original leak, which is the most common reason for low refrigerant.
Are there any recalls for the A/C compressor on my Mariner?
No, there are no specific safety recalls issued by the NHTSA for the A/C compressor on the 2005-2011 Mercury Mariner. There have been recalls for other components on the vehicle, such as the power steering and fuel module.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5L8Z-19703-AA 8L8Z-19703-B 8L8Z-19703-A 9L8Z-19703-A 5M6Z-19V703-AA AM6Z-19703-B
Engine compatibility is critical. Gas engines (2.3L, 2.5L, 3.0L) use a belt-driven compressor. Hybrid models use a high-voltage electric compressor. Refrigerant type is R-134a. Clutch air gap should be 0.35mm - 0.85mm.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
