A Mechanic's Guide to Spark Plugs for the 2005-2011 Mercury Mariner
Choosing the right spark plugs for your Mariner's 4-cylinder or V6 engine is critical for performance and avoiding future problems.
- The V6 (3.0L) engine requires removing the intake manifold for the rear plugs, a much bigger job than the 4-cylinder.
- For the V6, use high-quality Iridium spark plugs (NGK, Denso, Motorcraft) to maximize the long and difficult replacement interval.
- A Ford TSB warns that bad plugs can lead to ignition coil and even engine computer (PCM) failure; don't neglect this maintenance.
- Always confirm your engine size (I4 or V6) before ordering parts, as the job requirements and recommended parts differ greatly.
Signs of Failing Spark Plugs
When your Mariner's spark plugs are wearing out, you'll likely notice it in the way your vehicle drives. These symptoms can start small but will get worse over time.
🎬 Watch: See a visual guide to common bad spark plug symptoms.- Rough Idle: The engine may shake or vibrate more than usual when you're stopped at a light.
- Poor Acceleration: The vehicle may feel sluggish or hesitant when you press the gas pedal.
- Engine Misfires: You might feel a stumbling or jerking from the engine, especially under load. This can trigger the Check Engine Light.
- Reduced Fuel Economy: You'll find yourself filling up the gas tank more often than you used to.
- Check Engine Light: A flashing or solid check engine light is common. The most frequent codes related to spark plugs are P0300 (random misfire) or P0301-P0306 (misfire on a specific cylinder).
Choosing the Right Aftermarket Spark Plugs
Not all spark plugs are created equal, and the best choice for your Mariner depends on your engine and your budget. The biggest factor in your decision should be whether you have the 4-cylinder (2.3L or 2.5L) or the V6 (3.0L) engine.
V6 Owners: This Is a Major Job
On the 4-cylinder engines, all spark plugs are easily accessible on top of the engine. However, on the 3.0L V6, the rear three spark plugs are located underneath the upper intake manifold. This manifold must be completely removed to access them, making the job significantly more difficult and time-consuming. Because of the high labor involved, it is strongly recommended to use high-quality, long-life Iridium spark plugs to maximize the time between changes. You will also need to replace the intake manifold gaskets.
Brand Tiers & Material Types
For Ford products like your Mariner, sticking close to the original equipment (OEM) specifications is often a good strategy.
- OEM & OEM-Equivalent Brands (Best Bet): Motorcraft is the original factory brand. Autolite is widely considered to be an OEM-equivalent and a reliable choice for Ford engines. You generally can't go wrong with these brands.
- Premium Aftermarket (Excellent Choice): NGK and Denso are top-tier Japanese brands known for exceptional quality and are often used as original equipment by other car manufacturers. Many professional mechanics and enthusiasts prefer NGK plugs for their reliability.
- Standard Aftermarket (Good Value): Bosch and Champion are well-known brands that offer a good balance of price and performance. While perfectly suitable for many applications, some forum users have reported occasional issues with Bosch plugs in Ford engines, so sticking with Motorcraft, Autolite, or NGK is often the safest path.
A Note on Materials: Iridium and Platinum plugs offer the longest life, often lasting up to 100,000 miles. This makes them the ideal choice for the 3.0L V6. For the easier-to-service 4-cylinder engines, less expensive copper or standard platinum plugs are a viable option if you're on a tighter budget.

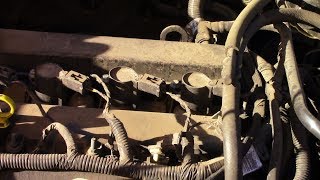

🎬 See this walkthrough for replacing plugs on the 4-cylinder engine.Known Issue: TSB 10-18-10
Ford issued a Technical Service Bulletin (TSB 10-18-10) for some models, warning that radio frequency interference from old or incorrect spark plugs could damage the ignition coils and, in a worst-case scenario, the Powertrain Control Module (PCM). This is an expensive repair. Using high-quality, correctly specified spark plugs and replacing any failing ignition coils is cheap insurance against this problem.
Cost to Replace Spark Plugs (2005-2011 Mercury Mariner)
| Engine | New Aftermarket Parts (per set) | Estimated Shop Labor |
|---|---|---|
| 2.3L / 2.5L I4 | $16 - $85 | $75 - $150 |
| 3.0L V6 | $24 - $125 | $300 - $550+ |
Note: Costs are estimates and can vary based on your location, the specific parts chosen, and the shop's labor rate. The V6 labor cost is much higher due to the need to remove the intake manifold.
Frequently Asked Questions
Should I use Iridium or Platinum plugs?
For the 3.0L V6, absolutely use Iridium plugs. The labor is too intensive to justify using anything with a shorter lifespan. For the 4-cylinder, Iridium is still a great choice for longevity, but double platinum is also a very durable and cost-effective option.
How often should I change the spark plugs on my Mariner?
It depends on the type of plug. Conventional copper plugs should be changed every 30,000 miles. Platinum and Iridium plugs can last much longer, typically between 60,000 and 100,000 miles. Always check your owner's manual for the specific maintenance interval.
Why is the V6 spark plug job so expensive?
To access the three rear spark plugs on the 3.0L V6 engine, a mechanic must remove the entire upper intake manifold, along with various hoses, sensors, and bolts. This process can take several hours, which makes up the bulk of the cost. 🎬 Watch: This video shows the full V6 intake manifold removal process. The front three plugs are easy to access.
Should I replace the ignition coils and wires at the same time?
It's not always required, but it's a good idea, especially on higher-mileage vehicles or if you have the V6. If a coil fails on the rear bank of the V6 after you've just paid to have the plugs changed, you'll have to pay for the same labor all over again. Given the TSB regarding coil and PCM failure, replacing the coils with the plugs is a smart preventative measure. For 4-cylinder models, you can more easily replace coils one at a time as they fail.
Helpful Videos
Technical Specifications
OEM Part Numbers: AGSF-32Y-PC CGSF-22N AGSF-32W-M1 AGSF-22F-CM AYFS-32Y-R
Engine-specific. The 2005-2011 Mercury Mariner used 2.3L I4, 2.5L I4, and 3.0L V6 engines, each requiring a specific spark plug design and gap. Common materials include copper, platinum, and iridium. The 3.0L V6 uses six plugs, while the I4 engines use four.
