2005-2011 Mercury Mariner AWD Universal Joint: A Replacement Guide
If you're hearing clunking noises or feeling vibrations, your Mariner's driveshaft U-joints could be the problem.
- This part is only for All-Wheel Drive (AWD) models of the 2005-2011 Mercury Mariner.
- Original U-joints are 'staked-in' and considered non-serviceable by Ford, making replacement difficult.
- Symptoms include clunking when shifting, vibrations at speed, and cyclical squeaking noises.
- Replacing only the U-joint with an aftermarket part is much cheaper than buying a new OEM driveshaft assembly.
Is This Guide for My Vehicle?
This guide is specifically for the rear driveshaft universal joints on All-Wheel Drive (AWD) models of the 2005-2011 Mercury Mariner. Front-Wheel Drive (FWD) models do not have a rear driveshaft and therefore do not use these parts.
Symptoms of a Failing Universal Joint
A worn-out U-joint will give you clear warning signs. Ignoring them can lead to more damage or even the driveshaft separating from the vehicle, which is extremely dangerous. Listen and feel for these symptoms:
- Clunking Noise: A loud 'clunk' or 'clang' when you shift from Drive to Reverse or vice-versa is a classic sign of a bad U-joint. You might also hear it when you accelerate or decelerate suddenly.
- Vibration: A vibration that you can feel through the floor or seats is a common symptom. This vibration often gets worse at highway speeds and may feel like it's coming from the center of the vehicle.
- Squeaking or Clicking: A repeating squeak or click that changes with your speed can be an early sign of a dry or failing U-joint. This is often most noticeable at lower speeds before road noise drowns it out. 🎬 See this ultimate guide to diagnosing and replacing universal joints.
- Visible Rust Dust: If you look under the vehicle, you might see a fine, orange or reddish dust around the U-joint's bearing caps, which indicates the internal bearings are rusting and failing.
Important: Your Mariner Has Staked-In U-Joints
From the factory, 2005-2011 Mercury Mariners were built with driveshafts that have "staked-in" universal joints. This means the U-joints are crimped into place and are considered non-serviceable by the manufacturer. A dealership will not replace just the U-joint; they will only replace the entire driveshaft assembly at a very high cost. Aftermarket U-joints are designed to replace these staked-in joints, but the installation is more difficult than on other vehicles. It requires special tools like a press and grinder to remove the old joint and prepare the driveshaft for the new one.
🎬 Watch how to properly install a new staked-in U-joint.Choosing the Right Aftermarket U-Joint
Since the original parts were not designed to be replaced, choosing a quality aftermarket U-joint is essential. They are a cost-effective solution compared to buying a whole new driveshaft. Here’s a breakdown of available brands:
- Premium Tier (Best Quality): Dana Spicer Chassis, SKF
Dana Spicer is the original equipment (OE) manufacturer for many vehicles and is widely considered the best in the industry. Their parts are known for durability and perfect fit. SKF is another top-tier brand known for high-quality bearings and driveline components. For maximum durability, a non-greaseable Spicer joint is often recommended as it has a stronger, solid cross design. - Standard Tier (Reliable Aftermarket): Moog
Moog is one of the most well-known aftermarket brands and offers a reliable product. While some professional mechanics have noted inconsistent quality in recent years, they remain a very popular choice for DIY and general repairs. Many of their U-joints are greaseable, which can be a benefit if you plan on doing regular maintenance. - Economy Tier (Value-Focused): GMB
GMB provides a functional and affordable option. While they may not have the same reputation for longevity as premium brands, they are a suitable choice for budget-conscious repairs.
Pro Tip: Greaseable vs. Non-Greaseable
Non-greaseable (sealed) U-joints are generally stronger because the main body isn't drilled with channels for grease. They are designed to be maintenance-free. Greaseable joints can last a long time if serviced regularly, but if you forget to grease them, they can fail sooner than a sealed joint. For a daily driver, a high-quality non-greaseable joint from a brand like Spicer is often the best 'install it and forget it' option.
Cost of Replacing a Mercury Mariner U-Joint
| Part or Service | Estimated Cost |
|---|---|
| Aftermarket U-Joint Part | $18.53 - $50.04 |
| Shop Labor (U-Joint Only) | $250 - $500 |
| OEM Full Driveshaft Assembly | $700 - $1,200+ |
Note: Costs are estimates. Labor costs are higher than average for this job due to the difficulty of replacing staked-in joints. Replacing the full driveshaft is faster for a shop, but the part is much more expensive.
Frequently Asked Questions
Do I have to replace the whole driveshaft?
No. While the dealer will tell you the driveshaft is the only option, a qualified mechanic can replace just the staked-in U-joint with a proper aftermarket kit. This is a much more affordable repair if you can find a shop willing to do the labor.
I have a Front-Wheel Drive (FWD) Mariner. Does this apply to me?
No. This part is only for All-Wheel Drive (AWD) models. FWD vehicles do not have a rear driveshaft or the universal joints associated with it.
Is the clunking in my steering wheel related to this part?
No, that is a different issue. A clunking or looseness felt directly in the steering wheel is often caused by a failing U-joint on the intermediate steering shaft, not the driveshaft. This is another known issue on these vehicles but is a separate repair.
Can I replace a staked-in U-joint myself?

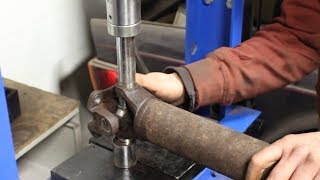

It is possible for an experienced DIY mechanic, but it is not a beginner-level job. 🎬 Watch this walkthrough of a U-joint replacement on a similar vehicle. The process requires force to press out the old joint, a grinder to remove the stakes, and care to not damage the driveshaft yokes. If you are not comfortable with these steps, it is best to leave it to a professional.
Helpful Videos
Technical Specifications
OEM Part Numbers: Note: Ford/Mercury did not sell the U-joint as a separate part. Part numbers are for the entire driveshaft assembly.
Rear Driveshaft Universal Joint for All-Wheel Drive models. Original design is a non-serviceable, staked-in joint.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
