A Guide to the Ignition Knock Sensor on a 2005-2011 Nissan Pathfinder
Understanding the critical role of the knock sensor and why replacing it is a job you only want to do once.
- The knock sensor is located under the intake manifold, making replacement a labor-intensive and expensive job.
- Due to high labor costs, using a high-quality aftermarket brand like Delphi or Beck Arnley is recommended over cheaper options to avoid repeat repairs.
- The wiring sub-harness is a frequent point of failure and should always be replaced at the same time as the sensor.
- A faulty knock sensor can lead to reduced power, poor fuel economy, and potential long-term engine damage if left unaddressed.
Understanding Knock Sensor Failure in Your Pathfinder
The knock sensor on the 4.0L VQ40DE engine in the 2005-2011 Pathfinder is located in a difficult-to-reach spot: under the lower intake manifold, in the valley of the engine. Because of this location, the part is exposed to intense heat cycles. Over time, the sensor's plastic housing and the wiring sub-harness can become brittle and fail, leading to common trouble codes like P0327 (Knock Sensor Circuit Low Input). Often, the wiring harness fails before the sensor itself.
A Labor-Intensive Repair
Replacing the knock sensor is a significant job. A mechanic needs to remove the upper and lower intake manifolds to gain access. This means a repair that involves a relatively inexpensive part can quickly become costly due to 4-6+ hours of shop labor. Because of the high labor cost, it is critical to use a quality replacement part and to replace the wiring sub-harness at the same time to avoid doing the job twice.
Choosing the Right Aftermarket Knock Sensor
When faced with this repair, you have a choice between OEM and a variety of aftermarket brands. Given the labor involved, this is not a part you want to save money on, only to have it fail prematurely.

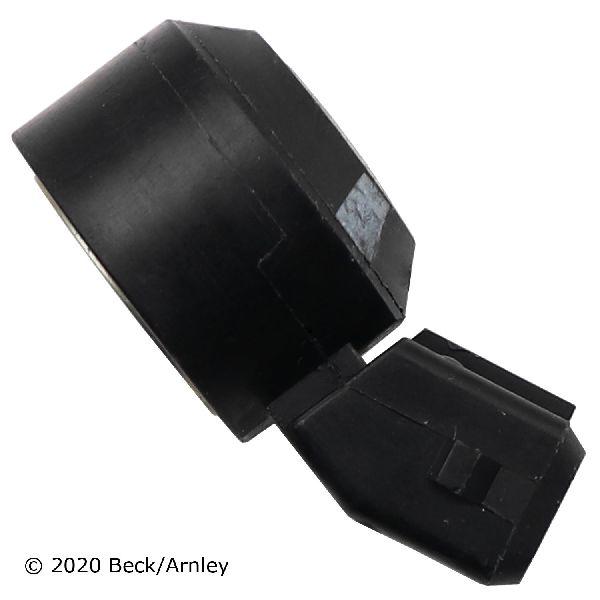

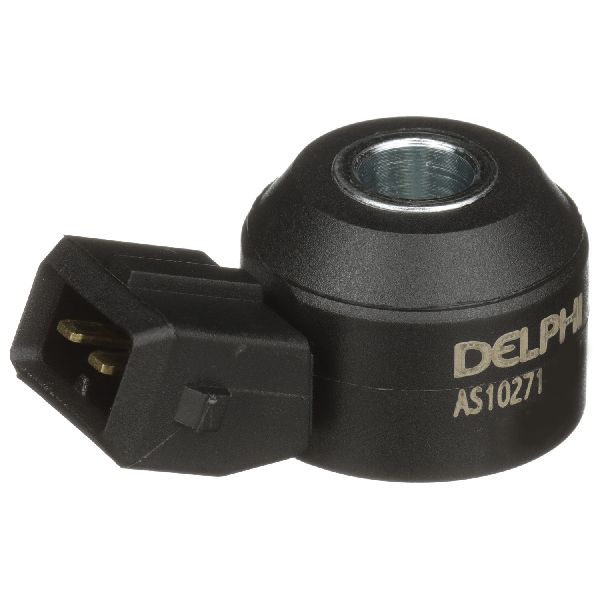

- Premium Aftermarket (e.g., Delphi, Beck Arnley, Standard Ignition): These brands are often considered to be of similar quality to the original equipment. Forum users have reported positive experiences with Beck Arnley and Delphi parts, noting that Beck Arnley often sources parts from the original OEM manufacturer. These are a reliable choice to ensure you won't have to repeat the repair.
- Value Brands (e.g., Global Parts, Walker Products): While more budget-friendly, the quality of these parts can be inconsistent. Given the high cost of labor for this specific job on the Pathfinder, installing a lower-cost sensor is a significant risk. A premature failure would mean paying for the expensive labor all over again.
Pro Tip: Always Replace the Harness
The wiring sub-harness is a common failure point and is often the actual cause of knock sensor codes. It is exposed to the same heat that damages the sensor. It is strongly recommended to replace the sub-harness (Nissan Part No. 24079-EA200 or similar) whenever you replace the knock sensor. Some aftermarket kits include both the sensor and harness.
Cost of Replacing a Knock Sensor on a 2005-2011 Nissan Pathfinder
| Part/Service | Estimated Cost |
|---|---|
| New OEM Sensor | $140 - $205 |
| New Aftermarket Sensor | $43 - $122 |
| Shop Labor | $500 - $800+ |
| Total Professional Repair (Aftermarket Part) | $543 - $922+ |
Frequently Asked Questions
What are the symptoms of a bad knock sensor?
The most common symptom is the Check Engine Light with codes like P0327 or P0328. You may also notice decreased engine power, poor acceleration, reduced fuel economy, and an audible pinging or knocking sound from the engine, especially under load.
Is there a recall for the knock sensor on my Pathfinder?
No, there are no specific recalls for the ignition knock sensor on the 2005-2011 Nissan Pathfinder. Recalls for this vehicle range have typically involved airbag sensors or other components.
Can I replace the knock sensor myself?
This is an advanced DIY repair. It requires removing the throttle body, air intake plenum, and lower intake manifold. While possible for an experienced home mechanic, it is a time-consuming job that requires careful attention to detail, including properly cleaning gasket surfaces and torquing bolts to spec. For most owners, this is a job best left to a professional mechanic.
What is the "knock sensor relocation" hack I've read about?
Some owners, particularly on older Nissan models, try to avoid the difficult replacement job by mounting a new sensor on top of the engine and splicing it into the old wiring. This is not a proper repair. The sensor is designed to detect vibrations at a specific location on the engine block. Relocating it can prevent it from working correctly, leaving your engine unprotected from damaging detonation. This is strongly discouraged.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22060-7S000 22060-JA00A
The 4.0L VQ40DE engine uses one knock sensor. The associated wiring sub-harness, part number 24079-EA200, is a common failure point and should be replaced with the sensor.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
